Is there a service for the instrument cluster Panel on Silverado?

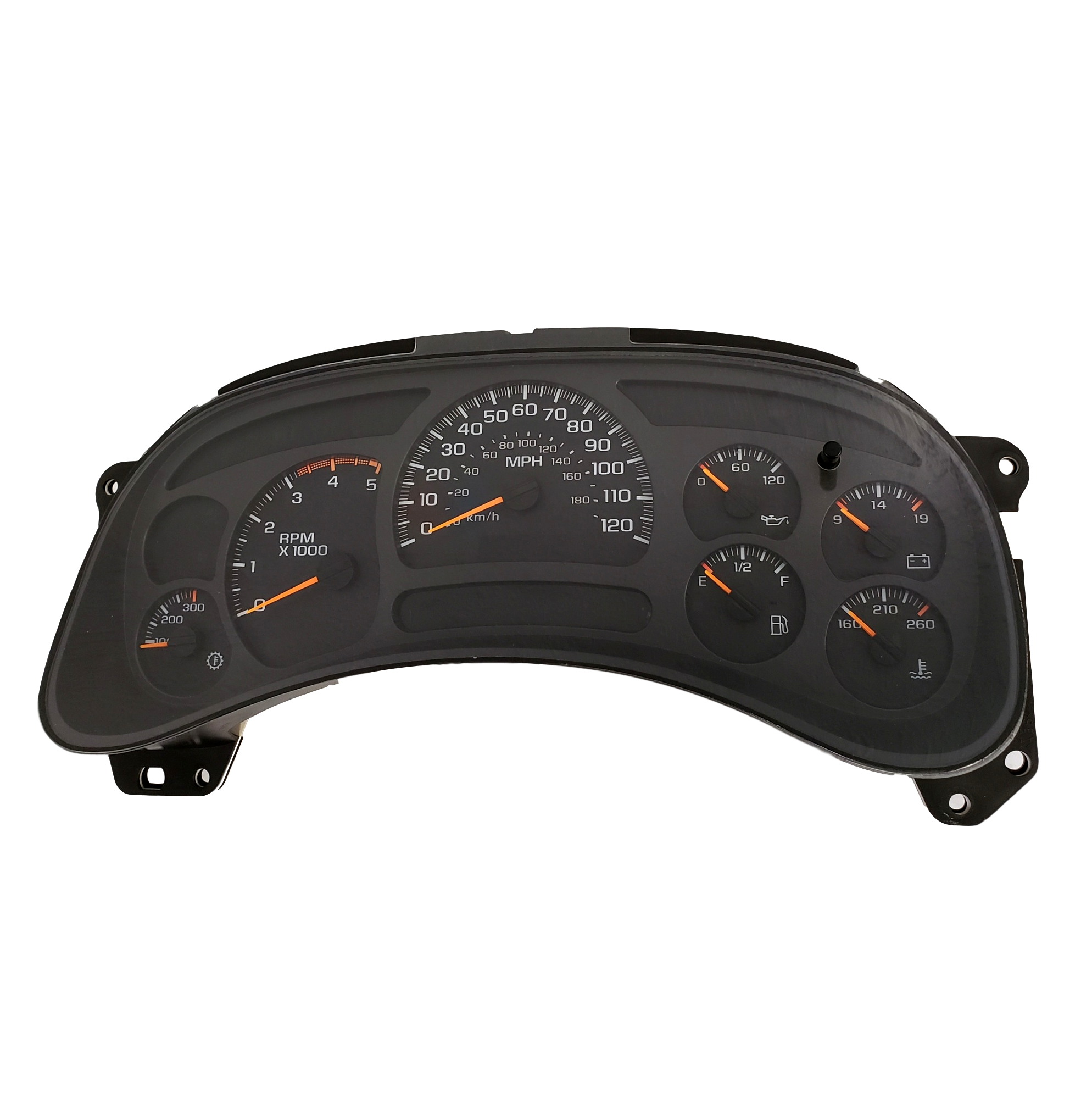

I will send my original part for repair. This is a repair and return service for Chevrolet Silverado (2003-2006) Instrument Cluster Panel (ICP) Repair, years 2003 2004 2005 2006 . When you receive your rebuilt part back from us it will be plug-n-play and not need any additional programming.
How do I remove the instrument cluster?
After pulling off the trim bezel by hand (they have no screws on most models, they just pop off by pulling firmly.) you'll find a few 1/4" screws holding in the instrument cluster. Remove them and you will then be able to angle the instrument cluster out.
What is included in an instrument cluster rebuild?
We rebuild your original instrument cluster which includes replacing all the gauge motors (they have one for each gauge) replacement of all the light bulbs with your choice of standard bulbs or blue LEDs.
What is a repair and return service on a Chevy Silverado?
This is a Repair and Return service of your existing Chevrolet Silverado (2003-2006) Instrument Cluster Panel (ICP) Repair. This services requires that you send us your part for repair. Fast & easy process. Our service is 100% guaranteed or your money back.
Can you repair a instrument cluster?
Sometimes it may be impossible to find an acceptable replacement instrument cluster for your vehicle. In that case, you can get it repaired.
How do you fix a car instrument cluster?
0:151:51Dorman's instrument cluster repair kit - YouTubeYouTubeStart of suggested clipEnd of suggested clipBegin the installation by unhooking the trim panel from the - unscrew the two screws on each side ofMoreBegin the installation by unhooking the trim panel from the - unscrew the two screws on each side of the instrument. Cluster once unhooked unplug the connector harness in the back of the cluster.
How do I reset my Chevy instrument cluster?
Push and release the Sel/reset button button 3 times repeatedly. The instrument cluster begins its self-test. Each successive press of the Sel/reset button initiates a new cycling of all the gauges. To end, turn the ignition switch to OFF, or vehicle speed exceeds 1.5 mph.
How do you replace the instrument cluster on a 2004 Chevy Silverado?
0:103:182004 Chevy Silverado Speedometer Removal - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd next up is you've got four seven millimeter right there right there on this side up there andMoreAnd next up is you've got four seven millimeter right there right there on this side up there and then for the radio you've got two on the left-hand side and then one on the right-hand side.
What causes instrument cluster to stop working?
Overloaded Circuit A faulty voltage regulator, which sends power to the instrument panel in most current vehicles, may be responsible for what causes the instrument cluster to stop working.
What are the common problems of the instrument cluster?
Some of the more common failures include:Erratic or non-functional gauges & inaccurate readings.LCD not Stuck or fluttering needles on gauges.Burned out indicator lights.Burned out/dark spot backlighting.Loss of LCD display or erratic operation (number 8 showing as 0)
How do you reprogram a cluster?
1:197:24How to Reprogram an Odometer after Swapping Clusters - YouTubeYouTubeStart of suggested clipEnd of suggested clipOdometer reading on the original cluster all right so I'm gonna first start by removing this topMoreOdometer reading on the original cluster all right so I'm gonna first start by removing this top cover along with this black bezel. I'm just gonna go over here and press down on these tabs. Here.
Do you have to reprogram an instrument cluster?
In some newer vehicles, you may not need to do anything. The mileage will automatically show up on the new instrument cluster when you install it. It will receive the information from the computer or chip that contains it and display the mileage. In these cars, the instrument cluster is just a display.
Where is the fuse for the instrument cluster?
0:322:12INSTRUMENT CLUSTER FUSE LOCATION (2008 - 2016) - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd then leave the cover straight up on the back side of the cover you will also have a small fuseMoreAnd then leave the cover straight up on the back side of the cover you will also have a small fuse diagram. First fuse you want to check is the fuse.
How long does it take to replace an instrument cluster?
Changing the instrument cluster is a relatively easy process and can be attempted by anyone who is familiar with a basic set of tools. There are a few things that can go wrong but the steps are still considered simple by most mechanics. Put aside roughly an hour to an hour and a half for this job.
How do you remove the dash on a 2004 Chevy Silverado?
0:4312:14How To Remove Dashboard on 1998-2007(classic) Silverado ...YouTubeStart of suggested clipEnd of suggested clipThere just use a small screwdriver to undo. Leave you will also need to pull the panel. Off. AndMoreThere just use a small screwdriver to undo. Leave you will also need to pull the panel. Off. And unscrew the screws on the driver side right here once you have removed the two Phillips head screws.
How do you test an instrument cluster?
0:000:53How to test a Ford Instrument Gauge Cluster - YouTubeYouTubeStart of suggested clipEnd of suggested clipAll you gotta do hold down the trip button when you turn the key on and that puts the cluster in aMoreAll you gotta do hold down the trip button when you turn the key on and that puts the cluster in a test mode. And then the first test will be a sweep.
How to remove a solder cluster?
First you have to gain access to it. Use your finger to separate the clips that hold the cluster together. Pull the backside cover of the cluster off. Figure 5. Removing backside cover. Place the board in a flat surface. Begin to heat up the solder torch. Inspect the solder points for the plug connector on the board.
Does the Silverado 1500 have an instrumental cluster?
The first-generation Cheverolet Silverado 1500 has an un fortunate tendency for their instrumental clusters to fail. Most drivers decide to replace their clusters without realizing there is an alternative, less expensive fix.
Can solder cracks be seen?
A good connection should not have any burn marks or cracks. When you visually inspect the solder you may be able to make out the damage areas, but it should still be noted that many cracks may not be so easily seen.
Step 1: How to Remove a Chevy GM Silverado Instrument Cluster
After pulling off the trim bezel by hand (they have no screws on most models, they just pop off by pulling firmly.) you'll find a few 1/4" screws holding in the instrument cluster. Remove them and you will then be able to angle the instrument cluster out. You may need to tilt the steering wheel down and move the shifter down to make room.
Step 2: Removing the Clear Plastic Lens
Next up you'll need to remove the clear plastic lens. You'll need to use a small tool to pry out on the tabs while pulling up on the lens assembly to remove it. Work your way around one tab at a time, you can insert a pencil or similar item between the lens and the body to hold them apart while working your way around.
Step 3: Removing the Needles the Right Way
Ok now you'll need a few pieces of masking tape and a pen or marker. Rotate all the needles counter clockwise gently until the come to a stop, they should all stop at or just below the zero marks. Now make a pen mark on the tape just below the top of each needle.
Step 4: Needle Removal
Now that you've made your calibration marks firmly rotate each needle further counter clockwise a few inches. You'll be rotating the needle around the motor's shaft so there will be some resistance especially at first.
Step 5: Removing the Back Case and Circuit Board
Now pry outwards on the tabs of the back case to remove it, similar to how you removed the front lens.
Step 6: Motor De-soldering and Tools You'll Need
Ok you're now ready to remove the old gm stepper motors and replace them with new ones.
Step 7: Replacing the Old Stepper Motors With Your New Ones
Now you simply need to pop your new GM stepper motors where the old ones were, they will only install in one direction so you don't have to worry about mixing them up or getting it wrong. Make sure you get the correct part number when you buy your stepper motors (see link above for correct parts).
Description
This is a repair and return service for Chevrolet Silverado (2003-2006) Instrument Cluster Panel (ICP) Repair, years 2003 2004 2005 2006 . When you receive your rebuilt part back from us it will be plug-n-play and not need any additional programming.
Will this service fix my problems?
A full diagnostic check should first be performed to eliminate all other possible causes for your symptoms, even if the symptoms match those specified on the common fault description. If you send a good working unit because of misdiagnosis and after we test the unit and find no issue/faults, then you will only be responsible for a $39.99 testing fee and shipping. IMPORTANT! If you are not sure that this part is the cause of the fault then we recommend that you do not go ahead with this purchase and instead seek further professional advice and diagnosis..
