How do you repair a mortise joint?
To repair a loose mortise and tenon joint, it is best if you can completely separate the two pieces. Try and pull them apart with your hands, or use a small rubber mallet to gently knock them apart. Use a scraper or light sandpaper to remove all of the old glue from both the mortise and the tenon.
Do you glue mortise and tenon joints?
The one method you should not use when gluing the mortise and tenon joint is brushing glue only on the tenon faces and inserting the tenon into the mortise. As you can see in the video, nearly all the glue will be forced out of the joint, making for very little adhesion and a real mess.
How do you reinforce a mortise and tenon joint?
1:052:10An Excerpt from "Make Better Mortise-&-Tenon Joints" - YouTubeYouTubeStart of suggested clipEnd of suggested clipNon threw Tenon's can also be reinforced by wedging. This type of joint is called a fox wedge dennahMoreNon threw Tenon's can also be reinforced by wedging. This type of joint is called a fox wedge dennah. This forms a very strong joint that can't come apart.
How do you fix a broken wood joint?
The simplest solution is usually the best one, in repairs as well as in refinishing. When you discover a loose joint, first make sure the screws (if any) are tight; then try to repair it with an adhesive: plastic resin, epoxy, or resorcinol. Force the adhesive into the loose joint with a glue injector.
How thick should tenons be?
Tenon thickness: A tenon's thickness should be one-third the thickness of the stock being mortised. So, if you are joining two pieces of 3/4″material, the tenon should be ¼” thick (1/3 of ¾). If you are joining a 7/8″-thick apron to a 1-1/2″-thick table leg, the tenon should be 1/2″ thick (1/3 of 1-1/2).
What is the strongest wood joint?
Mortise and Tenon Woodworking Joints One of the strongest woodworking joints is the mortise and tenon joint. This joint is simple and strong. Woodworkers have used it for many years.
How tight should a mortise and tenon joint be?
Tenons too tight in their mortises can cause splits, as shown. A good mortise-and-tenon joint should go together easily by hand, but not be loose enough to fall apart. Avoid too-thin mortise walls, which split easily, by never making them less than 1⁄ 4 " thick.
What makes mortise and tenon strong?
Mortise and tenon joints are strong and stable joints that can be used in many projects. They furnish a strong outcome and connect by either gluing or locking into place.
What comes first mortise or tenon?
To make a mortise and tenon joint, always cut the mortise first because it's much easier to cut the tenon to fit an existing mortise than the other way around.
Can you repair snapped wood?
Superglue or wood-filler epoxy resin are both great options for repairing wood furniture that has slight cracks, small breaks, or pieces that have fallen off. These materials work to securely bond the wood pieces together.
Can you glue wood back together?
But regular wood glue is the best wood glue for raw wood-to-wood joinery. Most wood glues are a type of polyvinyl acetate (PVA wood glue). Also sometimes called carpenter's glue, wood glue is formulated to penetrate wood fibers, making glue joints that are stronger than the wood itself.
Can you Reglue a wood joint?
Three methods are used: drip glue at the edges of the joints and hope it runs into them; drill holes into the joints and insert the glue through a syringe; and pull the joints open just enough to expose small parts of the tenons or dowels and apply glue to them.
How tight should a mortise and tenon joint be?
Tenons too tight in their mortises can cause splits, as shown. A good mortise-and-tenon joint should go together easily by hand, but not be loose enough to fall apart. Avoid too-thin mortise walls, which split easily, by never making them less than 1⁄ 4 " thick.
What are the disadvantages of a mortise and tenon joint?
Mortise and Tenon Joint DisadvantagesThey require precision to create.The joint can be weakened if not cut correctly.They can be difficult to align during assembly.The joint can be tricky to disassemble if needed.
Why is the mortise and tenon joint the strongest?
The mortise and tenon joint is another one of the strongest and most appealing woodwork joints able to be made because of its flush fitting design. Like the dovetail joint this woodwork joint can be difficult to properly construct but it is incredibly strong and aesthetically pleasing if constructed well.
Can I use epoxy glue on wood?
Epoxy glue for wood is valued by DIYers and professionals alike for its exceptional strength and long-lasting adhesion. It creates durable, waterproof seals that can easily be cleaned, sanded and drilled. These qualities make it ideal for use on wooden furniture.
Saturday, February 14, 2009

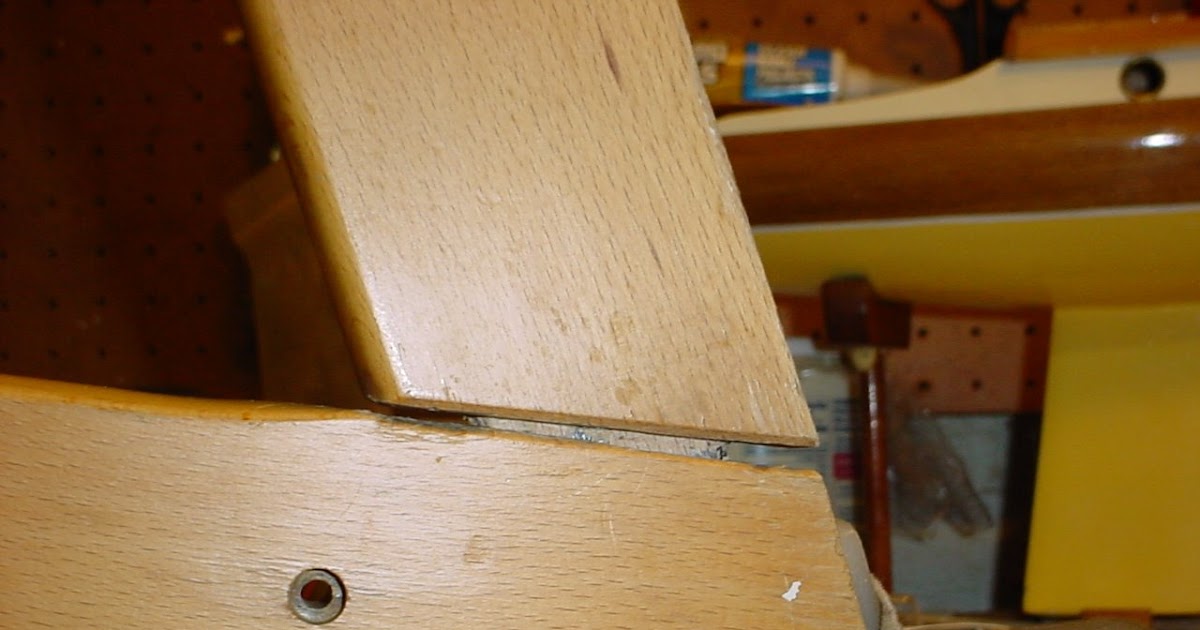

The mortise and tenon joint is a strong and reliable way to keep two pieces of wood together. The Stokke Tripp Trapp chair uses them to keep the angled side pieces connected to the foot pieces. All of our kids have used Tripp Trapps, or similar, chairs from the time they could sit up right long enough to eat (and were interested in solid food).
Fixing a Mortise and Tenon Joint
The mortise and tenon joint is a strong and reliable way to keep two pieces of wood together. The Stokke Tripp Trapp chair uses them to keep the angled side pieces connected to the foot pieces. All of our kids have used Tripp Trapps, or similar, chairs from the time they could sit up right long enough to eat (and were interested in solid food).
