[Solution] How to Repair a Broken Window Crank
- Remove the attachment screw on the base of the handle using a screwdriver.
- Grasp the crank stud with a pair of pliers and turn it clockwise to fully open the window.
- Loosen the screws securing the trim on the casement cover using a screwdriver or pry off trim...
- Position the new crank so that its screw holes align...
Full Answer
How do you fix a window crank?
- Unlock the window and inspect how it operates.
- Adjust the position of the hinges by sliding them slightly in one direction or the other based on your observation of the operation of the window.
- Close the window and lock it.
- Unlock the window and open it.
- Lock the window.
How to clean and lubricate a casement window crank?
- Poor lubrication in the crank mechanism
- Debris in the track along which the control arm slides
- Loose screws
How do you replace crank out windows?
- Remove the window’s screen, if applicable.
- Open the window sash to approximately halfway, so that the operator crank is in the vertical position.
- Remove the operator handle by loosening the set screw at the base using an Allen wrench. ...
- Detach the plastic operator base cover, if applicable. ...
How to remove and install a crank?
What are the best ways to protect your hands when removing a bike crank?
- Use proper gear! Wear work gloves when working on your bike crank. ...
- Set the cogs. Shift the gear to the biggest cog to stretch the chain fully. ...
- Ask the help of an expert.
Can window cranks be repaired?
Not all cranks need a replacement – the Doctors can simply repair your existing cranks when damage is minimal.
How do you fix a crank out window?
1:567:20Window Crank Repair Trick (for cranks that slip out when closing a window)YouTubeStart of suggested clipEnd of suggested clipBut if you can get something a clothes hanger or some piece of metal through that hole. And then we'MoreBut if you can get something a clothes hanger or some piece of metal through that hole. And then we're gonna wrap it. Around.
How do you replace a crank assembly on a window?
0:099:07Andersen window crank replacement / Window crank repair - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo we're going to go ahead and replace this and show you how to do it but the thing with theseMoreSo we're going to go ahead and replace this and show you how to do it but the thing with these windows is you can see here. There is a piece of wood this needs to come off unfortunately.
Why is my crank window not closing?
If your casement windows won't open or close even when the window crank is turning, this typically means the gears have been stripped. Depending on the type of mechanism your casement window has, you may be able to remove the handle, unscrew the outer casing and inspect the operator assembly.
How do you fix a window winder?
If nothing appears to be wrong with the threading or the splines, try adding some oil to the mechanism, tightening all the screws, and trying it again. If not, take the winder apart, use a degreaser to clean the components, add more grease, and put it back together.
How do you replace a double arm window crank?
0:372:21Replace Casement Dual-Arm Operators-Prior to 2006 - YouTubeYouTubeStart of suggested clipEnd of suggested clipSlide the edge under the wood operator. Cover and pry it up equally on each side until it's free ifMoreSlide the edge under the wood operator. Cover and pry it up equally on each side until it's free if nails remain in the operator. Cover pull them through the bottom to prevent damage to the operator.
How do you reattach a window crank arm?
0:181:18How To Replace the Crank Handle and Cover on Custom ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipNow position the replacement cover over the operator. And press it until it snaps into place thenMoreNow position the replacement cover over the operator. And press it until it snaps into place then slide the new handle onto the splines on the operator.
How do you fix a casement window that won't close all the way?
0:071:14How to adjust a casement sash to close properly - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe sash on a casement in case the casement is having trouble shutting all the way the first thingMoreThe sash on a casement in case the casement is having trouble shutting all the way the first thing you need is you need a small wrench a thin. Small wrench that will fit the nut underneath. The hinge.
How do you put a casement window back on track?
0:546:00How To Put A Window Back In Track - YouTubeYouTubeStart of suggested clipEnd of suggested clipTurn the old window upside. Down. All right Eileen the window up against the wall. And what I'mMoreTurn the old window upside. Down. All right Eileen the window up against the wall. And what I'm gonna do is bump. This little cleat out just a Skeeter leg. Take your screw all the way out.
How do you fix a casement window that sticks?
0:141:56How to Fix a Sticking or Sticky Window - YouTubeYouTubeStart of suggested clipEnd of suggested clipPut the wedge in give it a little tap. That'll hold it secure now I have to identify where theMorePut the wedge in give it a little tap. That'll hold it secure now I have to identify where the problem was so I have a look at the windowsill. Here.
How to remove gearbox trim?
Loosen the setscrew that secures the handle to the shaft. Remove the plastic cover to get to the screws. You may need to use the pry bar to remove the trim framed around the gearbox. Do this carefully as not to break the trim. Check for any small nails when removing the trim. Remove the screws and the handle.
How to open a window handle that won't open?
You will first need to open the window fully, if the handle will not open it use a pair of pliers. Work from the outside for more control. Remove any screws from the arm that attach it to the track. If there are no screws, the arm will slide out.
What to do if you detect an improper movement?
If you detect an improper movement or any worn areas, you will need to replace the unit. Have someone help you close the window and engage the lock while you find a replacement part. Take the old part to a window supply or hardware store. The experts there can provide you with the correct part.
Why does my window crank spin when I turn it?
If a window crank just spins when it is turned, that typically indicates a stripped gear in the crank mechanism. Cranking mechanisms that are stripped need to be taken out and replaced to correct the problem. A stripped gear can mean just a broken handle or a damaged operator mechanism. You can repair a handle crank mechanism in your home by first ...
Can you replace a crank handle with a new one?
Replace the crank handle with a new one if the threads are damaged on the handle. A power drill can be used instead of the screwdriver to remove the screws from the casement cover and the crank operator.
Before you replace the entire window, check to see if the problem is with the casement window hardware. You can actually fix a window crank in just five easy steps
Before you replace the entire window, check to see if the problem is with the casement window hardware. You can actually fix a window crank in just five easy steps.
Introduction
Don't replace your casement window if it won't open or shut completely. You can usually replace a bad crank in an hour, and have it working smoothly again. We show you how here.
Remove the old crank and install the new one: Inspect the old crank for damage
Check out the casement window hardware before you jump into this project. Inspect the old crank for wear. Worn and missing splines on the crank stud, stripped or broken gears, and worn-out crank arms mean you have to replace the entire crank operator.
Release the window

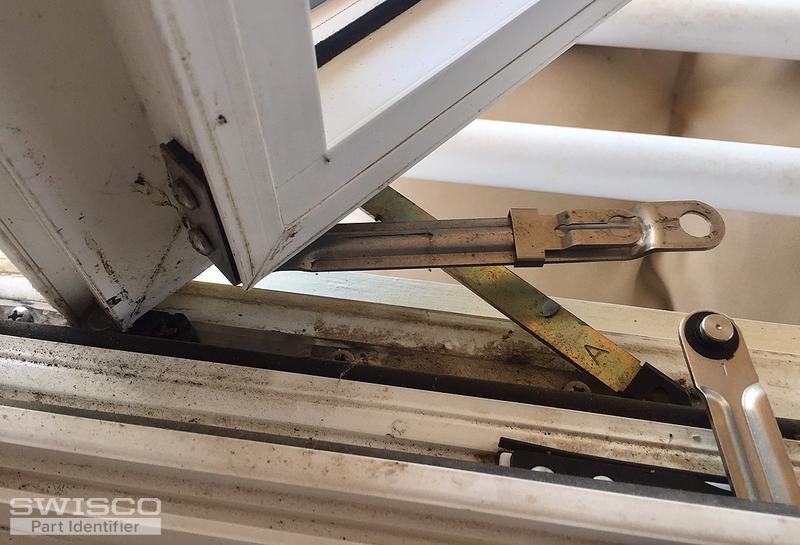

Open the window until the crank arm guide bushing aligns with the notch in the guide track (use a locking pliers for a crank handle and push out on the window to help it open). Press down on the arm to free the bushing from the track, and then push out the window until the bushing clears the track.

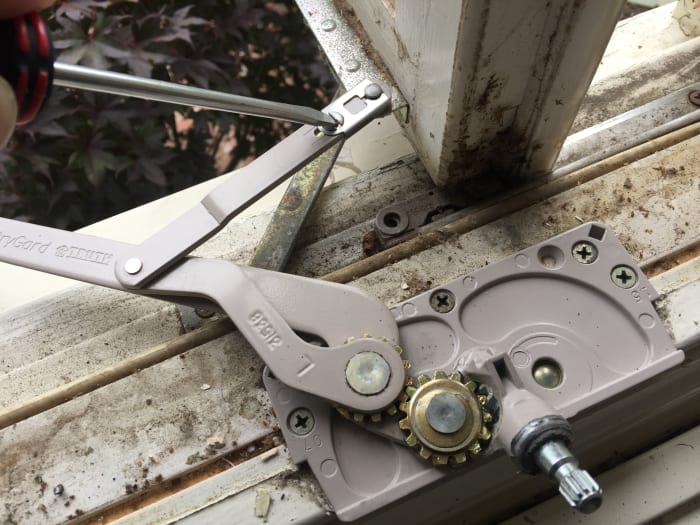

Remove the trim and crank
Back out the trim screws and lift the casement cover off the window jamb. Remove all crank mounting screws and lift off the crank. Replace rusted or bent trim screws.
Install the new crank
Line up the new crank with the old holes. The old screw holes are often stripped. If so, stick a toothpick or two in them as filler and drive the screws. Then reattach the crank arm and casement cover.
