Brake Master Cylinder Repair
- Prepare. Park your car on a flat surface. ...
- Remove the Master Cylinder. To remove the brake master cylinder, use the line wrench to loosen the brake lines and remove them. ...
- Disassemble. Take the brake master cylinder to your workbench for the rest of the brake master cylinder repair. ...
- Assemble. ...
- Bleed the Brakes. ...
- Step 1: Remove the master cylinder. ...
- Step 2: Remove the rubber boot. ...
- Step 3: Remove the circlip. ...
- Step 4: Take out the piston and spring. ...
- Step 5: Check and clean the cylinder. ...

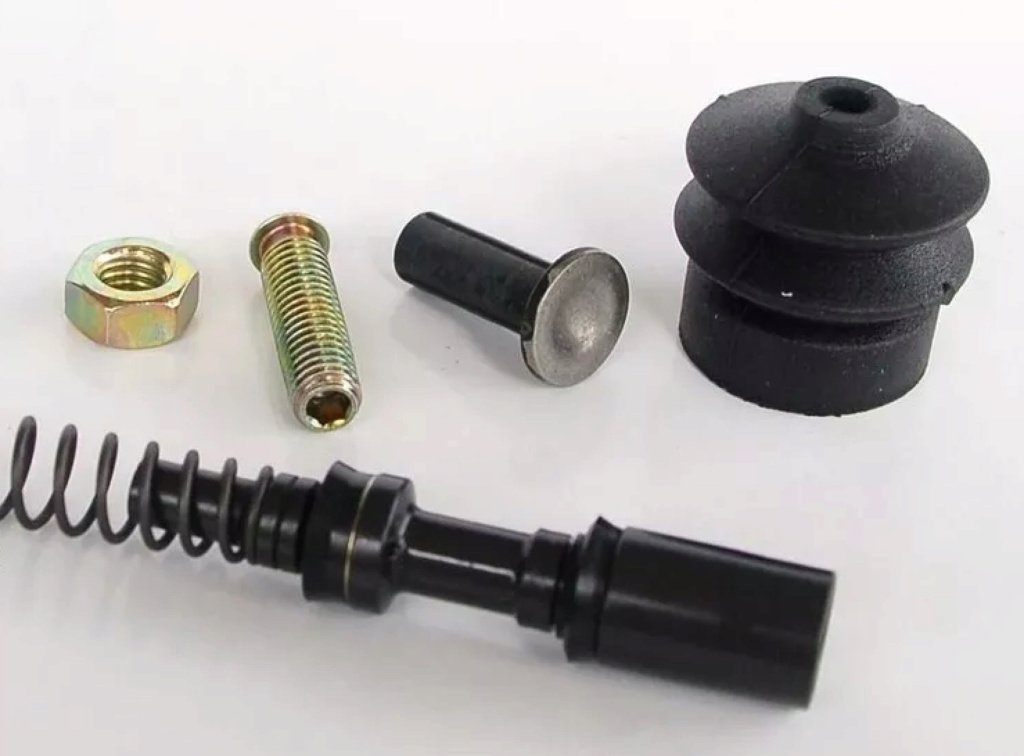

- Step 6: Fit the new seals to the new piston. ...
- Step 7: Fit the new spring.
How to diagnose and replace a bad master cylinder?
How to Diagnose and Replace a Bad Master Cylinder The first step of changing a master cylinder is giving yourself access to it. Use a wrench or socket with extension to remove the two nuts securing the master cylinder to the firewall or booster. Using a flare nut or line wrench, loosen and remove the brake lines from the master cylinder ports.
How much does it cost to replace a master cylinder?
When discussing the cost of replacing a master cylinder, the most common problem with this is that there can be various factors which will determine how much it will cost to replace it. In general, owners must spend an average of around $400 to $500 in order for them to get a new one and have their clutch system fixed.
When to replace master cylinder?
When to replace the master cylinder?
- External fluid leaks. There should be no fluid visible on the external surfaces of any portion of the master cylinder or the plastic fluid reservoir.
- Low, slowly falling, or spongy brake pedal. ...
- Discolored brake fluid. ...
- Warning lights on the dash. ...
How do you rebuild a brake master cylinder?
What tools do I need?
- Haynes manual
- Screwdrivers
- Spanners
- Circlip pliers (you might get by with a pick and screwdriver, but it’s more difficult)
- Possibly Allen keys
- Right-angle pick
- Aerosol can of brake cleaner
- Protective gloves
- Brake fluid
- Replacement copper washers for the banjo bolt
How do you fix a broken master cylinder?
1:323:54How to Fix Sinking Brake Pedal in Your Car (Brake Master Cylinder)YouTubeStart of suggested clipEnd of suggested clipThen we take the two bolts off that hold the master cylinder on. And off it comes. Now then we getMoreThen we take the two bolts off that hold the master cylinder on. And off it comes. Now then we get the new master cylinder and bolt that on put the two bolts on tight that hold it in place.
How do you fix a brake master?
1:123:58How To: Replace A Brake Master Cylinder - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf your vehicle has anti-lock brakes you'll also want to disconnect the brake lines from theMoreIf your vehicle has anti-lock brakes you'll also want to disconnect the brake lines from the hydraulic control unit or hcu. And remove this component. So it's out of the way inspect.
How do I know if my master cylinder is damaged?
The Brake Pedal Behaves Abnormally If it malfunctions, the cylinder will not distribute pressure properly, and the pedal will be affected. When you continue using your car will a bad cylinder, it will wear out and start leaking. The pedal will also feel spongy, mushy, and may sink far down when pressed.
How do you replace a master cylinder without bleeding brakes?
6:1214:31How to replace a master cylinder without bleeding the system ...YouTubeStart of suggested clipEnd of suggested clipUp underneath the brake lines on the other. And side once we have both of the nuts off the back ofMoreUp underneath the brake lines on the other. And side once we have both of the nuts off the back of the master cylinder we're gonna remove lines from the side of the master.
Can a master cylinder be fixed?
The most common necessary brake master cylinder repair is fixing a leak in the seals. This is typically a brake master cylinder repair that will become necessary after a few years when the seals wear out. It's not a difficult repair, although the details might vary depending on the make and model of your vehicle.
Are master cylinders repairable?
You may also just need your system flushed, meaning they empty the old fluid and replace it with fresh new fluid. This service typically ranges from about $70 to $100. For master cylinder repair, which usually means replacing the seals, you can expect to pay between $200 and $300.
What causes master cylinder failure?
Mechanical issues include misaligned or corroded brake calipers, improperly installed wheel bearings, or incorrect push rod sizing. On the hydraulic side of things, brake drag may stem from excessive heat, faulty flex hoses, or problems with the master cylinder piston.
How do you check a master cylinder?
Use a screwdriver to press and hold the plunger in the rear of the master cylinder. The plunger should be very firm, if not immovable, past a few millimeters. If the plunger keeps moving in, this indicates a fault of at least one of the internal seals.
Can a master cylinder fail without leaking?
Yes master cylinders can fail without leakage, the clutch master cylinder has a piston inside and there are separate channels for hi-pressure line and return(low pressure) line and their location in the cylinder differs for manufacturers.
What happens if you don't bleed a master cylinder?
To put it simply, bleeding the brakes is the process of pushing fluid through a hydraulic brake system to ensure all air bubbles are removed. If brakes aren't bled and air bubbles are trapped within the brake fluid, hydraulic pressure is greatly reduced, making the brakes less efficient.
Do you have to bleed all four brakes after changing master cylinder?
During brake bleeding, the master-cylinder cap should be left unscrewed but still in place atop the reservoir. Each brake must be bled in the correct sequence. Generally, you bleed the brake most distant from the master cylinder first, but some cars require a different order.
Do you have to bleed a master cylinder?
The master cylinder does not automatically bleed the air out of the piston when you fill it, this has to be performed “on the bench”, in other words, out of the vehicle. You can bleed it in the car, but it takes longer and requires two people- one to watch for bubbles and one to push the brake pedal.
How to remove master cylinder?
To remove the brake master cylinder, use the line wrench to loosen the brake lines and remove them. This tool will do a better job than a regular wrench. When you’ve done that, locate the bolts holding the master cylinder to the body of the vehicle. You’ll need to use your socket wrench to loosen and remove these.
How to access pistons on master cylinder?
To access the pistons, valve assemblies and the seals for the brake master cylinder repair, tap the cylinder on your workbench and they will slide out. Keep them safe along with all the springs.
How to get brake fluid out of a car?
Step 1 - Prepare. Park your car on a flat surface. Make sure the vehicle is in park with the emergency brake on. Spread layers of old newspaper under the engine to catch any brake fluid that drips. Use a brake fluid removal tool to take out the fluid from the reservoir until it is empty.
How to tighten master cylinder?
Mount the new master cylinder in the car. Install the brake lines prior to the mounting nuts so you can move the part around to start the fittings. Tighten the lines using a flare nut or line wrench. Tighten the bolts to the specified torque.
How to check master cylinder for leaks?
Check the fluid level in the master cylinder first when any brake issues develop. If the reservoir is full, you're not experiencing an external leak. If your foot slowly sinks to the floor with normal pressure on the brake pedal, the master cylinder is leaking internally. To diagnose a clutch master, clamp the rubber fluid line near the slave and press the clutch pedal. If the master cylinder is good, the pedal won't move.
What to do if brake fluid contacts paint?
If brake fluid does contact your vehicle's paint, rinse it immediately with water. 5. Some vehicles, like Hondas, require you to transfer the fluid reservoir to the new component. It's easy on this Honda—all you have to do is loosen the clamp to remove the reservoir.
How to diagnose clutch master?
To diagnose a clutch master, clamp the rubber fluid line near the slave and press the clutch pedal. If the master cylinder is good, the pedal won't move.
How to remove master cylinder from firewall?
Use a wrench or socket with extension to remove the two nuts securing the master cylinder to the firewall or booster.
Is all brake fluid compatible?
Not all brake fluids are compatible, so it's important to have the right type. The first step of changing a master cylinder is giving yourself access to it. Sometimes this is straightforward, like on this Ford Ranger, and other times you may need to move some components out of your way.
What Is The Master Cylinder?
The brake master cylinder is a component in your car’s braking system that drives the pressure generated by the brake pedal to the braking mechanism at your vehicles’ wheels. It’s essentially the heart of your car’s brake system.
How Much Does A Master Cylinder Replacement Cost?
The typical cost for a brake master cylinder replacement can be anywhere between $230 to $750. Your vehicle’s make and model will drive most of this cost variation, as it dictates the costs of the parts needed.
Where Is The Master Cylinder Found?
For manual brakes, the master cylinder is attached directly to the firewall and linked to the brake pedal.
Why does my brake pedal not spring back?
The brake pedal may also not spring back smoothly into place after you remove your foot. This is usually due to an issue with your brake fluid pressure – which is likely caused by a bad brake master cylinder. As a general rule, take your car to the mechanic whenever your brake pedal suddenly starts acting differently.
How does hydraulic pressure work?
When you press down on the brake pedal, that force pushes a piston through the brake cylinder, converting the force into hydraulic pressure. This pressure pumps hydraulic fluid through the brake lines, transmitting pressure to a secondary cylinder at each wheel’s braking mechanism.
What is the purpose of the secondary cylinders in a brake caliper?
The secondary cylinders drive the caliper piston to engage the brake calipers in disc brakes ( the wheel cylinder in drum brakes). This action then goes on to stop the wheel.
Why are my brakes not performing?
If your brakes aren’t performing up to par, there’ s a chance that a rubber seal in the master cylinder has worn out and broken down. This introduces a contaminant into the brake fluid and darkens its color.
