First, you'll need to remove the old fuel pump in this order:
- Disconnect the negative battery cable.
- Disconnect the fuel tank hose at the fuel pump and plug the hose with a bolt or wooden dowel to keep any fuel from flowing out. ...
- Carefully examine the old fuel hose; if it is frayed or cracked, replace it with new fuel line hose.
- Disconnect the outlet line to the carburetor. Use a wrench on the fuel pump fitting and another on the line nut.
- Remove the two attaching bolts and extract the old fuel pump. Clean off any old gasket material from the mounting surface of the engine using a shop rag.
How much should it cost to replace my fuel pump?
Fuel Pump Replacement Cost. The actual cost of replacing a fuel pump depends on several factors. The parts cost of a fuel pump is usually between $75 and $250, depending on the vehicle. If you are replacing the fuel pump yourself, beyond this it is just the cost of your time. Generally speaking, replacing a fuel pump is considered an ...
How easy is it to replace a fuel pump?
Using the Fuel Pressure Regulator
- Use a wrench to disconnect the battery cable that is marked negative. ...
- Reach the engine’s top area to find the fuel rail where the regulator can be located.
- Located the vacuum hose mounted on the regulator’s top part. ...
- Bring a hand-operated/ manual vacuum pump and connect it to the regulator’s top.
How to replace a high pressure fuel pump?
- Verify the new fuel pump comes with a new o-ring before installing. ...
- Make sure the auxiliary vacuum pump (where fuel pump mounts to) is clean so there is a tight unobstructed fit with fuel pump o-ring.
- Install the new BMW high pressure fuel pump. ...
Is replacing a fuel pump expensive?
The parts required for replacing a fuel pump can vary according to the model and build of the car. If your fuel pump parts are expensive, then replacement cost will increase. If you have a car that does not require a high end fuel pump to run, then replacing it will be inexpensive.
Can a mechanical fuel pump be repaired?
Your vehicle's mechanical fuel pump is a fairly reliable piece of low-tech equipment. But like any of your car's components, mechanical parts can wear down or break. Fortunately, replacing a broken fuel pump is a fairly simple task that you can accomplish at home in about an hour or two.

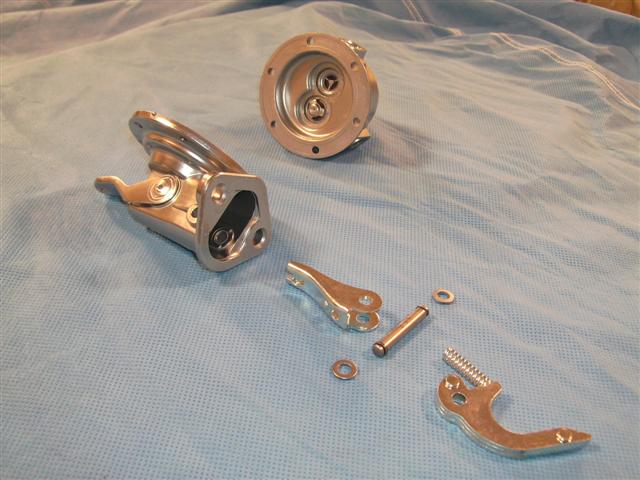

How do you rebuild a mechanical fuel pump?
3:005:12How To Rebuild A Mechanical Fuel Pump | Motorhead SweetheartsYouTubeStart of suggested clipEnd of suggested clipNow we're taking out these two bolts to separate the valve body from the. Vehicle. Now it's time toMoreNow we're taking out these two bolts to separate the valve body from the. Vehicle. Now it's time to rebuild the valve body the items they have to replace are the rubber valves. And the springs.
Can u rebuild a fuel pump?
All pumps are tested to meet or exceed the original manufacturer's specs and are guaranteed against defective materials or workmanship to work properly every time. Egge can rebuild any AC or Carter style mechanical fuel pumps that screw together.
Can a mechanical fuel pump be cleaned?
Do not remove it unless you have a replacement, as taking it out will probably destroy it. The seal on the SU is held in place by a steel cup above it. Hook out with a screwdriver and pull out the seal. If you clean the pump with the seal in place, use only clean petrol.
How do you bench test a mechanical fuel pump?
0:351:25Bench testing a Mechanical fuel pump - YouTubeYouTubeStart of suggested clipEnd of suggested clipGet this thing on there. Really this vacuum line is slightly smaller than what it's supposed to beMoreGet this thing on there. Really this vacuum line is slightly smaller than what it's supposed to be for this but anyways we put it on an inline exact same test we'll just pump up the vacuum. Pressure.
How do you rebuild a fuel pump assembly?
8:5617:01How To Rebuild the Fuel Pump on a Polaris RZR/Ranger - YouTubeYouTubeStart of suggested clipEnd of suggested clipFacing this corner and then I'm going to press this into. Place. Then you're going to want to checkMoreFacing this corner and then I'm going to press this into. Place. Then you're going to want to check and make sure all four tabs are locked in make sure this ring on the top is still tight.
How do you fix a fuel pump without replacing it?
How to fix a fuel pump without replacing it?Use Fuel Pressure Gauge. This can be one of the best alternative solutions when you are concerned with the various ways to deal with a bad fuel pump to start your car. ... Applying Some External Pressure. ... Maintaining The Engine's Heat.How to Fix a Fuel Pump Without Replacing It? - UsedCars.co.kehttps://www.usedcars.co.ke › blog › how-to-fix-a-fuel-pu...https://www.usedcars.co.ke › blog › how-to-fix-a-fuel-pu...Search for: How do you fix a fuel pump without replacing it?
How do you temporarily fix a fuel pump?
2:414:17How to Fix Your Car (Briefly) with a HAMMER!!! - YouTubeYouTubeStart of suggested clipEnd of suggested clipFree up the bearings in the fuel pump motor. Inside this assembly. That's why when you turn the keyMoreFree up the bearings in the fuel pump motor. Inside this assembly. That's why when you turn the key back on you get fuel pressure again then it starts.How to Fix Your Car (Briefly) with a HAMMER!!! - YouTubehttps://www.youtube.com › watchhttps://www.youtube.com › watchSearch for: How do you temporarily fix a fuel pump?
What causes mechanical fuel pump failure?
Once the fuel has been ruled out as a potential cause of the problem, the most common fuel pump issues include a ruptured or leaky diaphragm, failed check valves, and a faulty diaphragm spring.Troubleshooting Mechanical Fuel Pumps - Technician.Academyhttps://technician.academy › troubleshooting-mechanical-f...https://technician.academy › troubleshooting-mechanical-f...Search for: What causes mechanical fuel pump failure?
What causes mechanical fuel pump failure?
Once the fuel has been ruled out as a potential cause of the problem, the most common fuel pump issues include a ruptured or leaky diaphragm, failed check valves, and a faulty diaphragm spring.
How do I know if my mechanical fuel pump is bad?
Is My Fuel Pump Going Bad? Here Are 8 Signs It Is!Fuel Tank Noise. A damaged fuel pump might make a loud, whining sound that you'll hear from your gas tank. ... Difficult Starts. ... Sputtering Engine. ... The Actual Stall. ... Power Loss. ... Surging Power. ... Lower Fuel Efficiency. ... Dead Engine.
Should I grease a mechanical fuel pump?
I would not recommend using any lube on the fuel pump parts due to the fact that that area is part of the oil system and will get soaked with engine oil, and wash lumps of lube into the oil pan and contaminate the oil. Therefore, I recommend that you apply some of engine oil...
How do you service a fuel pump?
2:013:58How To Clean Your Motorcycle Fuel Pump | MC Garage - YouTubeYouTubeStart of suggested clipEnd of suggested clipParts inside the pump. Take the strainer off the pump. And hit it with contact cleaner from theMoreParts inside the pump. Take the strainer off the pump. And hit it with contact cleaner from the inside try to push the sediment. Out and not further into the strainer.
How long does it take to replace a fuel pump?
Fortunately, replacing a broken fuel pump is a fairly simple task that you can accomplish at home in about an hour or two.
How to connect fuel pump to carburetor?
Connect the line to the fuel pump, and then reattach the other end to the carburetor. Use a wrench to hold the fuel pump fitting and tighten the line nut with another wrench.
How to fix a leaky gas tank?
Use a wrench to hold the fuel pump fitting and tighten the line nut with another wrench. Attach the fuel inlet hose from the gas tank and the vapor-return hose. Tighten all clamps. Reconnect the battery ground cable, start the vehicle, and check for leaks. Once you've inspected your work and made sure it's free of leaks, your vehicle is good to go.
How to keep gas from flowing out of a car?
Disconnect the fuel tank hose at the fuel pump and plug the hose with a bolt or wooden dowel to keep any fuel from flowing out. Also, disconnect the vapor-return hose if the vehicle is equipped with one. Be sure to wipe up any gas that spills.
What to do if your fuel line is cracked?
Carefully examine the old fuel hose; if it is frayed or cracked, replace it with new fuel line hose.
Is it a messy job to replace a fuel pump?
Replacing your fuel pump is a messy job, so be sure you're dressed appropriately. You will also need some common tools, as well. Remember, you will be working around fuel and fuel vapors, so be sure that your workspace is well ventilated.
What is a mechanical fuel pump?
Mechanical fuel pumps siphon fuel from the gas tank. It then pushes it to the carburetor, when the engine is cranking or running. All mechanical fuel pumps used on inline six cylinder and V8 engines are diaphragm type. As a result, no adjustments or repairs are possible.
How to check if fuel pump is leaking?
If fuel is dripping, the diaphragm is faulty and you need a new pump. Another way to check the pump is to; disconnect the fuel line at the carburetor and place it in a container. Crank the engine to see if the pump is pushing any fuel through the line.
What is the mechanism that allows oil to leak?
Pumps – (Leaking Oil): On many automobiles, the fuel pump actuator arm, passes through the timing cover. This arrangement allows the constant rotating motion of the camshaft or crankshaft to operate the arm. That also adds another place for oil to leak.
Why does the timing cover gasket leak?
When this happens, it’s possible for oil to seep out, around the fuel pump to timing cover gasket. If the leak continues long enough, replace the seal. Because, the detergents in the engine oil will eventually damage it.
Why does my carburetor foam?
Fuel foaming happens when cold gas comes in contact , with a hot carburetor fuel bowl. Gasolines that contain octane boosters or alcohol may alter volatility; which can cause drivability problems or hard starting. Consequently, alcohols can corrode components, throughout the fuel system.
How to check fuel line on a carburetor?
Remove the air cleaner. While looking in the throat of the carburetor, pump the throttle linkage. A working pump will squirt fuel into the carburetor. However, if no fuel appears; verify the tank has gas and check the fuel line and fuel filter for blockages.
What is the rubber diaphragm?
The internal rubber diaphragm is capable of lasting a long time. Gas is a petroleum product, that helps extend the life of the rubber diaphragm through lubrication. Another common place for a fuel leak, is the hoses that lead from the tank to the fuel pump.
What are the problems with a fuel pump?
The usual problems with a fuel pump are leaky check valves, worn out diaphragm, possibly a broken spring or a leaky sediment bowl gasket.
How to reseat a pump that does not have a valve?
For pumps that do not have removable valves you can reseat the existing valve seats. Remove the valve retainers and collect the small flat valve discs with their tiny springs and put them in a safe place. Get a wooden dowel slightly smaller than the hole above the valve seat but larger than the brass seat.
How to get a flat face on a valve seat?
Run the drill and sand the dowel to get a perfectly flat face. Cement a small disc of very fine wet-or-dry sandpaper to the end of the dowel and, using a low speed, lightly contact the sandpaper to the valve seat. After a few seconds inspect the seat to see if it is bright all over.
How to tighten a pump?
Tighten the screws evenly, alternating from one side to the other and tightening each gradually until they are all tight. Install the inlet and outlet fittings using a paste type pipe sealant that contains Te flon, available at all parts stores.
What material is used to replace a diaphragm?
First and most important is the use of the proper materials and supplies. The replacement diaphragm that you install must be made of a material called VITON. It is a sheet rubber that will withstand the modern gasoline and it is the ONLY material that will do so.
What materials will end up in a carburetor?
Other materials, Nitrile, Buna N and Neoprene will eventually be destroyed by the modern gasoline and will end up in your carburetor as a sticky, gooey mess. When this happens it also becomes leaky enough to permit fuel to go directly into your crankcase where it may explode violently.
How to check valve discs?
Check the valve discs to see if there is wear at the seat contact area and if there is, turn the disc over to use the unworn side or sand the disc flat with very fine (600 grit) wet-or-dry paper placed on a flat piece of glass. Reassemble with the small springs and new fiber washers.
How to check if a fuel pump is working?
To perform this test, you should connect the test gauge to the metal output line using a spare piece of rubber fuel hose and a clamp. Once the connection is sealed, crank the engine over for 20 seconds. This will provide a full pressure reading, letting you know whether or not the pump is still in working order.
How much pressure does a fuel pump need?
On modern automobiles, the average fuel pump pressure is over 60 PSI (pounds per square inch). On classic cars with mechanical style fuel pumps, however, the pressure is much lower—between four and six PSI. If you suspect that your fuel pump is not producing enough pressure, there are two tests you can perform.
How much torque does a fuel pump bolt need?
The fuel pump bolt torque specification is usually around 25 to 35 foot-pounds. Regardless of the model of the fuel pump, the best way to ensure the bolt is tightened properly is to use a torque wrench. To make sure the bolt stays in place, apply a small amount of thread-locking compound before reassembly.
What is the fuel pump actuator?
On many automobiles, the fuel pump actuator arm passes through the timing case cover. This arrangement allows the constant rotating motion of the camshaft or crankshaft to drive the arm. In the example of a small block Chevy V-8, for every engine revolution, the fuel pump actuator is pushed and released one time.
Why does my gasket come loose?
Although this gasket is usually reliable, engine vibration can cause the bolts to come loose. When this happens, oil can seep out around the fuel pump. If you notice a leak in this area, replace the seal as soon as possible, as detergents in the engine oil can cause further damage.
How to test a gas pump?
An effective mechanic trick is to use an empty 12-ounce soda bottle to collect a fuel sample while a partner cranks the engine for 30 seconds. If the mechanical pump is working correctly, it will push four to six ounces of gas into the bottle.
Where is the weep hole on a fuel pump?
Most mechanical fuel pumps have a weep hole on the bottom of the unit. When the internal diaphragm leaks, fuel escapes through the weep hole to notify the vehicle owner of a malfunction. This is one of the more common fuel pump problems found in classic cars that are between 30 and 60 years old.
What is a mechanical fuel pump?
Mechanical fuel pumps are used on older engines that have carburetors ( though some may have a low pressure electric fuel pump mounted in or near the gas tank). The pump siphons fuel from the gas tank and pushes it to the carburetor when the engine is cranking or running. Mechanical fuel pumps use a lever that rides on the camshaft ...
How to check fuel pump pressure?
You should also check fuel pump pressure. Connect a fuel pressure gauge to the pump outlet, or tee a gauge into the fuel line at the carburetor. Crank the engine and note the pressure reading on the gauge. If there is no pressure, or if pressure is less than specifications, the pump is bad and needs to be replaced.
What causes a fuel pump to run?
Fuel Pump Problems. A leak in the diaphragm or one-way valve inside a mechanical fuel pump will cause a loss of fuel pressure and starve the carburetor for fuel. This may cause the engine to run lean, misfire, hesitate or stall. If the pump fails entirely, no fuel will be delivered to the carburetor and the engine will not start or run.
What happens if you don't see fuel in your carburetor?
If you do not see any fuel squirting into the carburetor, the fuel pump has probably failed (or the fuel line or fuel filter are blocked, or the tank is out of gas). Visually inspect the pump. If you see any fuel dripping from the pump, the diaphragm inside has failed and the pump needs to be replaced. WARNING: A leaky fuel pump is dangerous ...
How much pressure does a fuel pump need?
The output pressure of a mechanical fuel pump is typically quite low: only 4 to 10 psi. But little pressure is needed to keep a carburetor supplied with fuel.
Why is a leaky fuel pump dangerous?
WARNING: A leaky fuel pump is dangerous because the fuel may ignite and start a fire!
How to fix a leaky engine pump?
Install a new gasket on the pump. Apply gasket sealer to both sides of the gasket for a leak-free seal. Apply a dab of grease on the tip of the pump lever where it contacts the camshaft, then mount the pump on the engine. Make sure the pump lever is correctly aligned with the lobe on the camshaft, otherwise the pump lever may be damaged when the engine is cranked.
