How to Fix or Replace the Ceiling Fan Chain Quickly.
- Decide if the Repair is External or Internal.
- Open the Ceiling Fan Base.
- Remove the Metal Collar.
- Pull out the Pull Chain Switch.
- Cut the Wires to the Ceiling Fan Chain Switch.
- Attach the New Pull Switch to the Ceiling Fan.
- Thread the Pull Chain Through the Hole.
- Reassemble and Test the Ceiling Fan.
Full Answer
How to repair broken chain in ceiling fan?
To replace the fan light switch pull chain:
- The switch housing needs to be removed.
- Unscrew the screws holding the lighting assembly to the fan.
- You should now see the light switch and where the pull chain has broken.
- Unscrew the pull chain assembly from the switch.
- If needed take the pull chain to your nearest hardware store and match it up with a new one.
How to replace pull string on ceiling fan?
Replacing Ceiling Fan Light Pull String
- Take Safety Precautions. Safety precautions are critical to the success of your project and always come first with every job do-it-yourselfers tackle.
- Remove The Light Fixture. Once the power is off and the ladder or step stool is in place, the existing pull switch can be accessed.
- Remove Existing Pull Switch Assembly. ...
How to fix ceiling fan without Hook?
Use the steps below to determine the cause of the problem:
- Remove any dirt or debris from all fan blades. ...
- Tighten any loose screws on the light kit, fan blades, motor coupling, downrod, and mounting hardware.
- Confirm the hanger ball is firmly seated in the mounting bracket.
- Confirm the outlet box is ceiling fan-rated and designed to support the ceiling fan's weight.
How to fix a swaying ceiling fan?
Method 1 of 3: Tightening the Screws
- Make sure the fan can't turn on while you work. ...
- Clean the fan blades. Dust, dirt, and debris collecting on the top of the fans can make it off balance, as well as get into the motor or grooves ...
- Check and tighten all the visible screws on your fan. ...
- Remove the canopy where the fan attaches to the ceiling and tighten any screws. ...
How do you fix the pull chain on a ceiling fan?
InstructionsDecide if the Repair is External or Internal. ... Open the Ceiling Fan Base. ... Remove the Metal Collar. ... Pull out the Pull Chain Switch. ... Cut the Wires to the Ceiling Fan Chain Switch. ... Attach the New Pull Switch to the Ceiling Fan. ... Thread the Pull Chain Through the Hole. ... Reassemble and Test the Ceiling Fan.
Can you fix a pull chain?
Many ceiling fans and some ceiling light fixtures use pull chains to operate the unit. Most commonly found in ceiling fans, these chains can break down and stop working. Unfortunately, the only practical way to resolve this issue is to replace the chain.
How do you fix a stuck pull chain on a light fixture?
What to Do When the Pull Chain for a Light Is StuckTurn off the power.Remove the lightbulb, fixture, covers, and accessories.Unhook the wiring.Replace the old switch and chain with new ones.Reattach the wires.Put all covers, accessories, and the fixture back in place.Reinsert the lightbulb.Turn on the power.More items...
How much does it cost to fix a ceiling fan pull chain?
Repairing a pull chain usually costs $50 to $100, while repairing the fan's lighting or blades typically costs $70 to $175.
How do you turn a ceiling fan on without a chain?
Connect the neutral and hot wires to the “AC-in” wires on the receiver. There'll be three wires remaining which you should connect to the wires on the fan and light. Flip the DIP switch positions so that they match on both the transmitter and the receiver. Put the receiver back into the housing and screw it securely.
How do you replace a pull string cord?
0:332:16EASY 2 minute guide for how to change length or the entire pull ...YouTubeStart of suggested clipEnd of suggested clipSo see how i'm pulling that all you do is you just tie a knot where you want it at the top thereMoreSo see how i'm pulling that all you do is you just tie a knot where you want it at the top there chop it off then when you let it go that'll be the height of the cord.
Why is my ceiling fan chain stuck?
Over time the chain attached to the switch can jam , keeping you from pulling it. When this happens, the easiest solution is to simply replace the entire switch assembly. Fan manufacturers have taken replacing the switch into account and have made the process as easy as possible.
How do you fix the light pull on a ceiling fan?
0:042:39How to Repair a Ceiling Fan Light Pull Cord - YouTubeYouTubeStart of suggested clipEnd of suggested clipI'm going to try to leave as much wire in there as possible. We are going to unscrew. The pull chainMoreI'm going to try to leave as much wire in there as possible. We are going to unscrew. The pull chain switch. Now with your new switch.
How do you replace the chain on a pull chain light fixture?
1:562:54How to Replace a Pull Chain Light Fixture - YouTubeYouTubeStart of suggested clipEnd of suggested clipNow you can tuck the wires into the box. And attach it with the screws. Put in a light bulb attachMoreNow you can tuck the wires into the box. And attach it with the screws. Put in a light bulb attach your chain or string to the chain that's coming out of the pull chain. And then turn on the power.
Is it cheaper to repair or replace a ceiling fan?
The national average cost for repairing a ceiling fan is between $90 and $200. Most people pay around $145 for an electrician to tighten screws, clean, and balance the fan....Ceiling Fan Repair Price.Ceiling Fan Repair CostAverage range$90-$200Minimum cost$50Maximum cost$4501 more row•Apr 27, 2021
How do you replace a ceiling fan chain switch?
0:213:18How to replace a Pull Chain Switch on Ceiling Fan. Easy! - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo the first thing you want to do is remove these screws right here there's three of them there'sMoreSo the first thing you want to do is remove these screws right here there's three of them there's another one on this side. So let's do that all right before you take off the last screw.
How long does it take to repair a ceiling fan chain?
There are two types of ceiling fan chain breaks: external or internal to the fan housing. The first repair is simple and takes only a few minutes. The second repair is more involved and usually requires some disassembly.
What happens when a ceiling fan chain breaks?
External: When the ceiling fan chain breaks outside of the fan housing, it usually breaks somewhere at mid-point. The break is visible and easily accessible. The break can be repaired with an extension chain. Internal: When the ceiling fan chain breaks inside of the fan housing, it remains an inexpensive repair but more work is involved.
What does it mean when a ceiling fan chain is not visible?
When no ceiling fan chain is visible, this likely means that the pull within the ceiling fan has broken near or inside the ceiling fan pull switch. Unscrew the metal collar through which the ceiling fan chain should extend. First try screwing off the collar with your fingers, turning counterclockwise.
Why do ceiling fans break?
So many ceiling fan chains break and disappear internally—rather than in the more convenient external spot—because the hole on the fan housing is a friction point. With the chain continually rubbing against the sides of the metal collar, breakage is inevitable.
How far out of the fan should I add a chain?
If the remaining ceiling fan chain on the ceiling fan extends at least half an inch out of the fan housing, you only need to add a ceiling fan chain extension. As long as you have enough existing chain to work with, this is the best direction to go.
Can you fix a pull chain switch?
Do not attempt to fix the pull chain switch. Instead, it is easier and safer to discard the old switch and replace it with a new switch. Ceiling fan pull switch kits are inexpensive and readily available online.
Do ceiling fans work in the winter?
Both for looks and for saving energy, a ceiling fan is a great addition to any home. During the winter, the fan pushes warm air down into living areas. During the summer, it draws warm air upward and away. Yet for all of their marvels, so many ceiling fans rely on a quite low-tech way of controlling the fan: a chain.
Determining where the pull chain broke
Part of the pull chain is inside the housing of the fan and the rest is hanging outside. To replace or repair a broken pull chain you first have to identify where the breakage is;
Turn off electricity
Before starting your repair work, take safety precautions. Turn off the fan switch on the wall panel. Also, always turn off your power at your breaker box when working on the wiring. After opening the fan housing, use a voltage tester to ensure that the power is turned off.
Remove the fan housing
If you cannot see any pull chain fragment outside the fan housing, it means you will have to remove the housing to see the extent of the damage. It may be a broken pull chain, or the switch itself may be damaged and needs replacing with a new one.
What to do if ceiling fan pull chain is stuck?
The pull chain is attached to the switch, and the easiest way to fix this problem is to install an entirely new switch.
What is wrong with my ceiling fan?
However, one of the most common problems among ceiling fan owners is a broken pull chain . More specifically, a ceiling pull chain that is stuck and not functioning correctly. If you’re experiencing this issue, you’re in luck because it’s ...
Why does my ceiling fan snap?
A broken pull chain or chain that is too short to access is another common issue among ceiling fan owners. They’re relatively fragile, and if too much pressure is applied, they can snap easily.
How to replace a broken chain on a switch?
Using a screwdriver, remove the broken chain from the disc and discard. Replace the chain. Just like you removed the broken piece, place a new, longer chain in its place. You’ll want to ensure that it’s long enough to reach through the fixture and be easily accessible to pull on. Reassemble the switch.
How to get electrical wires to pass through switch?
To properly allow the electrical connection to pass through the wires of the new switch, you’ll need to strip the insulation off the ends. Using a wire stripper, remove about 0.5 to 0.75 inches of insulation. To strip, cut into the insulation first and then pull it to the end of the wire.
Can you disconnect a switch from the old one?
Once you’ve secured your replacement switch, you can disconnect all the wires attached to the old one . Take a photo of the existing setup before taking anything apart so that you know how to reassemble it all.
Is a ceiling fan good for winter?
A ceiling fan can be an excellent addition to any home for both aesthetics, comfortability, and saving energy. In the wintertime, you can have the benefit of enjoying warm air being pushed down into your living areas. Whereas, in the summer, the fan will draw the excess warm air up and away. Most of these ceiling fans are operated by ...
What to do if your ceiling fan switch is broken?
If your switch is completely broken, purchase a replacement at a local hardware store before removing the old one and installing the new switch. Make sure you turn the power source off before taking apart the ceiling fan to be safe. Steps.
How to replace a broken chain?
Put a longer piece of chain in the old chain’s spot. Just as you removed the short broken chain, pop a longer chain that will reach through the fixture into place in the old chain's spot. Snap the longer chain into the disc where the broken chain was using your fingers. ...
How to reassemble a switch?
Reassemble the switch by putting the chain and spring back into place. Put the spring and chain attached to the disc back into the switch. Pull the chain through the hole in the switch so you can pull on it easily . If you popped off a protective plate that holds everything together, press this back into place too.
Introduction
This guide will show you how to replace a ceiling fan pull chain switch.
Step 1 Pull Chain Switch
Caution: Turn off the power from the circuit breaker and turn off any light switches that provide power to the ceiling fan.
Step 6
Note the wire colors and the terminal they attach to on the old switch.
Step 9
Put back the white cover and then tighten up the nut at the bottom of the cover from where the chain is hanging.
Step 10
Turn the power back on and test the switch to find if it is working or not.
Repair an External Ceiling Fan Chain Break
If the remaining ceiling fan chain on the ceiling fan extends at least 1/2-inch out of the fan housing, you only need to add a ceiling fan chain extension. As long as you have enough existing chain to work with, this is the best approach.
Remove the Metal Collar
Unscrew the metal collar through which the ceiling fan chain should extend. First try screwing off the collar with your fingers, turning counterclockwise. If this does not work, use pliers and a soft rag wrapped around the metal collar to protect the collar and the fan housing from damage.
Open the Ceiling Fan Base
Remove any light bulbs from the ceiling fan. With a manual screwdriver, turn out the screws holding the removable lower section from the ceiling fan motor base. Set the screws aside. Gently pull off the removable section. Leave it attached by its wires to the ceiling fan base.
Pull Out the Pull Chain Switch

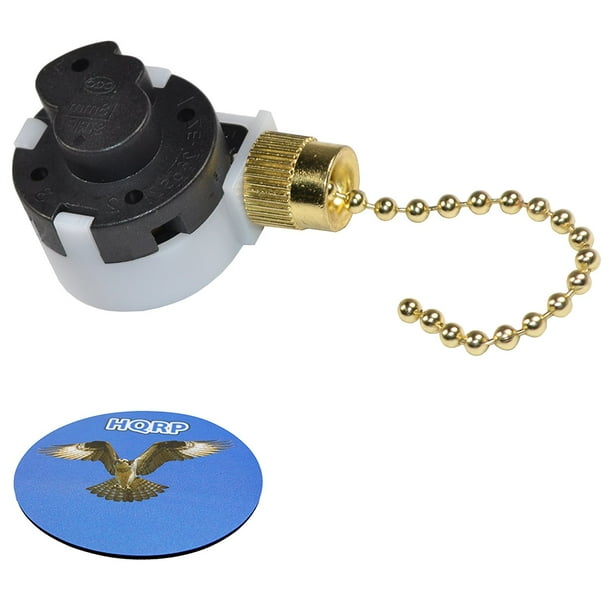

Locate the ceiling fan chain switch. It should be a small plastic unit, often with a transparent side. You may even be able to see the broken pull within the switch unit. Carefully pull this down. It will be attached to the fan with two wires.
WARNING
Do not attempt to fix the pull chain switch. Instead, it is easier and safer to discard the old switch and replace it with a new switch. Ceiling fan pull switch kits are inexpensive and readily available online.
Cut the Wires to the Ceiling Fan Chain Switch
With the wire stripper, use the cutting section to snip off the two wires that attach the ceiling fan chain switch to the ceiling fan base. Leave at least 2 inches of wire attached to the ceiling fan base to make it easier to reattach the new pull chain switch.
Attach the New Pull Switch to the Ceiling Fan
After stripping the plastic from the wires to expose the copper wire, attach the two wires of the new ceiling fan chain pull switch to the fan's wires. Twist together the wires. Top off each connection with a plastic wire nut.
Instructions
Before you begin working with the ceiling fan pull switch, it is important to determine what exactly is wrong with the chain. As you pull on it, does it break off in your hand? If so, there are usually replacements for these chains available at your local home improvement store or a local hardware store near you.
FAQs About Fixing Ceiling Fan Chain
If you have a broken chain in the ceiling fan, the best thing to do is replace it. Fixing a completely broken pull chain is possible, but getting the ceiling fan operating smoothly again may take some work. You also risk your safety if you fix it instead of replacing it with a new switch.
Final Thoughts on How to Fix Kitchen Fan Lighting
Fixing kitchen fan lighting is not a complicated task as long as you already know the exact problem you are facing. If your light fixture is steadily losing wattage, then it may need to be replaced altogether.
