- Open the exterior door fully. Remove the screws from the rotted threshold with a large flat-tip screwdriver.
- Insert the tip of a wood chisel between the seam of the threshold and concrete. ...
- Drive any raised concrete anchors flush with the surface of the concrete with the hammer. ...
- Measure the width of the door opening between the inside faces of the door jambs. ...
- Position the threshold in place at the door opening with the inside edge against the adjacent edge of the flooring or carpet strip.
- Set up a power drill with a 3/16-inch carbide drill bit. ...
- Apply a uniform layer of exterior silicone sealant on the surface of the concrete. Reposition the new threshold in place between the jambs.
How to remove and replace a threshold?
Remove Old Threshold: Remove the rubber strip on the existing entry door threshold, unscrew the screws holding the threshold in place, and remove the old threshold. Cut New Threshold to Size: Remove the rubber seal from the top of the new threshold, and cut the threshold to fit with a hacksaw using the old threshold as a pattern.
How to replace the threshold under a rotting door?
- If the doorstops are undercut but the jambs are not, use a hammer and prybar to remove the nails from the threshold.
- Hammer the threshold out from under the doorstops.

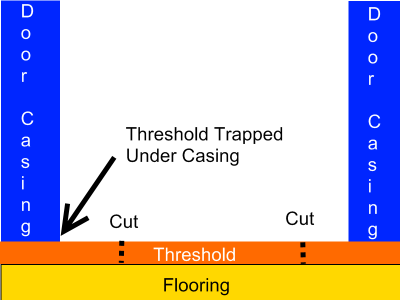

- If the doorjambs were undercut to accommodate the threshold, saw the threshold into two pieces.
- Remove each piece separately.
How do you replace a front door threshold?
- Test the fit. ...
- Lay a bead of caulk along what will be the back edge of the threshold.
- Slide the threshold underneath the doorstops and position the notches you cut around the door jambs. ...
- The threshold should slope slightly away from your home so that water will not pool at your doorway.
How to install threshold on uneven floor?
Wood or Laminate Transitions
- Wood or Laminate Transitions When you install wood or laminate, the manufacturer of the floor should be able to offer you a transition piece that matches the floor. ...
- Rubber Transitions Another great option that you have for this type of situation is a rubber transition piece. ...
- Metal Trim

How do you repair a rotted exterior door threshold?
0:265:26How to fix, repair replace rotted exterior door jamb, Easy! - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo first of all we're gonna do is pull this weather stripping off this is the little kerf styleMoreSo first of all we're gonna do is pull this weather stripping off this is the little kerf style slips in the slot. And we're just gonna pull this back. So we can work on the jamb.
Can you replace a rotted threshold?
If the threshold of an exterior door includes a wooden sill that has rotted, it'll need to be replaced. The first step is to remove the rubber gasket, the screws, then the aluminum threshold. The wooden part under the threshold is called the sill, and it usually extends under the door jambs so it has to be cut out.
How do you replace a threshold on a old house?
1:576:36How to Make an Exterior Door Threshold | Ask This Old HouseYouTubeStart of suggested clipEnd of suggested clipJust a couple of pins to pull. This. Door because of the fresh cut on the bottom we exposed a lot ofMoreJust a couple of pins to pull. This. Door because of the fresh cut on the bottom we exposed a lot of grain. We don't want that to wick up any moisture. So i'll spray the bottom with the sealant.
How much does it cost to repair door threshold?
How much does a new door threshold cost? A carpenter or handyman charges $69 to replace a door threshold vs. doing it yourself for $45 and saving 34 percent.
What is the difference between a door sill and threshold?
The door sill is part of the frame structure of the door and sits under the door jamb. The threshold sits on top of the sill and performs the duty of making the door weathertight.
How do you seal a door threshold?
1:071:49How to Adjust the Threshold to an Exterior Door - YouTubeYouTubeStart of suggested clipEnd of suggested clipSill threshold and floor. Next carefully peel back the weatherstrip and adhere the foam wedge toMoreSill threshold and floor. Next carefully peel back the weatherstrip and adhere the foam wedge to complete the weatherstrip seal at each bottom corner of the operating doors. Once the sealant is dry.
Can you replace just the threshold of a door?
Measure the length, width, and thickness of the old threshold, and have a replacement with a similar profile on hand. It should be an inch or two longer than the distance between the door casing's outside edges so you can trim it for an exact fit later on.
What do you put under door threshold?
Generally, the best types of sealant to use for a door threshold are silicone or urethane. As we mentioned above, expanding foam is also great at filling in any air bubbles. Many homeowners also use a weatherproof strip along the base of their door's threshold alongside the sealant, so that's another idea.
What is the difference between a threshold and a saddle?
Door saddles are made from metal, mainly aluminum or brass, and different stones and marbles. They are designed in a way so that they can create a transition between different floor materials in a doorway. On the contrary, door thresholds are made from wood and metal.
How much does it cost to replace an exterior threshold?
Install a Threshold Transition Strip: national average costcost to install a threshold transition stripNational Avg. Materials Cost per transition$13.37National Avg. Cost (labor and materials) for 6 transition$604.74National Cost Range (labor and materials) for 6 transition$478.72 - $730.77
How do you repair wood rot on an exterior door frame?
0:4011:32How To Repair Rotted Door Jambs - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd I used a combination square tomorrow a good perpendicular line across the face perfectlyMoreAnd I used a combination square tomorrow a good perpendicular line across the face perfectly straight that way. And what I'm going to do is. Cut right at this control line with a multi oscillating.
How do you repair an exterior door frame?
0:129:51Fix Rotted Door Frame (Brickmold) - YouTubeYouTubeStart of suggested clipEnd of suggested clipI will set up the cut by. Creating good straight line here. And then I'll cut the lower portion offMoreI will set up the cut by. Creating good straight line here. And then I'll cut the lower portion off and that'll make room for the repair. So I've gone ahead and mark my cut here.
How do you replace a rotted threshold on concrete?
How to Replace a Rotted Threshold Over ConcreteRemove the Screws. Open the exterior door fully. ... Unseat the Threshold. ... Remove Sealant With a Putty Knife. ... Take Your Measurements. ... Mark Locations for the New Screws. ... Drill Your Holes. ... Apply a Silicone Sealant. ... Remove the Rotted Threshold.More items...
What do you put under exterior door threshold?
Squirt expanding foam sealant under the threshold to hold it in place and plug any air gaps. Immediately put the toekick up under the flashing and tight against the underside of the threshold, and screw it to the subsill. Run a bead of sealant between the threshold and each door stop.
How to cut a left hand notch?
To mark the cuts for the left-hand notch, measure the width of the opening from jamb to jamb, then hook the tape on the cut-out notch and transfer that measurement to the threshold's back edge. Mark the width of the jamb and stop on the threshold's left end, join the marks with a square, and cut out the notch, as shown.
How to measure a jamb on a stock?
First, measure the width of the right-hand casing, then hook the tape on the threshold's back right-hand corner and transfer that measurement to the threshold's back edge. Next, measure the width of the jamb and stop, hook the tape on the same corner, and transfer the measurement to the end of the stock.
1. Remove the Screws
Open the exterior door fully. Remove the screws from the rotted threshold with a large flat-tip screwdriver.
2. Unseat the Threshold
Insert the tip of a wood chisel between the seam of the threshold and concrete. Tap the end of the chisel with a hammer to unseat the threshold from the concrete, instructs This Old House. Remove the threshold.
3. Remove Sealant With a Putty Knife
Drive any raised concrete anchors flush with the surface of the concrete with the hammer. Remove any residual sealant from the surface of the concrete with a steel putty knife.
4. Take Your Measurements
Measure the width of the door opening between the inside faces of the door jambs. Deduct 1/8 inch for clearance to make it easier to slide the new threshold in place. Measure and mark the new threshold. Square the mark with a builder's square. Cut the threshold with a circular saw or handsaw.
5. Mark Locations for the New Screws
Position the threshold in place at the door opening with the inside edge against the adjacent edge of the flooring or carpet strip. Mark locations for new screws along he center line of the threshold. Mark locations 3 inches from each end and at 8-inch intervals in between.
6. Drill Your Holes
Set up a power drill with a 3/16-inch carbide drill bit. Drill a single hole through the wood at each mark until the tip of the bit contacts the concrete. Lift the threshold out and drill 1 1/2-inch deep holes at each drill tip mark on the concrete. Drive a new 3/16-by-1-inch concrete anchor into each of the holes with a hammer.
7. Apply a Silicone Sealant
Apply a uniform layer of exterior silicone sealant on the surface of the concrete. Reposition the new threshold in place between the jambs. Drive a 3-inch stainless steel screw at each hole in the wood and into the corresponding concrete anchor below.
Why replace rotted studs?
Replace rotted studs and sill plates immediately to reduce further damage. Rot is the biggest enemy of a wood structure's integrity. When wood sill plates or studs rot, the strength of your home's structure is compromised. In order to avoid the damage spreading to other areas, such as a floor sagging, wall tilting or ceiling cracks, ...
How to remove rotted sill plate?
Begin lifting the jack slowly, in 1/4-inch increments. Alternate between jacking and adjusting the column without the jack to keep it tight on the upper plate. Lift the wall a bit, check everything for stability, then adjust the jack up another 1/4-inch, and follow with the adjustable column. Do this until you have raised the wall high enough to have clearance to remove the rotted sill plate, at least an inch.
