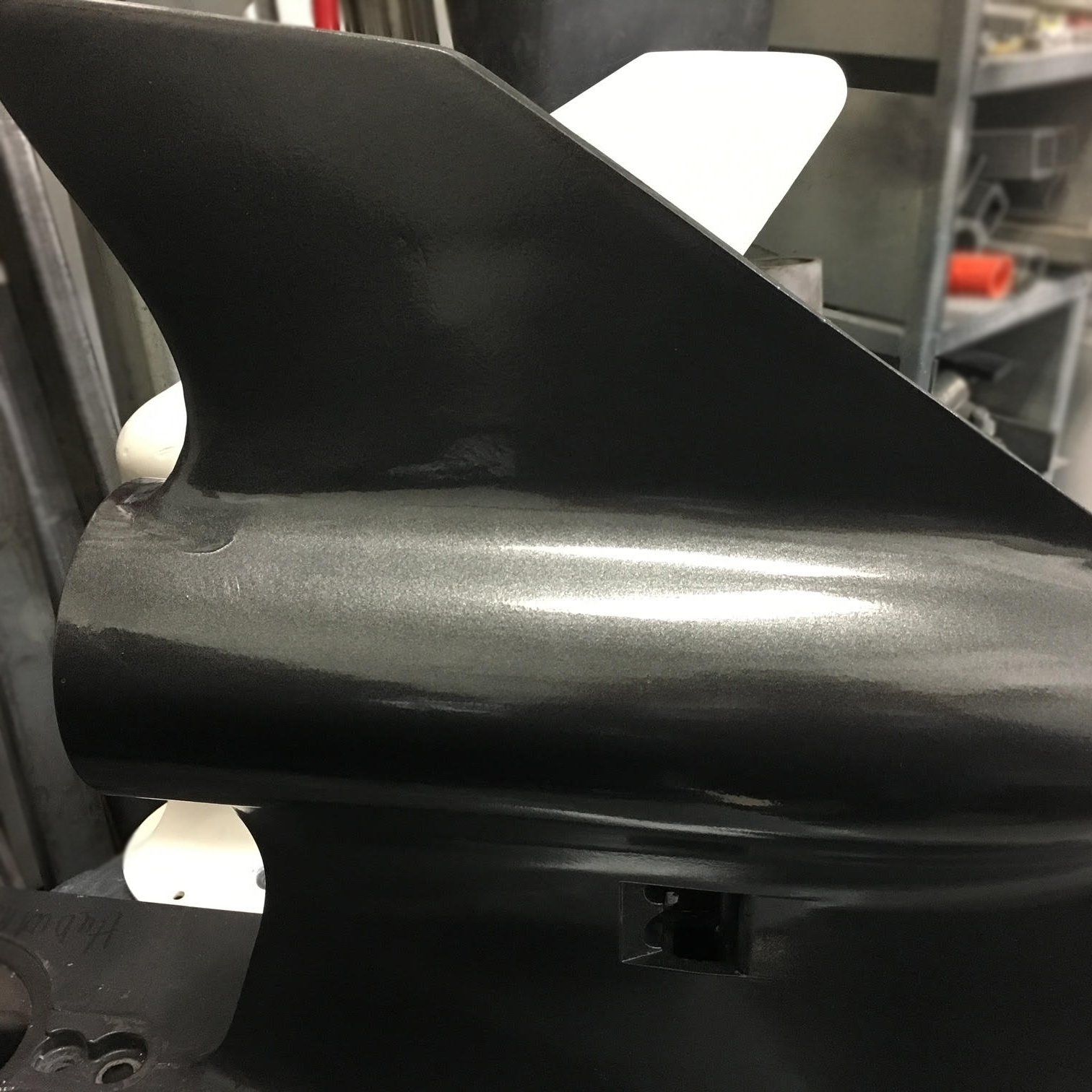

Prop and Skeg repair
- Epoxy a "fillet" of soft aluminum to the skeg ( fillet made from roof flashing folded and cut to shape to fit the "hole") . ...
- Wait a few hours for the epoxy to cure, then build up JB Weld until you get approximately the original contours of the skeg. ...
- Next day, file the JB Weld down to get the original contours and to smooth out irregularities.*
How do you fix a broken skeg on an outboard?
Easily repair a broken skeg on your outboard or sterndrive. Removing the gear case, while not required, makes this job easier. Doing so requires basic tools like a socket, screwdriver and/or wrench set. Once removed, lay the lower unit on its side for a straighter cut on the damaged skeg.
Can a welder repair a broken skeg?
In some cases, a welder can repair your skeg. When I needed to repair the bent skeg of the Yamaha outboard that powers my Edgewater 228 CC charter boat, I elected to do it myself using a Megaware SkegGuard. Made of mirror-polished stainless steel, a SkegGuard works as long as at least 3 inches of stub remain of the broken skeg.
How do you replace a skeg with skegguard?
Using a plastic or wooden mallet, or tapping with a hammer and a scrap of wood, tap the SkegGuard into place over the old skeg and check everything for a proper fit. Tap it firm enough to make sure it is well-seated on the stub of the original skeg.
How do you fix a bent skeg?
I used a jigsaw fitted with a bi-metal blade to cut the bent skeg off and present a clean and level surface. A SkegGuard requires at least 3 inches of stub remaining from the original skeg in order to be affixed.
Can a broken skeg be repaired?
Some shops offer welding to fix a broken skeg, which has two inherent issues. First, the cost is usually over $300 out of your pocket. Secondly, many shops who do not specialize in lower units do not have the extensive experience to weld aluminum, which is a much more finicky metal to work with.
Does a damaged skeg affect performance?
Easily repair a broken skeg on your outboard or sterndrive. The skeg of an outboard or sterndrive gear case provides much directional stability and steering ease. Whether caused by running aground or due to some land-bound calamity, a broken or damaged skeg adversely affects handling.
Can you put a skeg guard on a broken skeg?
Megaware SkegGuard ® protect and prevent damage to your motor's skeg or repair and replace an already broken skeg.
How do you weld skeg?
1:1411:34How to fix an outboard motor skeg - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo we take our replacement skeg normally if it was missing the whole skeg. This we just weld thisMoreSo we take our replacement skeg normally if it was missing the whole skeg. This we just weld this replacement. On sometimes we'll cut them in half like i drew a line.
Is a skeg necessary?
Skegs are used only to assist in the tracking of a kayak. When the skeg is no longer needed, it can be raised back up inside the boat and has no effect on the performance of the kayak.
What is the purpose of a skeg?
A “skeg” is an aftward extension of the keel intended to keep the boat moving straight and to protect the propeller and rudder from underwater obstructions.
How do you install skeg guards?
1:293:16How to install the MEGAWARE SKEG GUARD. This product is ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd knock it up on there to the appropriate location drill the holes. And install the screws. AndMoreAnd knock it up on there to the appropriate location drill the holes. And install the screws. And it's as simple as that. So i've got my rib. Mallet. I'm going to get the schedger. Started up on.
What is the fin on the lower unit called?
A skeg (or skegg or skag) is a sternward extension of the keel of boats and ships which have a rudder mounted on the centre line. The term also applies to the lowest point on an outboard motor or the outdrive of an inboard/outboard.
What purpose does the skeg on an outboard motor?
The skeg is the lowest point on an outboard motor (pictured above). It acts as a precise rudder, which allows your boat to turn safely and effectively. It also protects the propeller from getting caught in debris in the water or other hazards the boat may come in contact with.
How do you repair a skeg on a boat motor?
2:406:18Skeg Repair (Outboard Motor) - YouTubeYouTubeStart of suggested clipEnd of suggested clipNext thing I do is a actually draw up a pattern I take this scag piece and just figure out exactlyMoreNext thing I do is a actually draw up a pattern I take this scag piece and just figure out exactly what I need then we'll take this and cut it out. And get ready to cut the new scag.
How do you repair a cavitation plate?
2:053:57Steve's 1975 Evinrude 40 HP Restore Part 6 - Cavitation Plate RepairYouTubeStart of suggested clipEnd of suggested clipSo I'm using jb weld so far this has been an amazing hold with this this has cured 24.MoreSo I'm using jb weld so far this has been an amazing hold with this this has cured 24.
What is the cavitation plate?
Cavitation plates are mounted to the lower units of boats to help increase performance. They act as a planing surface to get your boat on top faster. They give you better bow response when trimming your motor. They keep water down at your prop and intake improving water pressure.
