Fix-It Chick: Repair a yard hydrant
- Turn off the water supply to the hydrant and lift the hydrant handle to drain any remaining water from the line.
- Release the handle tension by loosening the set screw located in the handle linkage just above the packing nut.
- Loosen, but do not remove, the packing nut located just below the handle linkage.
Full Answer
How do you install a yard hydrant?
How do you install a yard hydrant? Dig hole for hydrant approximately 2 feet in diameter and deeper than the bury depth. Flush gravel, debris, etc. Install hydrant with drain hole below frost line. If supply line to the hydrant will not support hydrant, use re-bar, length of pipe or other suitable support driven in bottom of pit to help support ...
How to adjust a frost free yard hydrant?
- 01 of 06. Repairing a Frost-Free Yard Hydrant.
- Shut off the Water. Shut off the water supply to the hydrant.
- Remove the Hydrant Head. Aaron Stickley.
- Remove the Pump Rod. Aaron Stickley.
- Reinsert the Pump Rod. Aaron Stickley.
- Adjust the Shut-Off.
How do you fix a frost free hydrant?
- Loosen the set screw located in the side of the pivot while the hydrant is in the closed position.
- Raise the handle.
- Repeat the adjustment until it's perfect.
- Lift the handle part of the way up.
- Lower the handle a little bit.
- Tighten the set screw with the handle in the new position.
How to repair an outdoor hydrant?
Materials
- Penetrating oil (as needed)
- Plumber's thread-seal tape or pipe-joint compound
- 1/2-inch gravel for drainage
How do you fix an outdoor water hydrant?
9:0912:26How To Fix A Leaking Water Hydrant - YouTubeYouTubeStart of suggested clipEnd of suggested clipWe can grab that brass piece that slides onto the plunger that has the square set screw. Then we canMoreWe can grab that brass piece that slides onto the plunger that has the square set screw. Then we can grab the two side brass pieces. And put them on to that brass piece that goes on to the plunger.
How do you repair a frost free water hydrant?
6:259:16Simmons Frost-Proof Yard Hydrant- Repair Kit and Plunger ReplacementYouTubeStart of suggested clipEnd of suggested clipPut the head down over the rod putting the rod through the packing nut and up through the connector.MorePut the head down over the rod putting the rod through the packing nut and up through the connector. Do not tighten the packing nut or the set screw and turn on the hydrant.
How do you replace a lawn hydrant head?
0:483:30Replacing Yard Hydrant Head - YouTubeYouTubeStart of suggested clipEnd of suggested clipOnce the set screw is loosened from the yard hydrant head the next thing you're going to want to doMoreOnce the set screw is loosened from the yard hydrant head the next thing you're going to want to do is loosen off the bushing. And the o-rings. Inside the yard hydrant.
How do you repair a leaking Simmons yard hydrant?
0:000:59Simmons Frost Proof Yard Hydrant- Leaking at the Packing Nut - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf your Simmons Frostproof yard hydrant is leaking around the packing nut. One way to fix theMoreIf your Simmons Frostproof yard hydrant is leaking around the packing nut. One way to fix the problem would be to tighten down the packing nut.
How do you repair a frost free outdoor faucet?
1:493:02Fixing Faucets : How to Repair a Leak in a Frost-Proof Water FaucetYouTubeStart of suggested clipEnd of suggested clipYou'll need to remove the bib washer first remove the screw. And then take your pick or knife andMoreYou'll need to remove the bib washer first remove the screw. And then take your pick or knife and remove the bib washer. Once you have your new washer you've matched up the proper.
How do you fix a frost free outdoor faucet?
2:5616:09How To Fix a Leaking Frost Proof Faucet | DIY Plumbing - YouTubeYouTubeStart of suggested clipEnd of suggested clipAfter you change it out put the cap. Back on. And if the leak was up here you've got it fixed. IfMoreAfter you change it out put the cap. Back on. And if the leak was up here you've got it fixed. If you put a vacuum breaker repair kit on it that was designed for yours.
How much does it cost to replace a yard hydrant?
A yard hydrant that is broken or not working and needs replacing, can cost anywhere from $500 all the way up to $1,200. This cost has a smaller range because there are less variables such as distance of digging, cost of waterline, etc.
Can a yard hydrant leak underground?
Water leaks from below ground level when the hydrant is on. A small leak may be the result of a leak at the drain hole. Replace the plunger if it is old and worn. See Operating Pipe Assembly Removal instructions.

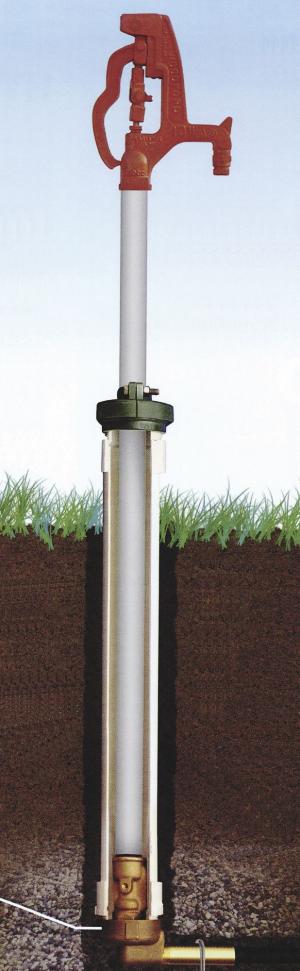

How a yard hydrant works?
The raised plunger allows water to flow through the valve body and up the stand pipe. In addition, raising the plunger closes off the drain port. The raised plunger closes off the drain port and allows water to flow through the valve port, past the plunger.
How do I identify my yard hydrant?
0:053:50Identifying Your Merrill Yard Hydrant - YouTubeYouTubeStart of suggested clipEnd of suggested clipHead if it is an eight-sided base as shown on the left you have an any flow hydrant if the base ofMoreHead if it is an eight-sided base as shown on the left you have an any flow hydrant if the base of your hydrant has six sides as shown on the right you have AC 1000.
How do you fix an outside leaky faucet?
0:452:35How to Fix a Leaky Outdoor Faucet - YouTubeYouTubeStart of suggested clipEnd of suggested clipTake the old washer to a plumbing supply store to make sure you're replacing it with the right oneMoreTake the old washer to a plumbing supply store to make sure you're replacing it with the right one put the new washer back inside the packing nut and retighten.

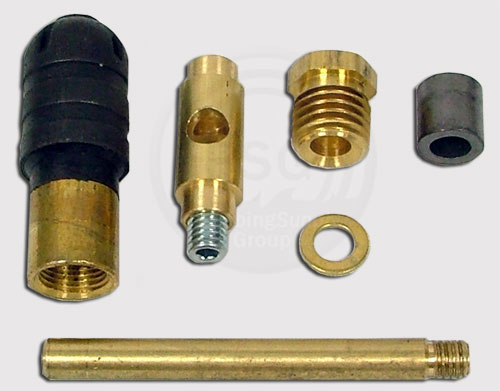

How do you repair a hydrant in a Woodford yard?
0:382:16Woodford Model Y34 IOWA® Yard Hydrant Repair - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd rotating pliers counterclockwise on the stem replace with a new rod stem and tighten clockwiseMoreAnd rotating pliers counterclockwise on the stem replace with a new rod stem and tighten clockwise using pliers destroy packing inside the assembly by using a flathead screwdriver.
How do I fix a leak in my hydrant wall?
0:084:54Mansfield Style Hydrant Repair Video - Dripping After Shut Off - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou most likely need to replace the o-rings. And washers on the stem of your hydrant. All wearableMoreYou most likely need to replace the o-rings. And washers on the stem of your hydrant. All wearable parts for the 300 400. And 500 series Mansfield hydrants are included in the wall hydrant repair kit.
How do you replace a hydrant stem?
2:115:51Outdoor Hydrant & Faucet Repair - Andy's Pipe Dream - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou're gonna need a pair of pliers. And you're just gonna gently turn it and unscrew it until itMoreYou're gonna need a pair of pliers. And you're just gonna gently turn it and unscrew it until it comes off of the faucet. You should be able to just get the threads loose.
Why is my frost free spigot leaking?
A leaking frost-proof faucet can waste a lot of water, but fixes are simple, whether the problem is the faucet stem washer assembly, the vacuum breaker, or just a loose retaining nut.
What to do if hydrant lever is not fully closed?
If the hydrant lever can't be fully closed, or if the faucet continues to dribble water when the lever is closed, you may need to adjust the hydrant's shutoff. Most hydrants have a square-head setscrew or a lock wheel that can loosened to allow for small adjustments to the position of the lever.
What is a frost free yard hydrant?
A frost-free yard hydrant is really just a variation on a standard compression faucet, in which a plunger at the end of a plunger stem opens and closes against a water inlet to control the flow of water. But in the case of a yard hydrant, the plunger is fitted onto the end of a long pump rod that runs down inside the vertical standpipe to ...
What makes a hydrant frost proof?
But what makes the hydrant frost-proof is a design variation that features a drain port built into the bottom of the valve. When the pump rod and plunger lift away from the valve seat, this drain port is blocked, forcing water to flow up the standpipe. However, when the pump rod and plunger are lowered down to close against the water inlet, ...
What is the bottom end of a hydrant pump?
At the bottom end of the pump rod is a plunger with a rubber washer or seal fitted to the end. The valve is designed so that when the hydrant's handle is lowered, the pump rod and plunger are squeezed down onto the water inlet, stopping the flow of water. Raising the hydrant handle lifts the plunger up away from the water inlet, ...
How does a frost free hydrant work?
How a Frost-Free Hydrant Works. A frost-free hydrant can be thought of as a very long compression faucet. The horizontal water pipe running out to the hydrant location from the house must be buried deep enough to be below the frost line, which in some climates can be 4 feet or more below ground. The actual valve body is located at ...
When a pump rod and plunger are lowered down to close against the water inlet, the drain port is?
However, when the pump rod and plunger are lowered down to close against the water inlet, the drain port is opened and any water in the standpipe drains away into the ground—the surrounding area is usually packed with gravel to facilitate drainage.
Where do you turn off water lines in your house?
If there's no shutoff valve on the individual water line, you can turn off the water at your home's main shutoff valve .
Why do you have to remove the hydrant head?
Sometimes, the hydrant head (A) must be removed due to damages or to replace the plunger (N).
How to loosen square head bolt?
Using a 5/16” wrench, loosen the square head bolt so the handle can be moved up and down freely without moving the operating rod.
What happens if you fail to thread a plunger?
Failure to do so could result in the plunger un-threading from the connecting rod which could be difficult to re-assemble, possibly resulting in the need to dig up the hydrant unnecessarily.
How to tighten a cast iron head casting?
When the head casting (A) touching the Galvanized stand pipe (Q) apply P.T.F.E. (aka: Teflon) tape or pipe thread sealing compound to the pipe threads, turn the head casting clockwise engaging the threads making sure that they start freely by hand. Tighten using a pipe wrench (righty tightly) approx. 3 – 4 full revolutions until head casting is secure. NO NOT OVERTIGHTEN!
How to tighten brass packing nut?
Simply tighten the brass packing nut (F) by turning it clockwise in very small increments until the leakage stops using a ¾” open end wrench.
Why is my hose bib syphoning?
If hose is attached to the hose bib of the hydrant when the hydrant is shut-off, back siphoning can occur if end of hose is left in container of liquid. The end of the hose must be left open to the air so hydrant can drain back. A back flow prevent should be installed if a hose is left on during the warm summer season.
How to force a plunger down?
Apply closing pressure on the handle - this will force the operating rod to assembly / plunger (N) down-wards until it makes contact with the valve seat in the valve body (O). Do not force the handle down -when the handle stops moving you have positioned the plunger against the valve body seat. STOP!
