Basically, you have to take it apart and cut the cord (the issue you describe is typically due to a break in one of the wires inside the insulated floating cord) then strip some of the insulation and connect the leads to the powersupply inside the aquabot.
Full Answer
Where can I get my aquabot power transformer repaired?

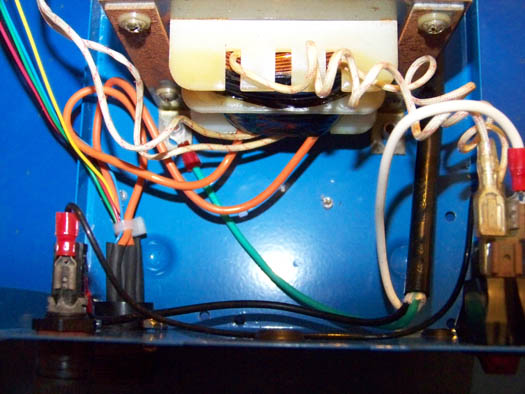

The power transformer is service friendly however, some Aquabot parts repair should be left to a shop. Unless you have electrical experience, take the power transformer to a repairman or replace it. At the bottom of this page are photos of a transformer with timer bypassed. Switches, fuses and reset buttons may be bought online or in retail shops.
How do I reset the power supply on my Robot?
Remove power supply from socket for 30 seconds. Disconnect Robot and turn power supply on If not working, change to another socket. Reconnect the floating cable into the power supply. Flip the robot upside-down.
How do I Fix my Robot?
Reconnect the floating cable into the power supply. Flip the robot upside-down. Try to rotate the wheels by hand. Check for and remove any debris in the driving system such as hair, string or leaves. Remove the top screws on the outlet top and check if the propeller needs to be cleaned. Remove the robot from power before starting.
How do I get the power supply out of the case?
They are located next to small gaps in the plastic body; you can use a utility knife to cut away just enough to get the four screws out. Once the screws are out, the back plate can be pried out and you can access the power supply inside of the case.
How do I reset my Aquabot power supply?
Switch the Power Supply “Off” and “On” several times, allowing approximately 30 seconds between each“ON” and “OFF”. Remember, if your Aquabot comes equipped with a Reset Switch it must be pressed each time after pressing the “ON” button.
How do I fix my Aquabot?
a) Check to make sure that no debris is caught on the drive belt or the drive tracks.b) Check to make sure drive belts are not worn or broken on your Aquabot Machine. ... c) Check to be sure the larger drive tracks are not loose or in the wrong place. ... d) Check drive pulleys. ... Pool is not Fully Cleaned.a) Clean bag filter.More items...
Why are the lights on my Aquabot flashing?
What does it mean when all LED lights are blinking on the power supply? Check to see if the unit is out of water. Check to see if the filter bag is stuck in the screen. Check to see if the propellers are stuck.
Can you swim with Aquabot?
1:003:32Aquabot Classic Robotic POOL CLEANER Review | Swim UniversityYouTubeStart of suggested clipEnd of suggested clipIf you need it you can start using the cleaner right out of the box which is why i love robotic poolMoreIf you need it you can start using the cleaner right out of the box which is why i love robotic pool cleaners and aquabot pool cleaners because you take them out you put them in they clean your pool.
Did Aquabot go out of business?
2019: Aquatron Robotics Technologies is acquired by Austrian, BWT (Best Water Technologies) Group along with the Aquabot name. 2020: Fluidra/Zodiac discontinues all production of the Aquaproducts (US assembled) line of cleaners and related repair parts and closes the New Jersey factory.
How many drive belts does an Aquabot have?
Single drive motor cleaners like the Aquabot Classic, Turbo, Jr and T2 have one pair of belts (on one side) to transfer power from the motor and rotate the drive system, while RC equipped dual drive motor cleaners like the T4 (and some with a vibrating brush on the bottom) have belts on both sides.
Why is my pool robot not working?
If your robotic pool cleaner stops moving, check the power cord. It may not be plugged in properly or there may be a problem with the power supply. Check the power supply to make sure the indicator light is on. If it is and the pool cleaner is still not moving, then the problem lies with the cleaner.
Can I leave my robotic pool cleaner in the pool?
You may only need to run the cycle two to three times a week. Leaving the machine in the water during that time exposes it to the elements unnecessarily. This exposure could cause the seals to deteriorate faster, allowing for leaks and damage to the electronic components.
Why does my Zodiac pool cleaner keeps stopping?
If your Zodiac pool cleaner stops and starts, the first thing you might want to do is check the suction flow coming through the hose. You will need your pump on for this operation. Included with this Zodiac pool cleaner is a pool pulse, and it has numbers on it.
How long do robotic pool cleaners last?
3 to 5 yearsHowever, most people will find that a robotic pool cleaner lasts for at least 3 to 5 years, with some extending the longevity of their machine to 7 years or more with basic maintenance and occasional parts replacement.
How many hours per day should I run my pool cleaner?
The rule of thumb for pool maintenance is to run your pump for eight hours per day.
Should I leave my pool cleaner in the pool?
Cleaners aren't meant to stay in the pool 24/7. This is true for all cleaners. Pressure side cleaners run on a schedule every day so why take it out? Leaving the cleaner in the pool 24/7 increases its exposure to corrosive chemicals in the water, such as chlorine or shock.
How do you change the drive belt on an Aquabot?
2:3811:32Aquabot Pool Cleaner Drive System Service How To - YouTubeYouTubeStart of suggested clipEnd of suggested clipTrack that we pulled off earlier and the top two are belt tensioners just make sure that none of theMoreTrack that we pulled off earlier and the top two are belt tensioners just make sure that none of the pegs on the side plate are broken. And now these belt tensioners here are tapered.
How do you use a rover Jr pool?
2:304:38Aquabot Pool Rover Junior Quick Start Video Guide - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd select our cleaning cycle. So for this cleaner. You can use select large pool or small pool. We'MoreAnd select our cleaning cycle. So for this cleaner. You can use select large pool or small pool. We're gonna select large pool. So as you can see the cleaner.
What is the power supply for Dolphin Nautilus?
Sorry, it's a Dolphin Nautilus. The Power Supply is Model 9995670. It is the one with the the selectable 3 day programming on it.
How to clean a blue light switch?
Used a hair dryer on the on/ off switch. Peeled off plastics exposing metal button and four areas where blue lights display . Cleaned it, put plastic back with small strips of duck tape around all four edges. I works again! Keep away from moisture. The plastic on button was splitting from the sun and let moisture in. Don’t know how long it will last, but it works great now!
aquabot power supply not working
I posted this in the wrong thread, so here it is again for anyone who's had this problem!
Re: aquabot power supply not working
I had the black socket crack on my unit recently, and there was no way to get the plug in to it.
Re: aquabot power supply not working
Thanks. The white wire actually goes to the same as the green. When connected together the thing works again. Yeah! I love saving $150 with 10 cents of electrical tape!
How long to remove power supply from socket?
Remove power supply from socket for 30 seconds.
What temperature should water be for a robot?
Check water temperature – if below 13°C add floats according to your robot model.
How to check battery life on remote control?
Check The batteries by pressing the Buttons - the red light on the remote control unit will not flash if battery is empty.
How to clean a robot without a filter?
Sometimes the filter is blocked but seems clean. Can clean by soaking in water+soap for 30 minutes and then gently scrub the surface from inside.
How to check if propeller is broken?
Remove the top screws on the outlet top and check if the propeller is broken or need to be cleaned.
Why is my robot's propeller cable tangled?
The cable is tangled- Propeller is broken or seized due to accumulation of hair. Remove the top screws on the outlet top and check if the propeller is broken or need to be cleaned. remove the robot from power before starting. (When reassembling the top cover, use only manual tool.
What is the PH of a pool motor?
Reduce float on bottom lid or opposite to motor. Make sure that PH is between 7.2 and 7.6 if not - make proper adjustments.
Anyone ever repair power cord for Aquabot Turbo T?
Hi all - I'm a pool owner of 4 years. This is our second year with our Aquabot.
Re: Anyone ever repair power cord for Aquabot Turbo T?
What you are describing sounds more like one of the conductors is broken, or one of the connectors is failing.
Re: Anyone ever repair power cord for Aquabot Turbo T?
Ben's right. Most likely they will want to repair it as a warranty item. I've had Dolphins and Blue Diamonds repaired (And BD has GREAT service!)
Re: Anyone ever repair power cord for Aquabot Turbo T?
You can fix this yourself, though if still under warranty - call the maker.
