- Bypass any power strips, surge protectors or UPS units by making sure the power cord is plugged directly into a known good outlet.
- If the system fails to power up correctly and attempts POST, the next step is to isolate the power supply as much as possible. ...
- Any power leads to the motherboard should be reseated to ensure a good connection.
Full Answer
How do I drain the residual power from my Dell laptop?
Follow the steps below to drain the residual power. Power off the laptop. Press and hold the power button for 10-15 seconds. Disconnect the AC adapter or power cable, and remove the battery. NOTE: For Dell laptops that have a nonremovable battery, see the Dell knowledge base article How to Reset Real Time Clock (RTC) to Recover Your Dell Laptop .
How do I test the power supply on my Dell Computer?
Perform a self-test on the power supply unit. Dell Inspiron, XPS, OptiPlex, Precision and Vostro desktop systems include a power supply with a built in self-test (BIST) feature that helps diagnose the health of the power supply unit. The LED indicator on the PSU helps identify if the power issue is caused by the power supply unit.
How do I fix Dell Computer no power post no boot?
Resolve No Power, No POST, No Boot or No Video issues with your Dell Computer. Turn off the system. Disconnect the power cord from the PSU, and wait for 15 seconds. After 15 seconds, connect the power cord back to the PSU. The LED light should stay on for 3 seconds and then turn off.
How do I Reset my Dell all-in-one computer?
Turn off the computer. Press and hold the power button for 10-15 seconds. Disconnect the power cable from the computer. NOTE: Dell all-in-one computers may either come with a power cable or an AC adapter. Disconnect the power cable or the AC adapter depending on the configuration of the computer.
See more
Can power supply be repaired?
If, after troubleshooting your computer power supply, you determine that the power supply is bad, we recommend it be replaced. Because of the potential hazards associated with repairing a power supply, most computer repair shops and computer companies do not repair power supplies and instead replace them for new ones.
How do I troubleshoot my Dell power supply?
Unplug the power cable or AC adapter from the wall outlet. Unplug the power cable or AC adapter from the computer. Check the power cable or AC adapter and cables (including the power cable) for signs of physical damage or overheating. Check if the pin inside the plug or adapter port is bent, broken, or damaged.
How do I fix my Dell charger?
Reset the AC adapter by following these steps:Unplug the AC adapter from the wall outlet for 15 seconds.Unplug the AC adapter from the laptop.Plug the AC adapter into a known-good wall outlet.Plug the AC adapter into the laptop.Check the LED indicator on the AC adapter.
How do you fix a computer power supply problem?
Following is a simple flowchart to help you zero in on common power supply–related problems:Check AC power input. Make sure the cord is firmly seated in the wall socket and in the power supply socket. ... Check DC power connections. ... Check DC power output. ... Check installed peripherals.
How do I reset my Dell power supply?
Turn off the computer. Press and hold the power button for 10-15 seconds. Disconnect the power cable from the computer. NOTE: Dell all-in-one computers may either come with a power cable or an AC adapter.
How do I test my Dell power supply?
How to run self-test using the button on the PSU. Turn off the system. Press the BIST button on the system and check whether the LED lights up. The light should be solid on not flickering or flashing and the power supply fan should also turn on to speed.
Why is my Dell not charging?
Several factors can lead to the plugged in not charging Dell error. For instance, the loose AC adapter and battery, faulty AC adapter, faulty battery driver, incorrect BIOS settings, etc.
How can I fix my laptop charger?
0:224:31How to Open and Fix Laptop AC Adapter without Damaging. DC ...YouTubeStart of suggested clipEnd of suggested clipWe begin let's talk about the two most common AC adapter problems speaking from my own experienceMoreWe begin let's talk about the two most common AC adapter problems speaking from my own experience it's a broken cable at either the wall or device side due to excessive flexing of the cable.
Why did my laptop charger stop working?
Common culprits include a faulty motherboard, damaged charging circuits, and malfunctioning battery sensors. Your particular make and model of laptop will likely have its own unique issues, and a seasoned tech support operator will have seen all of them.
How do I know if my power supply is broken?
Turn off any power switch on the PSU and plug the unit back into a working outlet. Turn on the unit's power switch. If nothing happens, the PSU is completely dead and needs replaced. If the fan turns, it's receiving some power.
How do I test if my power supply is failing?
Signs of a Failing PSUPC Won't Boot at All. As the central hub of the energy of your computer, if the power supply has died, the computer will fail to start. ... PC Randomly Restarts or Shuts Down. ... Random Blue Screen of Death (BSoD) ... Extra Noise Coming from the PC Case. ... Smoke or a Burning Smell.
What are the common problems in power supply?
The five common power supply problems include voltage and current issues at the input and output, reversed polarity, temperature issues, and missing external components.
How would you identify a faulty power supply in a desktop with a no power issue?
Turn off the computer.Press the BIST button on the computer and check whether the LED lights up.The light should be solid on not flickering or flashing and the power supply fan should also turn on to speed. If the fan is not spinning up properly this should be considered a BIST failure even if the LED lights up.
How do I test a PC power supply?
How to: Test a power supply unitShut off your PSU.Unplug all cables from the PSU except for the main AC cable and the 24-pin cable.Locate pin 4 and pin 5 on your 24-pin cable. ... Bend your paper clip so the ends can be inserted into pin 4 and pin 5. ... Turn on the PSU.See if the PSU fan turns.
How do I test a Dell power supply with a multimeter?
Plug the PSU into an outlet and flip the switch on the back. You should hear a fan. Test every pin on the 24-pin motherboard power connector as indicated in this article. Record voltage and confirm within accepted tolerances.
How to fix a laptop that won't turn on?
The residual power in the computer may cause the laptop not to turn on. Follow the steps below to drain the residual power. Turn off the computer. Press and hold the power button for 10-15 seconds.
How to check power cable on computer?
To check the power cable, AC adapter, cables, and the power port on the desktop or all-in-one for any damages: Unplug the power cable or AC adapter from the wall outlet. Unplug the power cable or AC adapter from the computer.
What is a BIST on a Dell Inspiron?
Dell Inspiron, XPS, OptiPlex, Precision, and Vostro desktop computers include a power supply with a integrated self-test (BIST) feature that helps diagnose the health of the power supply unit. The LED indicator on the PSU helps identify if the power issue is caused by the power supply unit.
Why is my AC cable frayed?
This may be due to the way the cable is wrapped around the AC adapter, or if the cable is subject to undue stress.
Does Dell All In One come with a power cable?
NOTE: Dell all-in-one computers may either come with a power cable or an AC adapter. Disconnect the power cable or the AC adapter depending on the configuration of the computer. Disconnect all devices or peripherals like USB drives, printer cables, and media cards (SD/xD).
Can Dell all in one turn on?
Dell desktop or all-in-one is not able to turn on. The power LED on the desktop or all-in-one is off. The power LED on the AC adapter of a Dell all-in-one computer is off. None of the LEDs on the desktop or all-in-one respond when you press the power button.
Why is my Dell laptop not turning on?
If your Dell laptop is not able to turn on, follow the troubleshooting steps to help you resolve power issues. Learn how to perform basic checks to identify why your computer is not able to turn on. See less. If your Dell laptop is not able to turn on, follow the troubleshooting steps to help you resolve power issues.
What type of adapter does a Dell laptop use?
The laptop battery might not charge or charge slowly. The AC adapter might heat up. Dell laptops may use either a 45 W, 65 W, 90 W, 130 W, 180 W, or 240 W AC adapter. For optimal performance, use the original AC adapter that came with the Dell laptop.
Why is my laptop's AC adapter damaged?
The AC adapter cable and power cables may get frayed or cut, and wires may become exposed at either end of the cables. This may be due to the way the cable is wrapped around the AC adapter, or if the cable is subject to undue stress.
Do USB docking stations work with laptops?
Universal USB docking stations do not provide power to the laptop. The AC adapter should be connected to the laptop. For Dell Thunderbolt or E-Series docking stations, verify that the original AC adapter that is shipped with the docking station is connected to the docking station.
What is the Power Supply Unit (PSU) built-in self test (BIST)?
Dell Inspiron, XPS, OptiPlex, Precision and Vostro desktop systems include a power supply with a built in self-test (BIST) feature that helps diagnose the health of the power supply unit. The LED indicator on the PSU helps identify if the power issue is caused by the power supply unit.
How to identify if my Dell desktop computer has the PSU BIST?
The PSU BIST is found on the back panel of the desktop computer, next to the power cable connector (on some smaller chassis types, you may need to remove the system cover to see the BIST on the side of the PSU).
Introduction
Make sure you have disconnected the power supply and removed it from the computer, letting it sit for 1-5 minutes to ensure release of charge, start this process with a medium sized screwdriver.

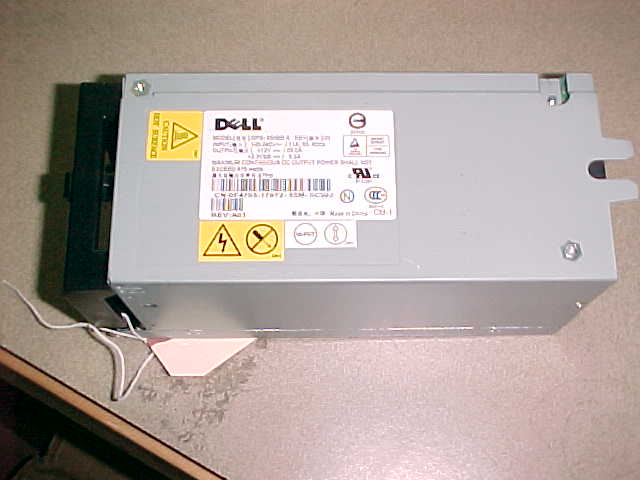

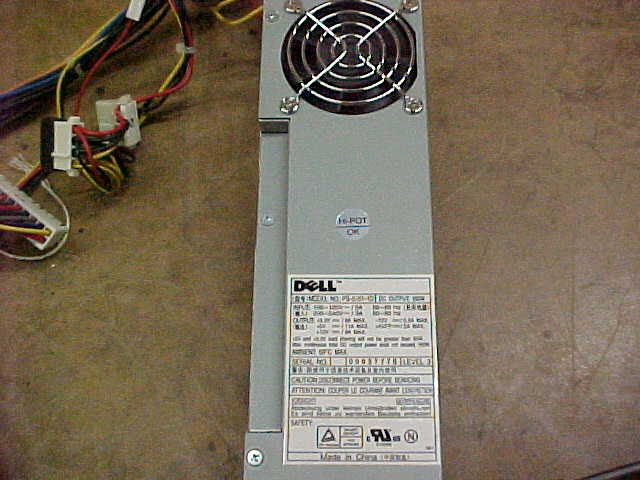

Step 1 Dell Power Supply (MH596) Teardown
Remove the outside case screws as seen in all 3 photos with a medium sized screwdriver checking for NO wiggle room
Step 3
The port on the first picture is actually the power port of your computer
Step 4
To remove the fan ween it forward and pull up with the frame facing towards you like a staircase
Step 6
Remove a screw on the back end (with the stair pattern facing towards you) to free the back panel (partially)
Step 7
Remove all four screw surrounding the circuit board in charge of dispersing and changing the power
Step 9
Remove glue surrounding the port that would be visible outside your computer (it is hot glue so it should be easy)
