Fuel Sending Unit Repair
- Make sure your tank is near empty, Mine had about 3 gallons left
- Disconnect the Battery
- Remove the carpet from the trunk (On a side note, while you have all the carpet and spare tire out it might be a good Idea to swap out the ...
- Note how the sending unit (Located in the center of the gas tank behind the spare tire) is wired
Full Answer
How to calibrate and fix a fuel sending unit?
You will have to jack the rear of the car up and unscrew four bolts and take off the clamps to four rubber fuel lines. Then the tank will drop down and you can gain access to the FSU portal. The FSU portal is the round object on the bottom right of the fuel tank. This is the back side of the FSU.
How do you troubleshoot oil sending unit?
These symptoms include:
- The Oil Pressure Light is on The oil pressure gauge inside your car will give you a good indication as to the condition of the engine’s oil levels. ...
- The Oil Pressure Light blinks constantly In some instances, the Low Oil Light will blink on and off when the oil pressure sensor is going out. ...
- Oil pressure gauge is at zero
How do you change a fuel sending unit?

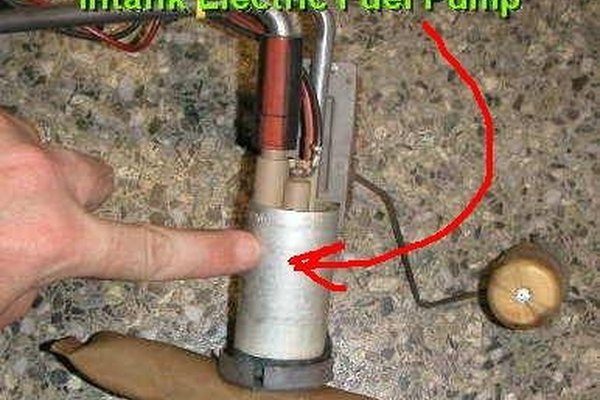

How To Replace An In-Tank Fuel Sending Unit
- Tools And Materials Needed:
- Definition And Description Of A Fuel Tank Sending Unit. A Fuel tank sending unit is a term for the mechanical assembly inside your fuel tank which measures the level of ...
- Reasons To Replace Your Fuel Tank Sending Unit. ...
- Ordering And Replacing Your Fuel Tank Sending Unit. ...
- Steps Involved. ...
How do you replace fuel pump and sending unit?
- Flathead screwdriver
- Phillips head screwdriver
- Hammer
- Open end wrenches
- Replacement fuel tank sending unit
Can a fuel sender unit be repaired?
fuel senders There is only one type we cannot repair which is the capacitance type used in all XD-XF Falcons and a few other micellaneous vehicles. We can however offer a solution which replaces the operational element of these senders without loosing the fuel delivery component.
How do I fix my fuel gauge sending unit?
0:182:58How to Fix a Gas Gauge (Sending Unit Replacement) - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo the first thing to do is decipher the gas out of the tank now some guys suck it in that'sMoreSo the first thing to do is decipher the gas out of the tank now some guys suck it in that's dangerous you could swallow gas. So I use a suction pump. To start it then put it in the tank.
How do I test a fuel sending unit?
0:022:20How To Test A Fuel Level Sending Unit - YouTubeYouTubeStart of suggested clipEnd of suggested clipHow to test fuel level sending unit but you'll need a voltmeter a sending unit and two alligatorMoreHow to test fuel level sending unit but you'll need a voltmeter a sending unit and two alligator clips make note that you'll want to test the sending unit in the same. Position it will be in the tank.
How do I know if my fuel gauge or sending unit is bad?
A faulty fuel gauge sender may cause the gauge to suddenly change positions, or give an inaccurate reading. The gauge may appear to be at three quarters, and then only a few minutes later will change to half full, or vice versa the gauge may appear to be full, only to have the gauge climb higher a short while later.
What causes a fuel gauge to stop working?
The most common reason a fuel gauge is not working or is inaccurate is due to a bad fuel level sending unit. It can also be caused by bad wirings between the gauge and fuel sender or a blown fuse to the fuel gauge. The fuel gauge itself can also be damaged.
Is there a fuse for fuel gauge?
Particularly if you are experiencing an issue with more than one gauge on your vehicle, the culprit may be a fuse. If the fuse for the instrument panel has been blown, make sure to replace it. Then go ahead and turn on the car. If the fuel gauge doesn't sort itself out automatically, run the cluster test again.
How much does it cost to replace fuel sending unit?
The average cost to replace a fuel gauge sender is between $800 and $1,000. The labor costs around $150 to $200, while the parts account for $650 and $800.
Is a fuel sending unit the same as a fuel pump?
The fuel sending unit located in the gas tank to measure the fuel tank level. Some sending units are attached to the fuel pump assembly, while others are stand-alone units, but both are made up of the same three components: a float, a metal rod/arm, and a variable resistor.
How do I reset my fuel gauge?
5 days agoPress and hold the "Trip/Odo" button again until the Odometer says "1." This means that the reset process has begun. Keep holding the button down while the fuel gauge resets. Release the "Trip/Odo" button once the reset is complete. You'll know the process is finished when the Odometer display moves back to normal.
What happens when a fuel pressure sensor goes bad?
Engine stalling might occur as the fuel rail pressure sensor goes from bad to worse. You will be driving and then suddenly, your engine will stall. It may also stall while idling. This will make driving extremely difficult (and dangerous) and it should motivate you to do something about it.
How do you unstick a fuel pressure regulator?
0:015:00Fixing a stuck pressure regulator - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo you're actually going to be putting pressure on the threads you're trying to break loose. Or do aMoreSo you're actually going to be putting pressure on the threads you're trying to break loose. Or do a tool shop you get yourself a cheap a wrench the size of your regulator.
What are the symptoms of a bad fuel sensor?
Common signs include the Check Engine Light coming on, the car not feeling right when running, and issues with starting the car.
How much does it cost to fix a fuel level sensor?
How Much Does a Fuel Level Sensor Replacement Cost? The cost of a fuel level sensor replacement can vary depending on different factors. Parts alone can cost anywhere between $20 and $270, according to your vehicle's year, make, and model. Part cost can also change if you're buying an individual piece, set, or kit.
How much does it cost to fix a fuel gauge?
If you want to go to a repair shop, expect to spend about $200 to $300 on labor if you buy the new gauge on your own. A dealership will charge even more, with some sources stating that you'll pay between $300 and $1,000 depending on the make and model of your vehicle.
What to do if fuel gauge does not read?
Problems often involve incorrect grounding and inadequate power. If the gauge does not read at all, check the power with a multimeter at the gauge terminal. Test between the positive terminal on the fuel gauge and a good ground; the reading should be 12 volts. If it isn’t, check the ignition circuit.
How does a tank sensor work?
How Tank Sensors Work. Most sensors have a mechanical floating arm and a rheostat. When the arm is all the way down, in the “empty” position, the resistance in the circuit to the gauge is near zero. As the arm rises, resistance in the circuit also rises to around 200 Ohms.
How to check if a wire is faulty?
To check the wire, disconnect it from both the sender and the “S” pin on back of the gauge. Set your multimeter to the Ohms scale and check the resistance within the wire . If there is no resistance (as close to zero Ohms as possible), the circuit is good and the sender is faulty.
What to do if your ignition gauge isn't working?
If it isn’t, check the ignition circuit. If that reads 12 volts, turn off the ignition. Then use the Ohm scale on your multimeter to check continuity between the ground terminal on the gauge and ground; the reading should be at or near zero Ohms. If not, recheck the ground circuit.
What should the gauge go to when it is working?
When you do this, the gauge should go to its lowest reading. If it does, it is working properly. If the gauge is good, the next step is to check the other system components, as either the wire running to the sender or the sender itself must be faulty.
Do fuel gauges need to be matched?
In most cases, the sender and the fuel gauge need to be matched to the resistance in the sender’s rheostat, so to be completely sure you are getting accurate readings, replace both the sender and the gauge. Several companies provide pre-packaged “ready-to-go” installation kits.
How many gallons of gas did the 289 gas station have in 1969?
Even the 289 and 302 were relatively thirsty, and gas stations are not on every corner the way they used to be. In 1969 capacity was increased to 20 gallons and then up to 22 gallons in 1970. Still not much range with a 351, 390, 428, or 429! Fuel Sending units came in two varieties. The low fuel sender has two posts and a built in thermistor.
What is the function of the prove out light on a car?
When you turn the ignition key to the start position, the light should come on while the engine is cranking over. This is called the prove out function. It proves that the light bulb still works.
Why is a bullet polished?
The bullet is them polished to insure a good electrical connection. A new more durable thermistor is installed and carefully soldered into place. The bullet is then soldered back on to the main tube bracket. The resistor enclosure is reassembled and then the first round of testing begins.
Is a fuel sender interchangeable?
The sender for each year is different from ’67 to ’70 and then the same from ’71 through ’73. In general they are not interchangeable unless you use the matching gas tank. Many of our cars are still running the original fuel sending unit.
5 Causes of a Fuel Gauge Not Working Correctly
The sending unit is where the whole process begins. As your vehicle runs, the sending unit is constantly monitoring the level of fuel in the tank. However, this constant use means that it is prone to wear.
How Does a Fuel Gauge Work?
The fuel gauge contains three vital parts that work together seamlessly. The gauge that you see relies upon the circuit and sender for information. If any one of these parts fails, the gauge could read wrong.
How to Test the Fuel Gauge
Read your owner’s manual to determine if your instrument cluster has a self-test procedure. While every vehicle from the early 1990s has a procedure, it’s different with every make and model.
Fuel Gauge Replacement Cost
Depending on the cause, fixing a bad fuel gauge can cost between $10 and $800. The least expensive fix would be to replace a blown fuse, which might only cost you $10 and you can easily do it yourself. If the fuel gauge is damaged, you can replace it for between $50 and $200, as long as you can perform the labor yourself.
