Instructions: Clear away mulch and leaves from around the motor air vents. Shut off power at breaker and tighten all wire connections. Check that they do not break motor wires, wet, or touching each other. When it has continuously these problems change it or repair it. Replacing A Hayward Pump Motor
How do you replace a Hayward pool pump?
- Using a flathead screwdriver, begin to pry one side of the lock ring assembly 'out-and-up' towards the top of the body.
- It may take at least 2 or 3 screwdrivers to begin lifting the lock ring assembly over the lip it rides under.
- After clearing the lip at the starting point, begin working your way around the lock ring assembly until you free it.
How to troubleshoot a Hayward pool pump?
Low readings on the filter pressure gauge
- Low readings on the filter pressure gauge If your gauge is reading low, it could be due to a clogged skimmer basket or pump strainer. ...
- Constant leaking We talked about the ways to check for leaks and how to fix them. ...
- Constantly losing prime
How do you bachwash a Hayward pool pump?
To backwash a sand filter:
- Shut off the system
- Clamp the backwash hose to the water outlet
- Position the backwash valve to either push or pull—the water will flow through the hose or the equipment
- Turn the handle to the backwashing position
- Backwash for a few minutes or until the water clears
- Turn off the system to stop the backwashing process
- Roll up the hose
How to replace a Hayward pool pump motor?
Pump Replacement. This series of product cross reference charts is intended to help you find the closest suggested Hayward replacement for other manufacturers’ equipment. Recommended replacement product may not be an exact feature match - they may include enhancements.
Can pool pump be repaired?
Most of the new generation of pumps are already equipped with automatic controls and safety features. In fact, if you take enough time to learn the manual, you might find yourself able to repair some of the problems on your own. Of course, there are repairs and replacements are best left in the hands of professionals.

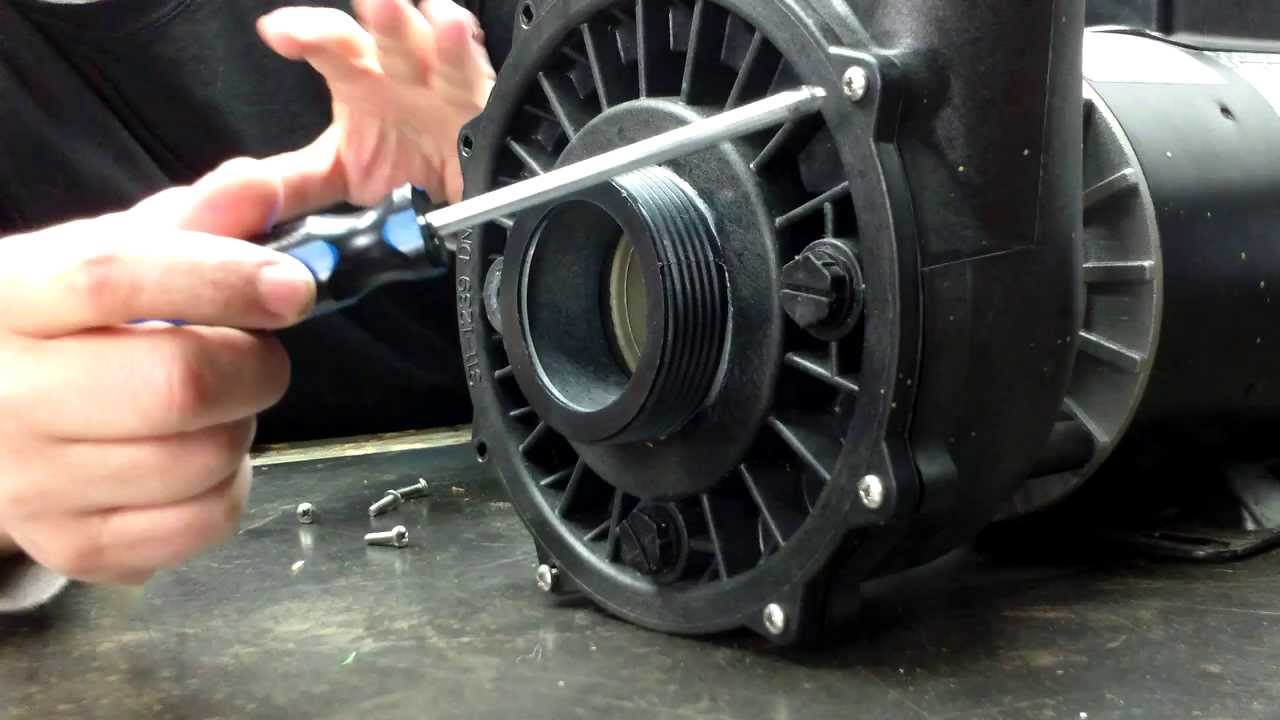

How do you take apart a Hayward pump?
0:471:56Poolandspa.TV Swimming Pool And Spa Pump Repair Series - YouTubeYouTubeStart of suggested clipEnd of suggested clipOkay you're going to keep your wrench right there I'll brace against the side here you're going toMoreOkay you're going to keep your wrench right there I'll brace against the side here you're going to turn your pump to the side keeping your wrench there. And then you can grab the impeller.
Why is my Hayward pool pump not working?
Check all connections, circuit breakers, and fuses. Repair or replace any tripped breakers or blown fuses. Inspect the motor shaft for any obstructions. Remove the pump and basket, then look for and remove any debris in the shaft.
How do I know if my Hayward pool pump is bad?
Don't Wait to Call for Swimming Pool Pump ReplacementAge. Yes, the age of your pump is an early trouble sign. ... Noise. Your pool pump should run quietly. ... Power Trip. Has your pool pump motor started to trip your electric breaker box more and more frequently? ... Swimming Pool Pump Motor Keeps Shutting Off. ... Loss of Suction.
How do you fix a broken pool pump?
1:294:58POOL PUMP Not Working? How To Fix 6 Common Pump ProblemsYouTubeStart of suggested clipEnd of suggested clipIf you have a leaky pump look for any seals that need replacing like the o-rings in the impeller.MoreIf you have a leaky pump look for any seals that need replacing like the o-rings in the impeller. Housing the thread sealant or the shaft seal.
How do you free up a seized pool pump?
A seized motor will try to start, making a humming or buzzing sound, and eventually, usually, trip the breaker. The solution is to get a wrench on the back of the shaft, under the centrifugal switch, and repeatedly move the shaft back and forth to break the rust bond. It sometimes takes 5-10 minutes to free it up.
Why did my pool pump suddenly stop working?
It could be something blocking it, a dirty pool filter, or too much air in the system. If there's something blocking your pump's suction, check your filter gauge. If it's 10psi above the normal reading, clean your filter. This will reduce pressure and reset your pump's flow.
How do you know if your pool pump motor is bad?
Your pump could be leaking water, or the bearings might need to be replaced instead of the entire motor. Screeching is also a sign that your motor bearings need to be replaced. These loud, often painful sounds could also be a sign of rust or oxidation, making it more difficult for the bearings to do their job.
Why isn't my pool pump pumping water?
The most common reason for low or no flow is that the baskets are full of debris. By checking and emptying both the skimmer basket (by the pool) and the pump basket (inside the pump) will free up the water flow, allowing the system to fully 'prime' and function at full capacity.
How long do Hayward pool pumps last?
eight to 12 yearsOn average, pool pumps last eight to 12 years before needing replacement. Over time, it's normal for pool parts to begin to wear down.
Why is my pool pump humming and not working?
If your pump doesn't turn on and instead makes a humming sound, it could be a problem with your capacitor or a jammed motor. But if it makes a humming sound that continues until your circuit breaker trips, you can be fairly certain it's a flawed capacitor.
How long should a pool pump motor last?
Most pool pump motors last at least 6-8 years, often longer. But that's if you're referring to magnetic drive pool motors, which are used in newer variable speed pumps.
How do you open the lid on a Hayward pool pump?
The best and safest way to undo a tight pool pump lid is to use a pool pump lid wrench. Fasten the wrench securely on the pump's lid, and twist it anti-clockwise. It offers a firm grip making it easier to undo tight lids.
How do you replace the switch on a Hayward pool pump?
0:000:56Installing Motor Cover and Switch Hayward Power Flo Martrix PumpYouTubeStart of suggested clipEnd of suggested clipBy two wires yellow and blue and. So all you have to do is just take off the yellow and blue wireMoreBy two wires yellow and blue and. So all you have to do is just take off the yellow and blue wire attach them to the new. Cover place the cover on the back of the motor.
How do I remove a Hayward pump home?
0:161:13How To Remove The Hayward Super Pump Housing - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou can separate the one end goes like that and here you have the diffuser. Your diffuser gasket.MoreYou can separate the one end goes like that and here you have the diffuser. Your diffuser gasket. Now if you pull through the fuser will just give it a little pop just like that.
How do you remove a pool pump home?
0:149:56How To: Replace An Above Ground Pool Pump Motor - YouTubeYouTubeStart of suggested clipEnd of suggested clipFirst. You can remove the basket. And there's a little clip on the inside that holds the strainerMoreFirst. You can remove the basket. And there's a little clip on the inside that holds the strainer pot to the rest of the housing.
Why does my pump have a breaker?
If the breaker trips while the pump is running, the pump is likely drawing more amperage or voltage than the breaker rating . This could be caused by incorrect voltage or from clogged or restricted pipes, valves or impeller. It could also be just a bad breaker.
What happens when a pump trip a breaker?
When the breaker trips when trying to turn on the pump, most likely the motor shaft is frozen, the impeller is stuck, or the capacitor has blown. In some cases, it can be a bad breaker, especially one that is used often to turn the pump on and off.
How long does a Hayward pump run?
Pump only Runs for 5 seconds. If your Hayward pump runs for only 5 seconds and shuts off, check the incoming voltage. Most inground Hayward pumps are shipped to accept 230V, and if you only give it 115V, it can’t get up to speed.
What to do if pump won't start?
If the pump won’t start or run, check these things. If the motor does not turn on, check the breaker and timeclock switches. If the motor hums but does not start, check that the shaft is free-spinning, then check the capacitor. If the motor makes no noise at all, check the wiring and terminal connections.
What causes a pool pump to leak?
On the plumbing side, you can have problems with air leaks, water leaks or just getting the water to flow properly.
Why does my pump motor make a humming noise?
Makes Noise: If the pump motor makes a humming sound when trying to start, you likely have a bad start capacitor.
Why does my pump shut off?
Other causes of a pump shutting itself off include loose or broken wires or incorrect voltage, more than 10% more or less of the rated input voltage. In most cases however, a motor that is over-heating tends to be defective beyond repair, when caused by an internal short across the motor windings.
