How to Repair Lath & Plaster Walls
- Scrape off the loose or damaged plaster around the edge of the area to be repaired, using your putty knife, while leaving the exposed lath in place.
- Spread patching plaster into the damaged area with your putty knife, putting the plaster directly on the exposed lath.
- Cut several strips of mesh drywall tape to the length of the damaged area, using a razor knife. ...
- Apply another thin layer of plaster, bringing the damaged areas almost level with the surrounding surface.
- Apply a final layer of plaster, this time leveling it out completely with the surrounding wall and spreading the plaster with your drywall knife so it extends out ...
- Sand the plaster by hand, just enough to smooth it out. The repaired area is ready for repainting.
...
Patch Holes in Plaster in 7 Steps
- Force base coat into the lath. ...
- Fill the area so it's flush. ...
- Paint on a bonding agent. ...
- Tape the joints. ...
- Coat the tape. ...
- Finish with joint compound. ...
- Sand smooth.
How to repair plaster walls in 6 Easy Steps?
6-inch Drywall knife; Drywall paper tape; Drywall joint compound; Sanding paper or sponge 80 to 150 grit; After you have gathered all of the supplies and did a thorough clean-up of the working area, we can begin working on the walls. Step 2: Scrape The Crack – After all of the preparation is done, you first need to get a scraper out of your toolbox.
How to patch a plaster and lathe ceiling?
Steps for patching a plaster and lathe ceiling:
- When originally installed, wood lathe was nailed to the ceiling joists. ...
- One option is to cut out the damaged area and install a 3⁄8” thick sheet of blue board and plaster.
- Cover the work area with drop cloths and work off of a rolling scaffolding platform, which can be rented or purchased.
How to strip wallpaper from plaster and lath?
- Lay down some newspaper or a tarp to protect your floor and catch drips and pieces of wallpaper.
- Have a garbage pail nearby for the wallpaper strips, so you can easily collect them in one place as they come off the wall.
- Have a ladder handy if your walls extend above where you can reach.
How to replace lath?
Things You Will Need
- Heavy work gloves
- Safety goggles
- Dust mask
- Ladder
- Hammer
- Crowbar
- Flat-blade spade
- 33-gallon plastic trash can
- Shovel
- 5-gallon buckets
Can plaster lath be repaired?
0:1218:55Restoring Original Plaster - how to repair lath and broken plasterYouTubeStart of suggested clipEnd of suggested clipAnd we glue that right back to where it was first thing we want to do is to reattach these two theseMoreAnd we glue that right back to where it was first thing we want to do is to reattach these two these two pieces of wood I'm going to pre-drill this one so it doesn't split the laugh any.
How do you repair cracks in plaster and lath walls?
Using a 3/16-inch masonry bit, drill a hole in the plaster about 2 inches from the crack. When you hit lath, stop—the bit won't go through wood—pull out the bit, and drill another hole about 3 inches from the first and about 2 inches from the crack. Try to hit a strip of lath with every hole you drill.
What is the best fixing for lath and plaster?
If you are intent on fixing to a lath and plaster ceiling, you should screw directly into the studs. Finding the studs may require the use of a strong magnet, as it will be attracted to the metal of the nail heads that fix the laths in place.
How do you repair old plaster walls?
4:4815:23How to Patch and Plaster Walls in Your Old House - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd the patch are too dry they will absorb the moisture from your wet plaster and your plaster willMoreAnd the patch are too dry they will absorb the moisture from your wet plaster and your plaster will dry too quickly and it will crack. So we want to keep that spray bottle handy.
Should I replace lath and plaster with drywall?
So should I replace Lath and Plaster with plasterboard? When you compare the two, it is quite clear why modern drywall techniques and plasterboard have superseded lath and plaster construction. It's simply much faster, more efficient and cheaper to replace lath and plaster with pre-manufactured plasterboard.
Can you skim over cracked plaster?
2 Answers from MyBuilder Plasterers Yes use skim, but scrape out crack 1st with a knife or scrapper, on its edge . PVA the cracks then fill little bit of bonding then put the tape on. Use two coats of easy fill or multi-finish over the top.
How do you attach plaster to lath?
Plastic wall anchors don't work with lath and plaster walls. Instead, use plaster anchors made of metal like a molly bolt or a toggle bolt. Be sure to use one that's long enough to get behind the plaster and lath. When drilling into plaster, you'll need to use a masonry bit.
Can I screw into lath?
You'll find it virtually impossible to make a firm fixing into lath and plaster so put your screws into the wooden studs which run floor to ceiling at around 14 inch intervals for the length of the wall. This can and does vary up to around 16 inches.
How do you stabilize crumbling plaster?
3:305:21Repairing a crumbling plaster wall - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd run it along one of the studs. And I'm going to use some shims to put up there so I just run aMoreAnd run it along one of the studs. And I'm going to use some shims to put up there so I just run a lot a bead of liquid. Nail just to hold the shim in place until.
Can you plaster over old plaster?
If the plaster is very old and damaged, you will need to fix any cracks and holes before plastering over it. You can fill smaller holes and cracks in a wall using a sealant such as Caulk. Larger holes and cracks will have to be filled with plaster and mesh, which may be a job for a professional.
Can you patch plaster walls with joint compound?
Drywall compound works excellently for patching plaster walls. For best results, fill large areas of damage with a setting-type joint compound. Follow up with 2–3 coats of joint compound, sanding carefully between coats. Then, finish by skim-coating the patch with a topping compound.
Why does lath and plaster crack?
A: Old lath and plaster walls are prone to cracking. Over time the plaster separates from the lath, creating structural cracks. Plaster is also prone to thinner spider-web cracks, which occur when the topcoat of the plaster degrades. It's common to have both kinds of cracking — and both types can be repaired.
How do you repair large plaster cracks?
0:273:19How to repair a crack in plaster - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo I'm cutting out a v-shape using a sharp knife the full length of the crack. Once the crack hasMoreSo I'm cutting out a v-shape using a sharp knife the full length of the crack. Once the crack has been enlarged I'm going to push out any loose material from the crack using an old pen. Brush.
Are cracks in plaster walls normal?
If your home has walls that are plastered, then straight vertical cracks typically form when the plaster expands in humidity and shrinks as it dries. These are normal and are usually the type of cracks you'll find in a new build property.
How do you repair a crack in a plaster and lath ceiling?
3:557:58How to Patch a Plaster and Lath Ceiling | Ask This Old HouseYouTubeStart of suggested clipEnd of suggested clipAnd cut the patch to fit the hole. And the patch is made of 3 8 drywall the thickness of the plasterMoreAnd cut the patch to fit the hole. And the patch is made of 3 8 drywall the thickness of the plaster on the ceiling. Perfect i'll attach it with some inches 5 8 drywall screws.
Estimated Time
You just gotta love plaster. That rock-hard substance, which was applied to the walls and ceilings of nearly every house in this country until the 1950s, gives us surfaces that are seamless, mold resistant, fire resistant, and noise deadening.
1. Drill Into the Plaster
Using a 3/16-inch masonry bit, drill a hole in the plaster about 2 inches from the crack. When you hit lath, stop—the bit won't go through wood—pull out the bit, and drill another hole about 3 inches from the first and about 2 inches from the crack. Try to hit a strip of lath with every hole you drill.
2. Prime and seal
Put on safety goggles and disposable gloves, then spray-pump a stream of the acrylic conditioner into each of the holes (but not into any you've marked). One or two squeezes should be enough.
3. Inject the adhesive
Place the adhesive tube's nozzle in one of the primed holes. Gently squeeze the caulking-gun trigger until the creamy glue fills the hole and a little backs out around the nozzle.
4. Clamp the wall
Slip a 2-inch plastic washer over a 1 5/8-inch drywall screw, and drive it into the lath through one of the adhesive-filled holes. The screw pulls the lath against the plaster's back side while the washer gives the screwhead a wide clamping surface.
6. Fill the crack
Mix up a small batch of setting-type joint compound and use it to fill the crack and all the holes. Smooth the wet compound with a trowel; then, as it begins to harden, wet it and smooth it again.
How to repair plaster that is more than 1/8 inch?
If the plaster gives more than 1/8 of an inch when gently pressed, plan on repairing with an adhesive kit. You can use a two-part adhesive system which requires you to drill holes every 3 inches into the damaged area of plaster, but not through the lath. A masonry drill bit will go through the plaster not through the wood.
What is plaster wall made of?
Unlike drywall which attaches directly to wall studs, plaster walls consist of two sections. First, lath attached to the wall studs. While lath can be made of metal and stone, you will most likely encounter wood lath. Wood lath consists of a series of horizontal wood strips, approximately 2 inches wide, with a small gap between each slat.
How wide is wood lath?

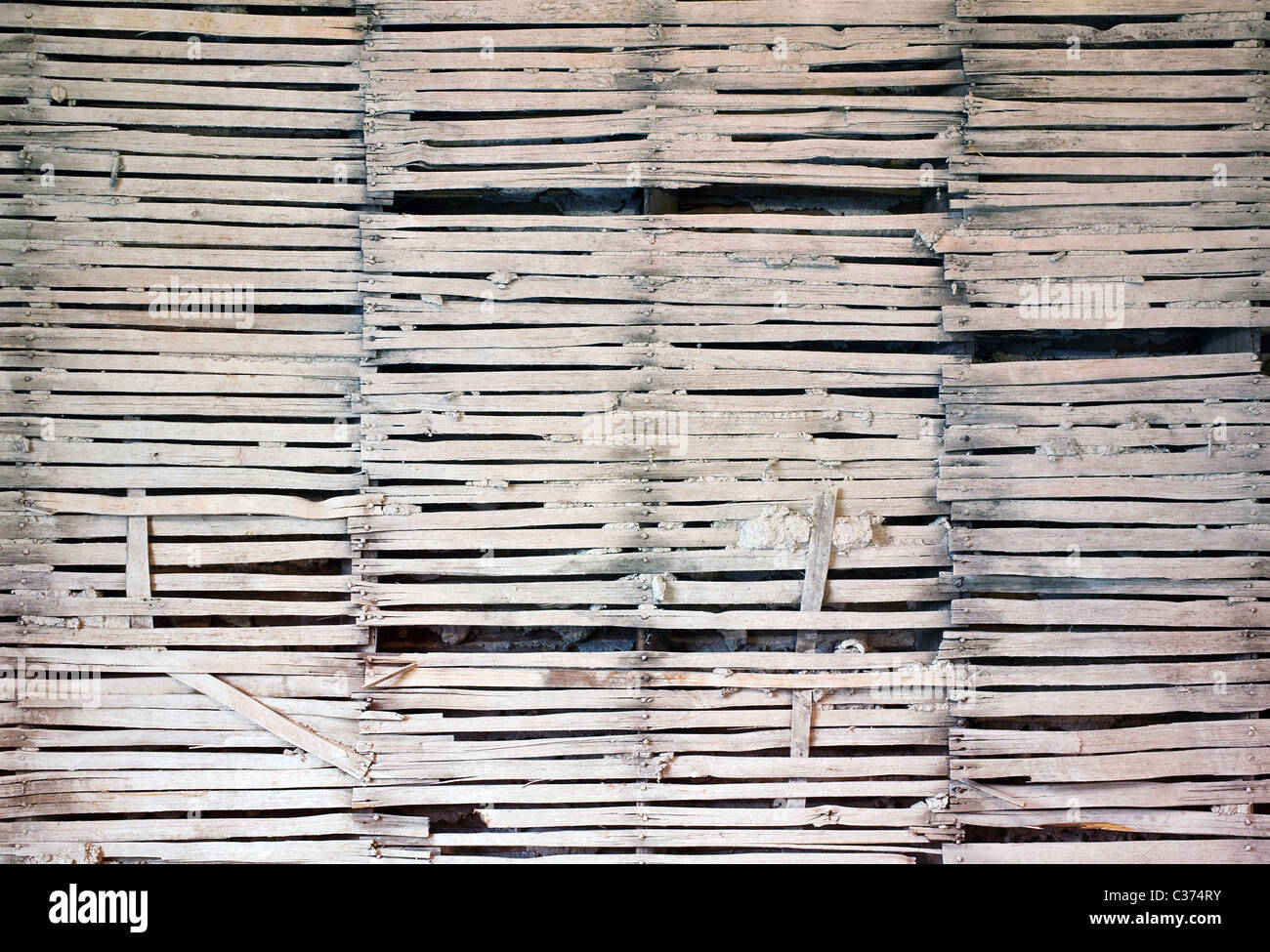

Wood lath consists of a series of horizontal wood strips, approximately 2 inches wide, with a small gap between each slat. When the scratch coat, or first coat of plaster, is applied, the contractor forces the mixture through the gaps to form tabs known as keys that hold the plaster to the lath.
Can you replace plaster with drywall?
Despite what you may have been told, you do not have to rip out the old plaster and replace it with drywall. That said, if drywall cracking or surface distortion is severe or there are other indications of significant settling or potential structural ...
Can you use joint compound on plaster?
Working with plaster is tricky: the surface must be wet before you can apply it. If you prefer, you can use joint compound, commonly used to finish drywall. Whichever you choose, be prepared to apply at least two coats, as both have a tendency to shrink while drying. Thomas Ferraioli began writing in 1993.
Can a drill bit be used to drill through plaster?
A masonry drill bit will go through the plaster not through the wood. A conditioner is sprayed into each hole, followed by an injection of adhesive. Finally, a plaster ring is drilled into the lath which pulls the wall tight to the wood. Once the adhesive has set, usually overnight, the plaster rings can be removed.
How to get water out of plaster?
Dry lath and the exposed plaster edge will suck water out of wet plaster before it has a chance to harden. To prevent this, saturate those surfaces with conditioner. Wipe up any drips or overspray with a damp rag. Wait until the conditioner dries—about 20 minutes—before going to Step 4. Step 4.
How long does it take for plaster to set?
Wait until the scratch coat is firm to the touch—about an hour—then mix up a new batch of plaster to a slightly thinner consistency—closer to that of buttercream frosting. Use a plastering trowel to smooth the mix flush with the wall surface; scrape any excess off the wall. Wait another hour for that coat to set. Step 6.
How to fix a hole in a wall that is leaking?
If it misses, pencil a mark by that hole. Vacuum the holes and spray them with plaster conditioner. Wait 15 minutes, then fill all unmarked holes with a squirt of plaster adhesive. Wipe off the excess with a damp rag.
How to patch plaster with peanut butter?
In a clean bucket with cool tap water, mix Plaster Magic patching plaster to the consistency of natural peanut butter. Using a margin trowel, smear the mix against the old plaster edge, as shown, and over the lath. Keep this layer recessed by half the thickness of the original plaster. Rough up the patch by scratching it with a scarifier, then scrape any blobs off the wall.
What is lath and plaster?
Lath and plaster refer to an interior wall construction technique that typically predates the 1940s. Four-foot-long strips of wood lath, typically 1-inch wide, are nailed directly to the open wall studs. The lath is then embedded with three layers of wet plaster.
How long does it take to build a lath wall?
How Lath and Plaster Walls Are Built. Building lath and plaster walls requires several days due to the length of time it takes for thick plaster to cure. Though lath-building can nominally be thought of as carpentry, most plasterers are adept at nailing up lath. So only one team of workers is needed for the project.
What is the difference between drywall and plaster?
Essentially, drywall acts the same way as lath and plaster walls: a mineral-based substance that creates privacy, deadens sound, and insulates. The chief difference is that the plasterwork, or the wet work, has already been done in a factory, not on site. Thus, the term dry wall.
How thick is fire rated drywall?
Fire-rated, or Type-X, drywall is 5/8-inch thick. Plaster is often thicker than this. When lath is figured into the thickness, then lath and plaster walls are considered to be thicker than drywall.
How wide is lath?
Lath is rough, unfinished wood about 1-inch wide and about 4 feet long or even longer. Longer lath strips allow the lath to go up faster.
Can drywall be repaired?
They tend only to be repaired, not built from scratch. Drywall has supplanted plaster and lath as the wall covering of choice. But if your home does have this older interior wall-building system, you may be curious about how it is constructed and how it compares to drywall.
Does lath go up faster?
Longer lath strips allow the lath to go up faster. But since lath is ripped from lower-quality wood, long sections of acceptable wood may not be available. Sometimes, in lieu of wooden lath, this base surface is a metal grid.
