How to Fix a Rack and Pinion Leak
- Get a Price Quote. The first thing that you should do when you notice a rack and pinion leak is take it to a local auto repair shop for a ...
- Locate the Leak. When fixing the leak by yourself, you must locate the source of the leak. ...
- Invest in Leak Stop. ...
- Ensure All Areas Are Covered. ...
- Find a Professional. ...
Full Answer
How do you replace the rack and pinion Assembly?
Replacing the Rack and Pinion Assembly. 1. Raise and support the vehicle with jack stands under the frame rails behind the front wheels after blocking a rear wheel. 2. Disconnect the steering joint between the steering column and rack and pinion assembly.
What happens if the rack and pinion goes out?
It is extremely dangerous for a rack or pinion to go out because the power steering system in your vehicle uses the power steering pump to pressurize power steering fluid and send it down to your rack and pinion.
How do I Stop my rack and pinion from leaking?
We recommend using the BlueDevil Power Steering Stop Leak to seal your leaking rack and pinion. To start, you will add 1/3 of the bottle into your power steering reservoir, and should expect to start seeing improvement after 100-200 miles of driving. Thank you!
What is a rack and pinion used for?
The rack and pinion is used to transfer the rotary motion of turning your steering wheel into the linear motion your tie rod uses to push your steering knuckle in and out which causes your front wheels to turn your vehicle.
How much does it cost to repair rack and pinion?
Overall, you can expect to pay around $1,800 to fully replace a rack and pinion steering system. Like most car issues, the exact price will depend on your car's age and your mechanic's location. You can expect to pay between $1,200 to $1,500 for parts and between $300 to $1,000 for the labor.
Can a rack and pinion be repaired?
Repair options for a leaking rack and pinion system with power steering. Rack and pinion leaks are often expensive to fix as the seals are difficult to service, even by a mechanic. Most leaks are solved by replacing the entire rack and pinion system to ensure the system works correctly.
How do you fix a leaking steering rack?
0:181:27How to Fix a Power Steering Leak with K&W® STEER-X ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipStart your car and turn the steering wheel back and forth a few times to move steer X through theMoreStart your car and turn the steering wheel back and forth a few times to move steer X through the system. And you're good to go just monitor the leak.
Can I drive with a damaged rack and pinion?
When they perform defectively, it can spell trouble and make your steering faulty and unreliable—this is what happens when the rack and pinion goes out. It is advised not to drive in this condition.
Does Lucas power steering Stop leak work on rack and pinion?
It is 100% GUARANTEED to stop seal leaks in power steering units or your money back. Totally corrects rack and pinion problems. It is also totally effective in reducing slack, squeals and hard spots in worn rack and pinions. Your results will be immediate and long lasting.
What causes rack and pinion problems?
If there is a crack in a line, the power steering rack and pinion can fail. Loose connections: With use, connections in the system may loosen. The vibrations of the automobile and its travels can shake things loose. If maintenance or repairs are completed improperly, this may also result in loose connections.
What happens when rack and pinion leaks?
Any fluid leak from a vehicle's rack and pinion poses the risk of eventual unit failure. As fluid is lost, hydraulic power within the rack and pinion itself is reduced. This will cause a vehicle's steering to stiffen, requiring additional force to be exerted upon the steering wheel to negotiate turns.
How do you temporarily fix a power steering leak?
1:264:12How to Fix a Power Steering Leak on Your Car - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis arrived really quickly and then I just had to screw in the new switch. And reconnect theMoreThis arrived really quickly and then I just had to screw in the new switch. And reconnect the electrical connector. Very simple things speaking of simple fixes.
How can you tell if rack and pinion is bad?
0:082:34Signs Of Failing Steering Rack In Your Car | Auto Info Guy - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf you're steering rack and pinion wear out the steering will feel loose you will also notice thatMoreIf you're steering rack and pinion wear out the steering will feel loose you will also notice that the car wanders at high speed. And it is hard to keep it in the lane.
How many hours does it take to replace a rack and pinion?
4-6 hoursReplacement is typically the most cost effective solution. The process for replacing a rack typically takes 4-6 hours, make and model variances differ or course.
How do I know if my rack and pinion or power steering pump is bad?
How to Tell If a Power Steering Pump Is Bad: 5 Warning Signs You Need to Know AboutYour Car Makes a Whining Noise Any Time You Turn the Wheel. ... Your Car's Steering Wheel Is Slow to Respond. ... Your Car's Steering Wheel Is Stiff. ... Your Car Makes Squealing Noises When You Turn the Key in the Ignition.More items...•
How do you know if your steering rack needs replacing?
Bad Steering Rack: Signs To Look Out For!Your Car Wanders From Left To Right. Whether you're cruising or booting it, if you find your vehicle wandering a little, this may be a symptom of a faulty steering rack. ... There Are Grinding Noises When Steering. ... A Smell That Resembles Burning Oil. ... A Power Steering Fluid Leak.
How can you tell if rack and pinion is bad?
0:082:34Signs Of Failing Steering Rack In Your Car | Auto Info Guy - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf you're steering rack and pinion wear out the steering will feel loose you will also notice thatMoreIf you're steering rack and pinion wear out the steering will feel loose you will also notice that the car wanders at high speed. And it is hard to keep it in the lane.
How many hours does it take to change a rack and pinion?
4-6 hoursReplacement is typically the most cost effective solution. The process for replacing a rack typically takes 4-6 hours, make and model variances differ or course.
What causes steering rack failure?
The two reasons why steering racks fail are fluid contamination and steering pump wear. Your steering rack plays a very important role in your vehicle and is an essential part of allowing you to control it safely.
Can you drive with a leaking power steering rack?
So, can you drive with a power steering leak? Yes, technically you can but not for long because it will become increasingly more difficult to steer and extremely dangerous. Your best bet is to have a qualified technician assess your vehicle as soon as possible if you suspect a power steering leak.
Step 1 - Use Some Brake Fluid For A Temporary Fix
Many people who have had some leaks with the rack and pinion problems will put some brake fluid into the power steering reservoir. This will not re...
Step 2 - Park Car on Ramp
To get at the rack and pinion, you will need to crawl under the vehicle. A pair of heavy duty car ramps are a good option for safely lifting your c...
Step 3 - Clean Hoses
Take some time to clean the hose from the rack and pinion of any grease, dirt, and fluids. This will help you better determine where the leak is co...
Step 4 - Locate The Leak
Fill your power steering reservoir only slightly with fluid, briefly turn your vehicle back on, and turn your steering wheel back and forth for a f...
Step 5 - Drain Power Steering Fluid
Place a drip pan underneath the power steering unit, remove the bottom bolt, and drain out the fluid completely. You will always want fresh fluid i...
Step 6 - Replace Hoses
The power steering hoses that are connected to the rack and pinion are high pressure hoses that will be bolted into place, so you will need to remo...
Step 7 - Replace Gaskets
There are a few gaskets on the rack and pinion assembly that may need to be replaced if they are dried out and worn. Simply remove the old ones and...
Step 8 - Replace Rack and Pinion
Some leaks are caused because the rack and pinion is failing. When this happens you can use some Leak Stop to seal up some of the cracked areas, bu...
Step 9 - Refill The Power Steering Fluid
Now that your leak has hopefully been fixed with new hoses, new gaskets, and a new steering rack, it's time to refill your reservoir with fluid.
How does rack and pinion steering work?
However, most cars equipped with rack and pinion steering use a grooved shaft on the rack with a grooved coupler on the steering column. The other type is a flexible coupling. The flexible coupling separates easily simply by removing the nuts and bolts. The grooved coupling separates by loosening but not removing the clamp bolt and wiggling the coupling while pushing upwards. Quite often you will have to wait on this until the rack mounts are off.

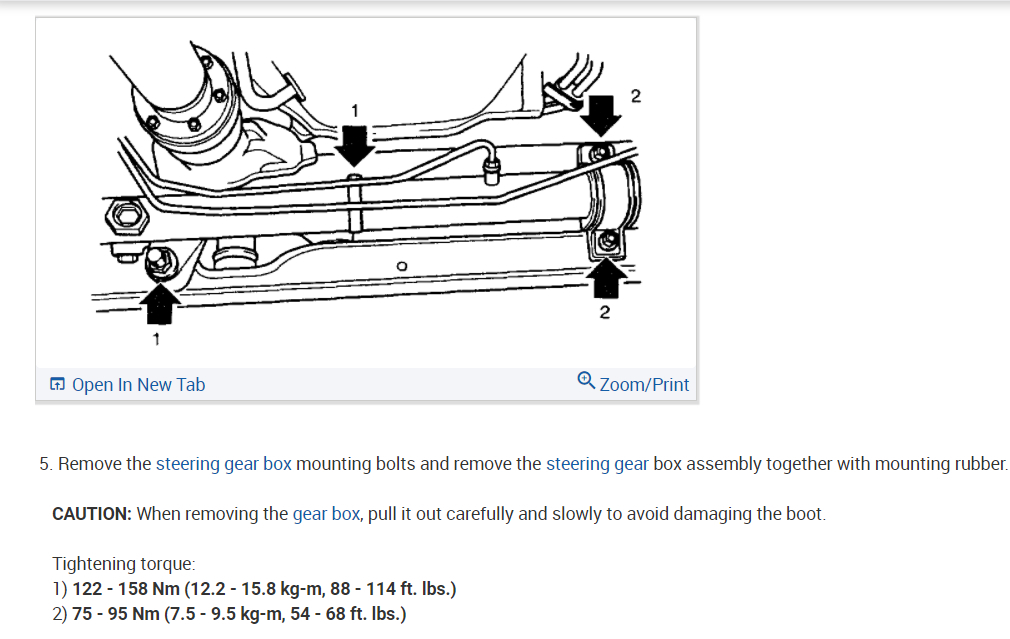

How to remove a rack from a car frame?
Loosen and remove the bolts securing the rack to the frame member. The nuts that the bolts thread into may be welded to the frame but there are some cars where you’ll need either two wrenches or a ratchet and a wrench.
What happens if the rubber in the steering wheel bushings breaks down?
Now you need to see if the rubber in the bushings has started to break down and weaken. If this happens, the rack can move around in the mounts , causing control issues as well as some steering wheel vibration. Have a helper yank the steering wheel back and forth while you observe the rack and bushings.
Why does my rack go bad?
The other way that rack units go bad is for the pinion preload spring assembly to wear out, causing excess clearance between the pinion and rack. This condition will show up as the wheels not beginning to turn immediately when you turn the steering wheel. You can fix this with the right parts and tools. However, some of the tools required are specialized and the manuals say you’ve got to pull the rack anyway to perform this repair. Checking this can be done in one of two ways:
How to get a rack to move?
Grasp the rack near one of the bushings and push and pull. Very minor, hardly noticeable movement is acceptable.
What is rack mount bushing?
Rack mount bushings are semi-hard shaped pieces of rubber that go between the steering rack and the rack mounts. Their purpose is to isolate the steering rack, and thus your hands, from oad vibrations which could over time cause your hands pain or numbness.
How to remove a power steering shaft?
If your car is equipped with power steering, pop the hood and remove the cap on the power steering pump/reservoir and stuff a clean rag into the opening to keep dirt and debris out of the system. Use the adjustable wrench (or an open-end wrench of the correct size) to break the tie rod shaft locknut loose at the outer tie rod end. Count the number of threads exposed on the tie rod shaft and write this number down for when you’re putting everything back together. Straighten and remove the cotter pin and remove the tie rod stud nut. Use the tie rod separator to remove the tie rod end from the steering knuckle. Put the nut back on loosely for safekeeping. Spin the rod end off the tie rod shaft and set this aside. Do this on the other side.
How does a rack and pinion work?
The rack and pinion is used to transfer the rotary motion of turning your steering wheel into the linear motion your tie rod uses to push your steering knuckle in and out which causes your front wheels to turn your vehicle . It accomplishes this task and gets its name by using both a rack and a pinion. The pinion is simply a small gear at the end of your steering column that rotates as you turn your steering wheel. The rack is a flat gear the pinion rests on, and as the pinion rotates its teeth mesh with the teeth on the rack which are pushed left or right creating the linear motion needed to turn the front wheels of your vehicle. To get a better idea of what a rack and pinion looks like, check out this article on how rack and pinions work.
What happens when rack and pinion goes out?
When a pinion is on the verge of failure it can be very difficult to steer, however, if a rack or pinion goes out you will lose complete control of steering . It is extremely dangerous for a rack or pinion to go out because the power steering system in your vehicle uses the power steering pump to pressurize power steering fluid and send it down to your rack and pinion. This high-pressure fluid is used to help the steering rack move as you turn the steering wheel so it isn’t so difficult for you to turn your wheels when your vehicle is moving slowly or stopped. Like any high-pressure hydraulic system, the power steering system used with your rack and pinion can be prone to leaks.
How does a rack and pinion leak happen?
It is possible that one of the hoses or lines in your power steering system can begin to leak either at the connection or due to the flexible rubber section cracking. However, it is more likely that your power steering system will develop a leak at one of the seals on your rack and pinion. There is a seal where your steering column enters the rack and pinion assembly, then a seal where each tie rod attaches. Each of these seals have to keep high-pressure power steering fluid contained while allowing the steering column to rotate and the tie rods to move as well. Over time these seals can dry out, shrink, crack or become unseated causing a leak.
Why are rack and pinion leaks expensive to fix?
The reason rack and pinion leaks are so expensive to fix is that the seals are often not serviceable, even by a mechanic. Most rack and pinion leaks will require the replacement of the entire rack and pinion assembly even if most of it works just fine. The good news is you do have another alternative to an expensive replacement. You can simply and quickly restore the seals in your rack and pinion without ever removing it. Adding BlueDevil Power Steering Stop Leak to your power steering reservoir today will start to seal your power steering leaks immediately and is guaranteed to permanently seal your rack and pinion leak within a few days of driving. BlueDevil Power Steering Stop Leak is specially formulated to revitalize and restore the seals in your power steering rack returning them to their original size and function to seal your leak. BlueDevil Power Steering Stop Leak will not harm or clog your rack and pinion and is safe to remain in your system until your next scheduled power steering flush.
How long does it take for a power steering stop to work?
As long as you are not losing power steering fluid too quickly, you would be a good candidate for the BlueDevil Power Steering Stop Leak ( https://store.gobdp.com/power-steering-stop-leak-00232/ ). You will start by adding 1/3 of the bottle into your power steering reservoir, and should expect to see results after approximately 100-200 miles of driving. Repeat the procedure if the leak persists after that.
How to find a rack and pinion leak?
To find your rack and pinion leak you can check these three seals relatively easily. The only difficult part is fitting underneath your vehicle but if you have ramps or a jack and jack stands that can be easily accomplished, just make sure your vehicle is secure before you crawl under! The rack and pinion should be one of the lowest components on your vehicle and will likely be just under your engine’s oil pan.
What is leaking from rack and pinion?
Is the leak coming from the rack and pinion seal or elsewhere? It’s possible one of the hoses or pressure lines has cracked and is leaking. A loose hose connection is also a possibility. It would be best to pinpoint the location of the leak and replace the affected component.
How to get rack and pinion?
To get at the rack and pinion, you will need to crawl under the vehicle. A pair of heavy duty car ramps are a good option for safely lifting your car enough to work under it. Place the ramps on a flat surface and carefully drive the front wheels of your vehicle onto them. When you reach the top, put the car in park and turn off the engine. Place wheel chocks behind the rear wheels and apply the emergency break so it does not accidentally roll while you're working.
How to fix a power steering leak?
Fill your power steering reservoir only slightly with fluid, briefly turn your vehicle back on, and turn your steering wheel back and forth for a few minutes. Then, turn the car off again and carefully inspect your power steering hoses and rack. Since you just cleaned your hoses, any new fluid on them should tell you the source of the leak.
How to remove power steering hose?
In this case, you can use a lubricant to help. Loosen the top bolt on the hose first before removing the bolt down by the steering rack. Then, fit your new power steering hose in place starting at the bottom and moving to the top. Get the bolts nice and tight again so you don't have to worry about problems later.
Why does my steering wheel leak?
Some leaks are caused because the rack and pinion is failing. When this happens you can use some Leak Stop to seal up some of the cracked areas, but you will need to replace the rack and pinion to stop the leaks entirely. Start by securing your steering wheel so it doesn't move when the rack is removed.
Why is my steering not working?
The power steering assembly in your car transfers the hydraulic power from the steering fluid to each of the wheels so your car will be more responsive and easier to direct when driving. After a few years of use, you may notice the steering is not as good as it was. This may be a result of fluid leaks, often in the hoses or as a result of a bad steering rack. When this happens, there is a lot you can do to fix the problem yourself.
Can you replace a rack and pinion gasket?
There are a few gaskets on the rack and pinion assembly that may need to be replaced if they are dried out and worn. Simply remove the old ones and make sure you buy suitable replacements. Then, refit them in the same spot and secure them.
How to replace a rack and pinion?
1. Raise and support the vehicle with jack stands under the frame rails behind the front wheels after blocking a rear wheel. 2. Disconnect the steering joint between the steering column and rack and pinion assembly.
What Is Rack and Pinion Steering?
Rack and pinion steering is one of two types of steering systems in use on motor vehicles. When a rack and pinion assembly wears, steering feel and capability diminishes. We'll explain how rack and pinion steering works and then go into how wear in the steering rack shows itself. We'll also take you through the basics of rack and pinion replacement.
How to reinstall a tie rod?
Reinstall the tie rod ends using the measurements from above and tighten the locknut. Torque the tie rod nut and install the new cotter pin in the tie rod castellated nut. Do not reuse old cotter pins.
How to loosen a tie rod locknut?
Use an open-end wrench to crack the tie rod locknut loose. Remove the cotter pin in the castellated nut (I use pliers or wire cu tters) and remove the nut with a wrench. Smack the side of the steering knuckle with a hammer to loosen the tie rod stud.
What is a pinion gear?
This type of steering system uses a pinion gear at the end of the steering column turning against a geared rack, which is just a toothed metal bar. The steering column turns when you turn the steering wheel, causing the pinion also to turn. The pinion gear engages with the rack and moves the rack in the direction and amount required to make ...
How to replace a Camry rack?
Remove the old rack and pinion and compare it with the replace ment unit to ensure proper fitment. There may be mounts that you will need to transfer from the old unit to the new one, such as the Camry rack pictured above.
How to keep steering column stationary while disconnecting joint?
To keep the steering column stationary while disconnecting the joint, try extending the seatbelt through the steering wheel and buckle it. A bungee cord secured to a fixed object inside the cabin can also help.
How much does it cost to fix a rack and pinion?
The cost to repair the rack and pinion for your car can range from $320 to $1,900. This price depends on the make/model of your car and how long it takes the mechanic to do the repair. Car owners should expect additional bills when they get this type of work done, like tire alignment or other necessary repairs, taking the final cost to anywhere between $550 and $2,000 depending on whether you are getting one service alone or more.
How to tell if a mechanic has damaged a part?
By asking the mechanic to show you the part after a job has been performed, you’ll be able to see whether or not it’s damaged. If there is any damage that seems obvious, then ask for an explanation of what happened and why they had no choice but to replace this particular piece.
Is wheel alignment included in bill?
If a wheel alignment has been done after a rack and pinion repair, its cost may be included in the bill or not. So, you should take into consideration this extra cost.
Is it expensive to replace a rack and pinion?
Replacing the rack and pinion can be costly. If the car you drive is an old one, consider whether it’s worth fixing or if it would make more sense to purchase a newer model instead.
How do I fix the Rack and Pinon at Home?
It’s actually not recommended to do rack and pinion repair at home if you don’t know what you’re doing (professional level).
How much does it cost to fix a rack and pinion?
This repair will be about $1400, give or take.
What are the Signs of a Rack and Pinion or Gearbox Problems?
If you’re having a hard time steering, the rack and pinion could be to blame. There are several indicators that mechanics say can alert the driver to a problem.
What does a Tight Steering Wheel Mean?
If you’re finding it hard to turn the steering wheel, you could be looking at a future repair bill for the rack and pinion.
Why does my car sound like it's munching on gears?
If your car sounds like it’s munching on gears when you turn into your driveway after work , that’s not normal; you might have a rack and pinion problem on your hands.
How much does a rack and pinion cost?
If it’s the rack and pinion, it will be about $1200-$1400 depending on your vehicle and where you live. It might be wise to get a few estimates and go with the best price or service.
How much does it cost to fix a car that burns oil?
If your car smells like burning oil, and it’s the rack and pinion that’s causing the problem, then the repair bill could be about $1400.
What Is Done During Rack and Pinion Replacement?
The mechanic will start the repair by ensuring the wheels are straight and the steering column is locked. A belt may be used to ensure the wheel isn’t moved during the repair
What Is Rack and Pinion Steering?
By far the most common type of steering on modern cars, trucks and SUV’s, rack and pinion steering is essentially a fairly simple mechanism. The gearset in enclosed within a metal tube, with either end of the rack sticking out of opposite ends of the tube. Each end of the rack is connected together by a tie rod, which is also connected to the steering arm.
What to do if your power steering is faulty?
There are various diagnostic tests which a mechanic will carry out to determine the exact cause of a steering fault. They’ll usually check the alignment of the car and look for any potential issues with the power steering module. If the rack and pinion gear itself is faulty, chances are it will need to be replaced.
Why is a lower steering ratio better than a higher ratio?
The lower weight of these vehicles means turning the wheels is still fairly easy, even with a lower steering ratio.
Why does my garage rack leak?
The seals are difficult to position properly, and any damaged or misplaced seal will cause the rack to leak. Because of this risk, and the time and cost involved, most mechanics will recommend replacing the rack rather than repairing. To save money on the work, shop around for quotes from your local garages.
Is it cheaper to replace a rack and pinion?
In general, rack and pinion replacement costs less than it would to repair it. Repair requires a significant time investment, meaning your labor costs are likely to be far higher. The complexity of the repair also means that a full replacement tends to be a safer and more reliable option.
Can you change a rack?
Changing a rack is not something which should be attempted by a novice, as specialist tools are required and the cost involved means that you’re probably still cheaper taking the car to a garage.
