How to Repair Your Defroster Grids
- Window Prep. Begin the repair process by using your soft cloth and window cleaner to thoroughly remove all dirt, dust, dog drool, ice cream smears and greasy handprints from the ...
- Keep Inside the Lines. Okay, got all the breaks in the grid lines identified? Use a grease pencil on the outside of the glass to mark them.
- Tab A Into Slot B. The procedure for repairing broken-off electrical connectors is almost as straightforward. Similarly, clean the area with lacquer thinner or alcohol to remove any oily residue.
How do you fix a defroster grid failure?
Begin trouble shooting a total grid failure by carefully inspecting the thick vertical side bars of the defroster. A break or scratch in one of these bars could cause the defroster to fail completely. Use the Frost Fighter Defroster Grid Kit to repair any small breaks or scratches in these critical side bars.
What to do if your rear window defroster does not work?
When the rear defroster does not work at all, small breaks in the horizontal grid can be eliminated as the problem. In this case, all of the horizontal defroster grid lines would need to be broken and it is very unlikely that this would happen without it being immediately obvious.
How do I repair the Frost fighter grid repair kit?
The Frost Fighter Grid Repair Kit is designed to repair grid damage. Use the grid kit to precisely mask off the damaged area of the defroster. There may be more than one break in the grid so locate all the damage before proceeding. After the damaged areas have been located and masked, apply the repair material using the small cap brush supplied.
What do the thin horizontal lines on a defroster mean?
The thin horizontal lines are the grid lines or elements of the defroster. These thin lines do the heating when electrical current is applied to the system. Repair grid elements with the 2120 Defroster Grid Repair Kit.
Can you repair heated rear screens?
Rear window heaters fitted by manufacturers are printed on to the surface of the glass or stuck on with special adhesive. Small breaks in an element can be repaired with special conducting paint. One of the most common and simple problems is a blown fuse. Find the fuse protecting the heated rear window circuit .
What should be checked if none of the grids in a rear window defogger work?
Make sure the rear defroster switch and the ignition key are turned on. Disconnect both wires from either side of the defroster grid and touch one end of your tester to each wire. If the light comes on, you have power. If it doesn't, check for a bad fuse and replace it if necessary.
How much does it cost to fix a rear defroster?
between $45 and $80In terms of both parts and labor, fixing a front or rear defroster will cost roughly between $45 and $80. Properly functioning defrosters are essential to safe driving, especially if you live in an area with a harsh winter climate.
Can you fix rear demister?
Bad news: A new rear window can be more than $400, including installation. Good news: You can fix it yourself for less than 10 bucks. Really. Start by going to the auto parts store and picking up a rear-window defroster-grid repair kit and/or a defroster tab repair kit, depending on the damage you need to fix.
Why does only part of my rear defroster work?
If the defroster clears only part of the rear window, this is usually a sign of a broken horizontal grid line. The first step in repairing this type of damage is to locate the break by visual inspection. The smallest break or crack can cause the defroster to fail. Be sure to have the work area well lighted.
Why is my defrost not blowing air from vents?
If you can hear the blower motor but no air comes from the vents, check the fresh air intake. If it's plugged, clean it. If it isn't, the blend door may be stuck, or the vents may be plugged internally. Check for power at the blower motor.
How do I defrost my car without a defroster?
Here's what you do: Mix ⅓ part water and ⅔ part isopropyl or rubbing alcohol together and pour into a spray bottle. Spray the solution onto your windshield, and voila! You'll see the ice disappear instantly.
Is rear defogger necessary?
But that's not the case with the rear windshield. And for that reason we require a rear defogger. During the monsoon, or even in winters, the rear windshield tends to fog up, which hinders visibility of the traffic or the surroundings behind. A defogger clears the mist and helps improve rear visibility.
How do you test a rear defrost grid?
0:494:20How to Test a Rear Window Defroster Grid With The Fluke 233 - YouTubeYouTubeStart of suggested clipEnd of suggested clipWould be to use the meter and measure resistance on the defroster grid in each location along theMoreWould be to use the meter and measure resistance on the defroster grid in each location along the grid.
How do I test my rear heated screen?
0:153:13Testing a Window Defroster Grid - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd you'll notice as I touch these grids the light lights up that's been dim compared to what it wasMoreAnd you'll notice as I touch these grids the light lights up that's been dim compared to what it was over here. And as its dropping voltage you'll see it gets dimmer.
How do you test a rear window defroster relay?
1:026:11Rear Defroster Relay Test | Rear Defogger Help - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou'll find something like this just plastic tabs holding on the cover. And when you remove it.MoreYou'll find something like this just plastic tabs holding on the cover. And when you remove it. Number of fuses whenever you see numbers these are fuses.
How does a rear defogger work?
The rear defroster is powered by electricity and operated by a dashboard switch. Turning it on activates a grid of wires, visible as thin lines on the inside of the glass, that heat the rear window to defog the glass and melt frost, snow and ice.
How much current does a rear window defroster draw?
Don’t try to bypass the timer. Rear-window defrosters draw a substantial amount of current—10 to 20 amps depending on the application.
How many amps does a rear window defroster use?
Rear-window defrosters draw a substantial amount of current—10 to 20 amps depending on the application. Most modern cars use a timer circuit to turn the grid off after a reasonable length of time. There are two reasons for this.
How many amps does a defroster draw?
Defroster grids draw a lot of current (10 to 20 amps), and if the fuse is undersize, it won’t last. If the fuse doesn’t look blown, check with your voltmeter—with the key on and the defroster on, you should see 12 volts at both fuse terminals. If the voltage is fine, the problem is somewhere in the wiring or at the grid.
How long does it take for a rear window defroster to clear snow?
It takes a few minutes to clear the snow, and by then the engine has warmed up enough to melt the frost clinging to the inside of the windshield, and has actually made inroads to the frost on the side windows. But the rear-window defroster clears only a narrow strip near the top and bottom the window, leaving a wide strip ...
Can you scrape hard frost off a rear window?
Danger! Let us make this perfectly clear: Do not try to scrape hard frost from a rear window equipped with a heater grid. The resistance wires are silk-screened, essentially painted, onto the glass. They are very easy to scratch, and will not work properly if the scratch breaks the continuity along the wire.
Can you brush snow off your rear window?
I'm certain that the defrost grid is applied to the inside of the rear window. You can safely brush/scrape snow/ice from your rear windows exterior surface.
How to fix a broken defroster?
The first is to make sure that the main tabs on the side of the window — the ones that carry the electricity to the grid — are strongly attached to the defroster itself. You can do this with a tab adhesive product. Next, you can correct any breaks in the defroster grid by painting ...
How does a rear defroster work?
Instead of hot air, the rear car defroster sends electrical current through a small grid made of a mixture of metal and resin that is attached to the glass with an adhesive. When activated, the resistance in the metal generates enough heat to evaporate fog. In most cases, it can also melt snow and ice to prevent it from sticking to the window.
Why does my rear defroster work differently?
Also known as a defogger, your rear defroster has to work very differently from the one up front, due largely to the absence of any hot air ducts linking it to the vehicle’s climate control system. Fortunately, the solution to this quandary is very simple, and it involves harnessing the 12-volt electrical system in an automobile to generate heat.
What does scraping a rear window do?
The act of scraping or cleaning a rear window can sometimes sweep away enough of the metal to interrupt the circuit, which , in turn, prevents electricity from being transmitted to that segment of the car defroster.
Does a rear defroster stop working?
You probably don’t think much about your rear car defroster until it stops working properly . Usually, the decline is gradual, with only part of the back glass getting cleared of fog, snow and ice. Then, the problem eventually spreads to the point where your visibility in the rearview mirror is significantly compromised.
How to repair a rear window?
Begin the repair process by using your soft cloth and window cleaner to thoroughly remove all dirt, dust, dog drool, ice cream smears and greasy handprints from the rear window. Clean it inside and out because you need to be able to see through the glass to discern the breaches in the grid. More im-portant, you need to give the conductive paint or adhesive a clean surface to stick to. Where's That Scratch?
How long to defrost a conductive paint?
Wait a minute and add a second coat. Wait a minute longer, and remove the masking. You can use the defroster within 15 minutes or so.
How to fix broken off electrical connectors?
Similarly, clean the area with lacquer thinner or alcohol to remove any oily residue. We took a small file to remove a couple of burrs, so the tab would lay flat on the glass. Our kit came with a vial of accelerator to complement a small pouch of conductive adhesive. Snap the glass vial of accelerator to release it into the applicator swab, and wet the surface of the glass and the back of the tab. Allow it to dry for 5 minutes. Knead the adhesive pouch for a minute or so, and snip off a corner. Put a couple of drops on the tab, and lightly press it to the glass for 60 seconds. Don't glue your fingers to the tab or the glass--and don't ask how we know this is a bad idea.
How much does it cost to replace a rear window?
Bad news: A new rear window can be more than $400, including installation. Good news: You can fix it yourself for less than 10 bucks. Really. Start by going to the auto parts store and picking up a rear-window defroster-grid repair kit and/or a defroster tab repair kit, depending on the damage you need to fix.
Can a credit card damage a rear window?
Even a credit card can damage the grid, so limit anything that touches the glass to a clean rag and some window cleaner.
How to fix a defroster that comes off a window?
This also happens when there have been many repair attempts. This damage is easily fixed by making a small pad of the Frost Fighter 2000 Tab Bonding kit adhesive.
How to fix a broken defroster tab?
The kit uses a fast curing, two part conductive silver adhesive to reattach the main power tabs to the vertical defroster bars. Frost Fighter silver adhesive comes in two syringes for precise dispensing and is mixed at a simple 1:1 ratio. It is important to mix the silver adhesive for at least 30 seconds.
What are the tabs on a defroster?
Bond tabs back to the rear window defroster with the 2000 Tab Bonding Kit. Replace damaged defroster tabs with the Uni-Clip Tabs.
How to re-bond a defroster?
After mixing, dip the base of the tab into the adhesive to coat the area to be re-bonded to the defroster. Replace the separated tab over the area were it was originally separated from the defroster and rock gently to seat the tab base. Make sure the sliver adhesive overlaps onto the surface of the defroster to ensure the best electrical connection.
How long does it take to repair a defroster tab?
Repairs are stable in 10 minutes but need 24 hours at 75° F.

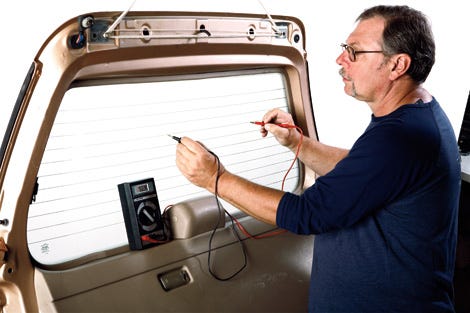

How to tell if a defroster line is broken?
Now take readings at various places along the horizontal lines of the grid to isolate the break. When you pass over the break, the reading will change sharply. If you do not have a volt meter you can use the Frost Fighter Test Lamp . A really good way to identify broken or “worn out” lines is to switch on the defroster in cold/damp or humid weather to identify which lines are working and which are broken or damaged.
What is a Frost Fighter Grid Repair Kit?
The Frost Fighter Grid Repair Kit is designed to repair grid damage.
