- Enable the Mesh: 3D Printing toolbox. Launch the Blender software Go to “ File > User Preferences > Add-ons ”. ...
- Import the STL file. Go to “ File > Import > STL .” Browse for the STL file you want to repair on your PC and select it.
- Repair the STL file. ...
- Save and export the STL mesh.
Full Answer
What is MeshMixer and how does it work?
Meshmixer is also a useful tool to edit STL files, resculpt entire sections, as well as optimize and finalize 3D models. Read our tutorial with 15 pro tips for editing STL files for 3D printing.
How do you fix a hole in an STL?
Closing holes, bridging gaps. Some comprehensive STL repair programs allow different ways of hole filling, such as planar, tangent, ruled, or freeform. Resolving overlaps and intersections. This typically requires recalculating entire portions of the mesh. Filtering out double faces, double vertices, inverted normals, and sharp, narrow triangles.
How to use MeshMixer to print 3D models?
Low-poly, voxelized, wireframe, and perforated pattern variations. Using the Print command from the main menu, you can set up printer properties and pick the print preparation tool or slicing program to slice the model and send it directly to the 3D printer. Setting up printer properties in Meshmixer speeds up the workflow.
What file types does MeshMixer support?
Meshmixer will read numerous 3D file types, such as STL, OBJ, PLY, and some lesser known formats; AMF, 3MF, OFF, and the native MIX format. For exporting designs to a different format, Meshmixer also supports Collada, VRML, and Smesh.
How do I repair STL files in Meshmixer?
0:597:51Fixing Broken STL's Using Meshmixer [BEST WAY] - YouTubeYouTubeStart of suggested clipEnd of suggested clipRed all you have to do is go to edit go to make solid. And this is the the air you can be playingMoreRed all you have to do is go to edit go to make solid. And this is the the air you can be playing around in mostly in order to fix this model.
How do I fix a broken STL model?

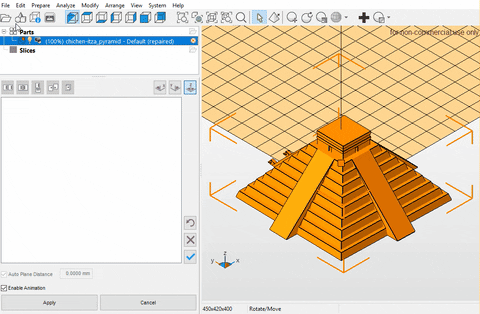

5:117:55HOW TO FIX STL FILES FOR 3D PRINTING (3 EASY FREE TOOLS)YouTubeStart of suggested clipEnd of suggested clipRight you just come here open a new model. Click on add parts it will add your model here you comeMoreRight you just come here open a new model. Click on add parts it will add your model here you come to this repair. Part button here.
How do I fix Meshmixer 3D?
0:252:03Meshmixer | How to fix holes in 3D models | Quickie - YouTubeYouTubeStart of suggested clipEnd of suggested clipTo do so click on the model to select it and then go edit make solid from this menu we can changeMoreTo do so click on the model to select it and then go edit make solid from this menu we can change the mesh density which allows us to preserve or remove detail.
How do I heal an STL file?
How to Repair an STL FileAuto-repair. ... Separating shells. ... Closing holes, bridging gaps. ... Resolving overlaps and intersections. ... Filtering out double faces, double vertices, inverted normals, and sharp, narrow triangles.Stitching open edges and remaining holes.Manual repair by deleting and creating triangles.More items...
How do you fix a non manifold in Meshmixer?
3:204:50How to fix STL, Fix non manifold STL with these easy steps! - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd the way you can repair this in mesh mixer is by clicking on analysis. Then inspector. And thenMoreAnd the way you can repair this in mesh mixer is by clicking on analysis. Then inspector. And then auto repair.
How do I fix Meshmixer normals?
3:1312:41Flip Normals in Meshmixer to create Pins, Voids and...? - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo we're going to select and select this shape. And go to edit and flip normals to see what I'veMoreSo we're going to select and select this shape. And go to edit and flip normals to see what I've done now is now the triangles flipped.
How do I edit an existing STL file?
3:455:01Editing STL files THE EASY WAY - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo that's four millimeters away and this drags up and down so you then you can see should be goingMoreSo that's four millimeters away and this drags up and down so you then you can see should be going all the way through now a little bit down. Okay so now you're going to select that make a hole. And
How do you repair 3d printed parts?
0:337:30Fix Your 3D Prints Cheap (with Green Stuff) - (Printing The Game #6)YouTubeStart of suggested clipEnd of suggested clipHi everyone Danny the third you're putting damn here welcome to 3d printed tabletop a channel willMoreHi everyone Danny the third you're putting damn here welcome to 3d printed tabletop a channel will recover all things related to 3d printing for your tabletop. Games. Today I'm excited to share
Which is a STL file repair software?
Top 7 Best STL Repair Software For All LevelsNetfabb. ... Materialise Cloud. ... 3D Builder. ... Make Printable. ... MeshLab. ... Meshmixer. ... Microsoft 3D Tools.
Why is my STL hollow?
Re: STL file renders as hollow. They are just sheets floating in air. Even if you add thickness to them, they will still be just slightly thicker sheets floating in air. You really need to merge them with the other solid models so that you have one complete solid.
How do you fix your model has missing or extraneous surfaces?
Fixing the issueGo back into the 3D design application of your choice and check the models for errors.After finding the issue, change the design to fix it.Export the 3D model again and reload it into Ultimaker Cura.
How do I repair STL files in Blender?
BlenderStep 1: Open STL file. File > Import > STL. ... Step 2: Edit STL file. Switch from Object to Edit You can now see all the edges your model.Step 3: STL Repair. Activate the 3D Print Toolbox: File > User Preferences > Add-Ons > Mesh: 3D Print Toolbox.Step 4: Export as STL file.
How do I fix models in Blender?
3:5815:33Blender Mesh Fixing | 3D Printing Tool Box Explained - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo there's a problem there so the quick fix is just select those faces or select. Everything so i'llMoreSo there's a problem there so the quick fix is just select those faces or select. Everything so i'll press a select it all press shift n do a flip of the normals.
How do I fix 3D in Blender?
The simplest and easiest way to fix a non-manifold model inside Blender is to use its built-in cleanup tool. Next to the “Check All” button from before, there's a “Clean up” section. Simply open it (making sure to have the model selected) and select “Make manifold”.
How do I fix Cura errors?
Fixing the issueGo back into the 3D design application of your choice and check the models for errors.After finding the issue, change the design to fix it.Export the 3D model again and reload it into Ultimaker Cura.
What is STL repair?
Auto-repair. The STL repair software’s wizard will attempt to fix all major errors, including holes, separate shells, and intersections.
How to repair a STL file?
A typical STL file repair workflow contains the following steps: 1 Auto-repair. The STL repair software’s wizard will attempt to fix all major errors, including holes, separate shells, and intersections. 2 Separating shells. A mesh consists of collections of connected triangles. It can contain multiple continuous surfaces that ideally are joined together while obsolete ones need removal. 3 Closing holes, bridging gaps. Some comprehensive STL repair programs allow different ways of hole filling, such as planar, tangent, ruled, or freeform. 4 Resolving overlaps and intersections. This typically requires recalculating entire portions of the mesh. 5 Filtering out double faces, double vertices, inverted normals, and sharp, narrow triangles. 6 Stitching open edges and remaining holes. 7 Manual repair by deleting and creating triangles. 8 Remeshing to optimize triangle count. 9 Exporting to the chosen mesh format.
What is meshmixer used for?
Meshmixer is also a useful tool to edit STL files, resculpt entire sections, as well as optimize and finalize 3D models. Read our tutorial with 15 pro tips for editing STL files for 3D printing.
How to delete triangles in Meshlab?
Hold the Alt key to leave backfaces out of the selection, use Shift + Ctrl + D to deselect. For selecting individual triangles, click the Z-Painting tool on the toolbar and select the red brush icon. Left click to select triangles, right click to erase the selection and hit delete to remove triangles. Because Mesh lab does not implement any triangle creation functions, we reside to the surface generation method under Filters → Remeshing, Simplification and Construction → Surface Reconstruction: VCG. With a low enough setting for Voxel Side and high enough value for Geodesic Weighting and Volume Laplacian Iterations, it will result in a smooth manifold mesh. This method is usually recommended over Filters → Remeshing, Simplification and Construction → Screened Poisson Surface Reconstruction. Another alternative method is to generate an Alpha Complex then generate an Alpha Shape which sometimes works with the right values. For remesh operations, Meshlab offers a voxeliser under Filters → Remeshing, Simplification and Construction → Uniform Mesh Resampling which results in a manifold mesh and offers an offset parameter useful for creating hollow parts.
How to fill a hole in Blender?
The simplest way to fill a hole in Blender is to first select the boundary loop with Select → Select Boundary Loop or select all non-manifold edges with Select → Select All by Trait → Non Manifold (Shift + Ctrl + Alt + M) and then hit Mesh → Faces → Make Edge/Face (F) or Mesh → Faces → Fill (Alt + F) for an improved fill. Individual triangles can be created by right-clicking an edge or vertex, Shift + right-clicking the second one and pressing F. It is helpful during editing to switch between Vertex Select, Face Select, or Edge Select modes that are indicated by three icons at the bottom toolbar. Selecting a particular area can be done with Select → Circle Select (C) which works similar to brush selection. Change the brush size with the mouse wheel or the numerical plus/minus buttons, deselect holding the Shift key. Mesh → Faces → Beautify Faces (Shift + Alt + F) sometimes works to improve mesh quality in the selected area. Individual boundary loops can be selected using Alt + Right click. With two open boundary loops selected, choose Mesh → Edges → Bridge Edge Loops and the two areas will be smoothly connected.
How to repair mesh in Meshlab?
For example, Filters → Cleaning and repairing → Select Self Intersecting Faces → Apply will select all intersecting triangles which can then be removed by pressing Delete. Filters → Cleaning and repairing → Remove Duplicated Faces and Remove Duplicated Vertex are always useful actions to perform. The next step is healing up holes using Filters → Remeshing, Simplification and Construction → Close Holes. The Compute Geometric Measures operation under Filters → Quality Measure and Computations will indicate when a mesh is not watertight. If not, detect the involved areas with Render → Show Non Manif Edges and Show Non Manif Vertices.
What is mesh conversion?
Mesh conversion is like smashing a perfectly smooth mirror, then gluing back together all the bits and pieces to make it look like the original. Done badly, the result is a model with all kinds of edges, holes, and floating parts, as well as areas with many intersecting triangles that do not belong there.
How to remeshed in meshmixer?
With Meshmixer, you can create an even tessellation using the Remesh command. Click the Select Icon in the menu and click to create an area to be remeshed, or use Ctrl + A to select the entire object. On the Popup menu, click Edit → Remesh or hit R. There are several Remesh Modes:
How to fix holes in meshmixer?
Sometimes it is useful to create a hole in order to cut out an irregular area. In that case, enter Select mode and use the lasso to select the area to be removed. Now hit Delete or Edit → Discard (X) to remove all selected faces. Go to Analysis → Inspector and the hole will be detected. Of the available options in the dropdown menu, Minimal Fill results in the least amount of triangles necessary to close the hole. A Flat Fill creates a patch as flat as possible, and a Smooth Fill matches the patch to the curvature of the surrounding area. Auto Repair All usually fixes all holes, as well as intersecting and floating triangles.
What file types does meshmixer read?
Meshmixer will read numerous 3D file types, such as STL, OBJ, PLY, and some lesser known formats; AMF, 3MF, OFF, and the native MIX format. For exporting designs to a different format, Meshmixer also supports Collada, VRML, and Smesh. STL (STereoLithography) is a format originally developed for stereolithography 3D printing ...
Why is meshmixer important?
When printing multiple objects, it is important to make efficient use of the available space . MeshMixer offers the Analysis → Layout/Packing functionality to layout objects in different ways. It is important to apply the Separate Shells command and correctly orient the objects relative to the ground plane before starting the packing algorithm. For our Venus sculpture, a Square Packing Style proved more efficient than a Circular Packing Style.
What is the best software for working with triangles?
Autodesk’s Meshmixer is a state-of-the-art software for working with triangle meshes or, as its developers like to call it, the "Swiss Army Knife" for editing STL files and 3D meshes. With Meshmixer, it’s not only possible to optimize a triangle mesh but also to resculpt entire sections, stylize the model, or add useful features to it.
How to separate parts in meshmixer?
Meshmixer offers several ways to separate a part of a mesh. The simplest method is first selecting the part to be separated, then using the Edit → Extract (Shift+D) command. The program will create a new shell with an optional offset distance. Choosing the Normal direction for the offset will expand or shrink your part. Then, from the main menu, pick Edit → Separate Shells to individually save and name each part, while deleting obsolete sections.
What is STL file?
STL (STereoLithography) is a format originally developed for stereolithography 3D printing that is the most commonly accepted file format in 3D printing. It stores only geometry data and has a compact file size.
