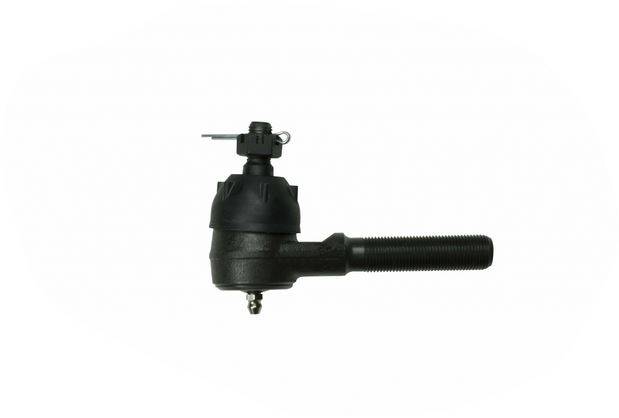

Outer Tie Rod End
- Park the car on a level surface with room to work around the vehicle.
- Make sure the car is in Park or in gear and engage the parking brake.
- Place blocks around the ground wheels.
- Loosen the wheel lug nuts.
- Lift the car and insert your jack stands.
- Remove the wheel and place it out of the way.
- Spray the tie rod nuts and bolts with PB Blaster or another penetrating oil.
- Crack loose the inner/outer tie rod nut.
- Loosen and remove the castle nut on the outer tie rod end, including the cotter pin.
- Detach the outer tie rod end from the steering knuckle with a tie rod puller tool, a wedge, and/or a hammer. ...
- Paying close attention to the positioning, unscrew the tie rod end. Count exactly how many rotations it takes to remove it. ...
How do you fix a tie rod that won't stay in?
Follow the outer tie rod end underneath the car until it meets the inner tie rod end. Use a wrench to loosen pinch nut. This nut holds the outer tie rod end in place and prevents it from moving along the spindle of the inner tie rod end.
How do you replace a tie rod on a lawn mower?
Thread the new outer tie rod end onto the inner tie rod shaft. You should thread it by hand exactly the same number of turns that it took to take it off. Then thread the pinch nut up to the outer tie rod end. Tighten the pinch nut to keep the outer tie rod end from moving.
When to replace the outer tie rod end on a car?
The outer tie ends are an integral part of the steering system. With all this movement and stress, they will eventually wear beyond their limit. If an inspection reveals a worn tie rod end, you can replace it yourself.
How to remove the outer tie rod end from the knuckle?
It holds the tie rod end to the steering knuckle. Removing it will allow you to remove the outer tie rod end. Remove the outer tie rod end from the steering knuckle. To do this, you can use a tie rod puller or a ball joint separator. Insert the tool between the ball joint of the outer tie rod end and the steering knuckle.
Can you fix a tie rod yourself?
The outer tie ends are an integral part of the steering system. With all this movement and stress, they will eventually wear beyond their limit. If an inspection reveals a worn tie rod end, you can replace it yourself. AutoZone has everything you need to do the job right.
Can I drive with a broken tie rod end?
You can typically continue to drive your vehicle on a worn tie rod, but if it fails completely, you'll lose steering control and will likely need a tow to get you back home or to our service center for a repair.
How do you seat a tie rod end?
6:229:42How To Replace an Outer Tie Rod End - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd you don't want to tighten this too much you just get it snug. So once it starts getting tight.MoreAnd you don't want to tighten this too much you just get it snug. So once it starts getting tight. You just snug it right down so right there it's pretty tight.
What are the symptoms of a bad tie rod?
5 Signs that the Tie Rod Ends in Your Vehicle May Be BadInability To Steer.A Squealing Sound When You Turn. ... Uneven, Excessive Tire Wear. ... Misaligned Front End. ... A Steering Wheel that Feels Unusual. ...
What causes tie rods to break?
What causes a tie rod to break or go bad? Tie rods can go bad due to normal wear and tear and harsh road conditions. Often times the cause of tie rod failure is the lack of lubrication. Road hazards like potholes, bumps in the road or hitting the curb too hard can shorten the life of tie rod ends.
What does a broken tie rod sound like?
A knocking or clunking sound from the front of the vehicle when turning at low speeds can be a symptom of bad tie rods. As they become loose, tie rods can rattle around at the joints and links, causing the new noises you're hearing.
Do you need an alignment after replacing tie rod ends?
Yes, tie rods control steering angles. In fact, the tread or clamp connecting inner and outer tie rods is used to adjust steering angles. This means that after the replacement of any of the tie rod ends, the vehicle will need the wheel alignment to bring the steering and suspension angles back to within specifications.
How tight do you tighten tie rod ends?
5:0510:00How to Tighten a Ball Joint or Tie Rod End Castle Nut - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd I'm using the 19 that's what the ball joint one was but this is gonna be a 17. Just go aheadMoreAnd I'm using the 19 that's what the ball joint one was but this is gonna be a 17. Just go ahead here tie em up. And I should be there close enough now where I can just torque them on.
How do you replace outer tie rods without alignment?
6:1714:24How To Replace a Tie Rod End Without Needing an AlingnmentYouTubeStart of suggested clipEnd of suggested clipSo I'm here in a second I just grabbed a pair of slip-joint pliers. They see me put the wrench backMoreSo I'm here in a second I just grabbed a pair of slip-joint pliers. They see me put the wrench back on there that's because I do not want that inner tie rod turning at all as. I take this off.
How expensive is it to replace a tie rod?
For parts cost, a tie rod end can cost anywhere from $20 to $100, no matter if its the inner or outer tie rod. Outer tie rod ends are fairly simple to replace so expect to pay around $80 to $100 in labor as most mechanics will charge a one hour minimum.
How much does it cost to fix a broken tie rod?
For parts cost, a tie rod end can cost anywhere from $20 to $100, no matter if its the inner or outer tie rod. Outer tie rod ends are fairly simple to replace so expect to pay around $80 to $100 in labor as most mechanics will charge a one hour minimum.
How much is a tie rod replacement?
Most tie rods will cost between $40 and $120 with inner tie rods more expensive than outers. Some cars have tie rods where inner and outer tie rods are sold together as an assembly. Labor to replace tie rods will run between $45 and $85 depending if the inner or outer tie rod is changed.
What happens if ball joint breaks while driving?
A broken ball joint may be the cause of a mysterious clunking noise or drifting steering. And once they're worn, they will seriously affect your steering and suspension. If a ball joint fails completely, it can even result in the wheel dramatically falling off the car. A scary thought!
Can a tie rod snap?
Driving with broken tie rod ends is extremely hazardous. If one snaps off, you'll lose control over that side of the car entirely.
How to remove inner tie rod end?
Detach the breather tube from the dust boot. Remove the inner tie rod end dust boot. Use the inner tie rod removal tool, which can be rented from Autozone, Advanced, or O’R, to remove the inner tie rod end. It usually features an adapter and an extension rod that pairs with your ratchet or pry bar.
What Is a Tie Rod End?
Each tie rod has two ends, one inner and one outer. The inner tie rod end connects to the steering, while the outer tie rod end connects to the steering knuckle.
How to remove a tie rod from a steering knuckle?
Detach the outer tie rod end from the steering knuckle with a tie rod puller tool, a wedge, and/or a hammer. Do not, however, directly hit the tie rod end bolt.
What is the difference between ball joints and tie rods?
A. In this context, ball joints are part of the suspension system, and tie rods are part of the steering system.
How to fix a broken wheel?
Place blocks around the ground wheels. Loosen the wheel lug nuts. Lift the car and insert your jack stands. Remove the wheel and place it out of the way. Spray the tie rod nuts and bolts with PB Blaster or another penetrating oil. Crack loose the inner/outer tie rod nut.
How much does a tie rod end cost?
A. Tie rod ends vary greatly in price depending on the vehicle. Some singular outer tie rod ends could cost $10-15, while others could cost triple digits. Yours will likely be cheap, though, so even if the tie rods are just old and worn, but not fully bad, it can’t hurt to replace them. Q.
Why do tie rods go bad?
A. Any components that are attached to a vehicle’s wheels are dealing with a ton of movement , and relentless beatings. Over time, these impacts wear down on the tie rod ends and cause them to go bad . Contamination can further this along.
How to remove a tie rod from a car?
As stated before, the tie rod connects to the steering knuckle of the car on each side with a tapered stud and nut. This nut is usually a castle-style nut with a cotter pin, but sometimes it is a Nylock nut. For a castle nut, remove the cotter pin. Many times these can be corroded and a pain to remove. Make sure to flood the nut down with penetrating oil. Next, remove the nut. You will now need a tie rod separator, otherwise known as a “pickle-fork” to dislodge the tapered stud from it’s bore. You will insert the fork between the tie rod and knuckle, and hammer until the tie rod drops and separates. Sometimes, this process can take time, as many tie rods are very stubborn.
What is the outer tie rod end?
They pivot up, down, left, and right as your vehicle maneuvers, enduring extreme pressure while providing smooth and responsive steering. The outer tie ends are an integral part of the steering system.
How to remove a castle nut?
Make sure to flood the nut down with penetrating oil. Next, remove the nut. You will now need a tie rod separator, otherwise known as a “pickle-fork” to dislodge the tapered stud from it’s bore.
What is the other side of a tie rod?
The other side of the tie rod is threaded, and connects to either an inner tie rod (on rack and pinion systems) or a center link, drag link, or adjusting sleeve, which any of these reside in more traditional steering systems, and some trucks still today. 3.
Where is the ball with stud and locking nut on a tire?
Locate the outer tie rod end. The ball with stud and locking nut attaches to the steering knuckle (spindle) next to the tire. If you have penetrating oil, it’s a good practice to spray the jam nut and threads, along with the top castle nut with penetrating oil, as these are often very corroded.
Why is my steering wheel off center?
The steering wheel may be off – centered. This is due to the wheel alignment changes after the part installation.
Can you loosen a rack and pinion nut?
Do not allow the ‘loosening pressure’ to put excessive pressure on the rack and pinion’s inner tie rod. This may harm the gear or seal. Keep in mind, jam nuts will often loosen with either left or right hand threads, so sometimes turning the nut to the right will loosen it.
How to move a wheel with a loose tie rod?
The tie rod boot needs to be unclamped, and then you need to move the wheels by hand, pulling and pushing them. It will soon be apparent if the tie rod ends are loose as they will make noise and you’ll detect movement in the inner ball socket. Be sure that the problem is with the tie rod ends and not the rack. If you’re not sure, have a mechanic friend help you.
How to remove a grease rod from a car?
Start by lowering the car and loosening the lug nuts on the front wheels. Raise the car again on jack stands and remove both the front wheels. This will make access easier. Begin by making a mark on the rod and measure the distance between that and the grease fitting that sits on the end of the rod. Write this distance down. At the end of the rod you’ll see a cotter pin. Pull this out and set aside and then remove the nuts with a wrench.
How to finish a cotter pin?
To finish, put a new cotter pin in place, being certain the holes for it are properly aligned. If they’re not, tighten the nut (never loosen it) until they are. Put the tires back on the wheels and hand tighten the lug nuts. Lower the vehicle from the jacks and complete the tightening of the lug nuts.
