- Remove all moisture, loose particles and dirt from the repair area.
- Rough sand the surrounding area to allow resin a secure bond.
- In the shade, apply the needed amount of Sun Cure™ to the repair with an application stick. ...
- For flat surface or rail dings apply the clear plastic cover sheet over the resin to mold the surface and create a no-sand finish. ...
- Expose the repair to sunlight: Bright Sun: Gel 15 seconds – Full cure 5 minutes Partial Sun: Gel 25 seconds – Full cure 6 to 8 minutes Light Overcast: Gel ...
- Make sure resin has completely hardened before removing the plastic coversheet or sanding. Sun Cure™ has a tack-free surface that will allow an easy sand finish.
How do I repair the slick side of a surfboard?
Most damage caused to the slick can be repaired in a similar fashion to dings on a typical hard surfboard. Solar cured Epoxy such as Dura Resin or Gorilla 2 Part Epoxy are suitable products as they cure hard so is perfect for the slick side of a soft top surfboard.
How do you use suncure fiberfill resin?
Using SunCure™ Fiberfill resin: Make sure you know what resin your board is made with. There are 2 types Polyester or Epoxy. We make both types of repair kits. Remove all moisture, loose particles and dirt from the repair area. Rough sand the surrounding area to allow resin a secure bond.
How do I apply sun cure™ to a repair?
Rough sand the surrounding area to allow resin a secure bond. In the shade, apply the needed amount of Sun Cure™ to the repair with an application stick. Make sure to work out any air bubbles and form the resin to the repair.
What is the best epoxy to use on a surfboard?
Solar cured Epoxy such as Dura Resin or Gorilla 2 Part Epoxy are suitable products as they cure hard so is perfect for the slick side of a soft top surfboard. If the surface of the damaged area is rough give it a light sand with a relatively fine grit sand paper/block.
How do you use a surf repair kit?
4:1412:20Ding All SunCure Epoxy "Repairs All Surfboards" Ding repair Kit - YouTubeYouTubeStart of suggested clipEnd of suggested clipClean wax free and then this is gonna stretch. Over this part and we're going to adhere it down onceMoreClean wax free and then this is gonna stretch. Over this part and we're going to adhere it down once we put the filler in the Daniel. So now that we've done that we're going to take our filler resin.
Can you mix Qcell with epoxy resin?
Q CELL is a lightweight filler that is compatible with Polyester and Epoxy Resins , it consists of hollow inorganic microspheres which have exceptional whiteness and low bulk density.
How do I use Qcell?
0:051:49Mixing Q-cell to Repair Surfboards - YouTubeYouTubeStart of suggested clipEnd of suggested clipI just use any kind of normal bucket you know just get a handful of the the q cell put it in thatMoreI just use any kind of normal bucket you know just get a handful of the the q cell put it in that bucket get some laminating resin go ahead and put a little in there.
Can you use Sun Cure on epoxy?
Product Description. Sun Cure Epoxy resin filler is easy to use and works on polyester and epoxy boards.
How do you mix Qcell?
Add Q-CELL to resin in small amounts until desired consistency is reached. (For best results, a medium paste is recommended (mayonnaise consistency); avoid adding too much Q-CELL to the resin mixture or it will be too thick to apply.) Stir resin until qcell is completely saturated. Apply mixture to the repair.
How do you get pressure dents out of a surfboard?
Here's what you do:Use a razor blade or pocket knife to cut away any ragged or lifted edges from around the hole in your surfboard.Slice a small chunk of putty from the putty stick. ... Gently push the putty into the surfboard ding and sculpt until it is flush with the surrounding shape of the board.More items...•
What do you mix Q cell with?
We recommend mixing Qcell into resin and adding more until it is a consistency like mayonnaise. For best results mix your hardener or MEKP catalyst into the resin before adding the Qcells to ensure proper resin cure.
How do I color match my surfboard repairs?
- If you wish to color-match your repair to a colored board, add resin-tint or pigment to your filler mixture to achieve the desired color. Just a little goes a long way and it's fine to mix multiple colors to get the color you're after.
How do you fix a surfboard ding?
Surfboard Repair: DIY Steps to Fix a DingYou can also save money in another way. ... Gather the necessary supplies. ... Remove rotten and damaged area. ... Clean the area. ... Protect the surrounding areas with masking tape. ... Fill in the gaps/voids with Q-Cell. ... Sand the area down. ... Glass the repair.More items...
How long does it take for resin to cure in the sun?
You can start to work with poured 2-part resin components after about 24 hours, but you should allow 3 days to allow it to really cure. For UV resin, it takes about 15-20 minutes to cure each layer under a UV lamp, and a few hours to cure in direct sunlight. Cured resin can be sanded, filed, and drilled.
How do you fix epoxy surfboard cracks?
2:256:40How to: Rail Ding Repair on Painted Epoxy Surfboard or SUP - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo we're going to cut a patch that's a little bit bigger than our repair. Area and thenMoreSo we're going to cut a patch that's a little bit bigger than our repair. Area and then concentrically patches that are an eighth to quarter inch smaller.
How do I know if my board is epoxy or poly?
How do you tell epoxy from regular boards?, Well to start with look at the manufacturers logos (the “stickers” under the glass work), most reputable board builders will put the word epoxy on most or at least one of these, so READ them all first, if you find the word epoxy on any of these than it is an epoxy… as for the ...
How do you mix Q cell and resin?
Add Q-CELL to resin in small amounts until desired consistency is reached. (For best results, a medium paste is recommended, avoid adding too much Q-CELL to the resin mixture or it will be too thick to apply.) Stir resin until Q-CELL is completely saturated. Apply mixture to the repair.
What is Q cell filler?
Q-Cell Filler is used to thicken Polyester and Epoxy resin to create a ” Foam White” fill paste that is easy to sand. Q-Cell, also works great with Sun Cure UV Resin. - Q-CELL provides an economical way of extending resin, and in applications where a light weight is of primary importance.
How do you use ding all Q cell fillers?
0:253:56DIY fix with SUNCURE UV RESIN & DING ALL Fiberglass Cloth, Q-Cell ...YouTubeStart of suggested clipEnd of suggested clipAdd the Sun cure resin to the q cells slowly mixing until a thick peanut butter like consistency isMoreAdd the Sun cure resin to the q cells slowly mixing until a thick peanut butter like consistency is achieved. If possible and before adding the filler to the repair.
How to repair a broken fin?
Preparation: broken fins require grinding or removing any broken fibers to the foam to provide a void to be replace by a new layer of fin rope and cloth. Once the particles are removed, clean and sand the surrounding surface. Apply masking tape around the sanded edges of the repair to prevent excess resin buildup. Align the fin by matching it to the opposite fin. Trailing fins are set straight and stand vertical.
Why do you tape a ding?
For taping flat surface and rail dings, tape around the sanded area to prevent resin form spreading. Nose and tail dings require taping under one side to mate the shape of the missing piece – multiple pieces of tape might be needed. Although the resin mixture will be thick, the tape will hold the resin in place around the broken or fractured part and will act as a mold eliminating extensive sanding and shaping.
How to make a no sand finish on a railing?
For flat surface or rail dings apply the clear plastic cover sheet over the resin to mold the surface and create a no-sand finish. (Note: Make sure to tape each side of the cover sheet to hold in place.)
What is Q cell filler?
Using Q- CELL filler. When added to polyester or epoxy resin, Q- CELL filler thickens the resin to make it more workable and expands it to fill in large areas. This expansion reduces the amount of resin required therefore reducing weight. ( Note: Q- CELL is only a filler and should be sealed with a coat of resin before use).
How to fix a hole in a bottle?
Pour the resin into the bottle, add hardener, replace cap and shake. Apply the resin by squeezing into each hole leaving room for compression. Place wax paper over the top of the repair and add weight to flatten. Once dry, remove the weight and wax paper. If resin leaked out, sand the area.
How to make a resin ding?
For mixing, first estimate the amount of resin needed to fill the ding. Use scissors and chop thin pieces of cloth, (about 1/8” pieces) and add to the resin. The cloth will make the resin very workable and will provide needed strength. Using an adequate mixing cup, estimate resin and add hardener. Once mixed, slowly stir the chopped cloth into the resin (don’t add too much).
How to add Q cell to resin?
Add Q- CELL to resin in small amounts until desired consistency is reached. (For best results, a medium paste is recommended, avoid adding too much Q- CELL to the resin mixture or it will be too thick to apply.) Stir resin until Q- CELL is completely saturated. Apply mixture to the repair.
Where and what type of damage?
The severity of the damage and the specific location on the board will require different approaches so we will break it down by each component:
What is the best epoxy for a surfboard?
Solar cured Epoxy such as Dura Resin or Gorilla 2 Part Epoxy are suitable products as they cure hard so is perfect for the slick side of a soft top surfboard. If the surface of the damaged area is rough give it a light sand with a relatively fine grit sand paper/block.
What is a bodyboard made of?
Bodyboards look very similar to softboards with their slick bottom and foam decks but bodyboards are generally made of PP (Polypropylene) or PE (Polyethylene), while the softboards are made from EPS (Extruded Polystyrene).
What to use to repair a soft top surfboard?
If you are on a surf trip or away from any repair materials and you get a fin cut or small hole in your softboard but really want to keep surfing it, a simple “temporary” soft top surfboard repair trick you can use involves materials you are likely to have on hand: Surf wax (any kind) A lighter. A spoon or metal cup.
Why do surfboards have bubbles?
Delamination or bubbles on the deck of soft top surfboards is a common issue that can occur from over exposure to heat, or even just from age or prolonged use.
How to make a wax ring?
A spoon or metal cup. Place a small piece of wax in the spoon and heat with lighter flame until it starts to melt. Carefully pour the liquid wax into the crack/hole you are filling. Give it a bit of time to cool and harden and use the bottom edge of the spoon to press it firmly into place.
How long does it take for soft top repair to dry?
Ensure the area in question is clean and dry before attempting soft top repairs. Allow 24 hours for repairs to cure and dry before use.
Customers who viewed this item also viewed
SOLAREZ UV Cure Epoxy Ding Repair Weenie Travel Kit (0.5 oz Tube) - SUP/Surfboard Repair - Fast Solar Cure Clear Resin w 60/240 Grit Sand Block w Crushproof Travel Container ~ EPS Safe!
Special offers and product promotions
Create your FREE Amazon Business account to save up to 10% with Business-only prices and free shipping. Register today
Product Description

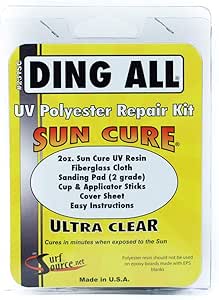

Ding All Sun Cure Surfboard Repair Kit - 2OZ Sun cure Resin. Comes with fiberglass cloth, sanding pad, cup and applicator sticks, and cover Sheet. Easy instructions. Cures in minutes when exposed to sun
