How to Repair a Dim Oven Display
- Unplug the oven from its power source and remove the front plate holding the display in place. You will have to...
- Take out the display unit from your oven, unscrewing any screws securing it within the oven. You will also have...

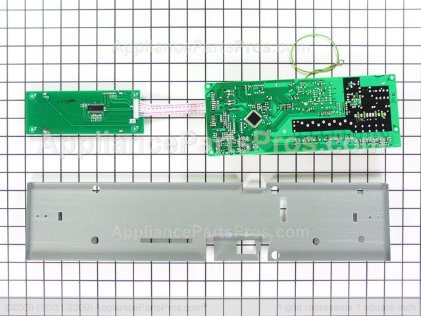

- Find the capacitors on the control board of the display, which looks like the circuit...
Full Answer
Why is the display on my oven display dim?
Sometimes there are circuit failures and the display is dim. Either way, control board repair from a professional reputable company will make your controller work perfectly and give your oven a second life. Contact a Professional?
How much does it cost to fix a dim TV screen?
You have two choices of repair tactics: 1. Replace the electronic control board, typical cost: $250. And there’s no guarantee that the display won’t dim again in a another couple of years.
How do I repair the display on my oven?
You can correct this by replacing a small part within the display, which has been damaged by the high operating temperatures in the oven. The repair is simple, but you will need to be able to take apart some of your oven, so refer to your oven's information for more details on its particular construction. Sorry, the video player failed to load.
How do I reset the display on my ge oven?
To reset the display of your GE oven, do the following… Step 1: Unplug the oven switch the circuit breaker off. Step 2: Leave the circuit breaker off for 5 minutes. Step 3: After 5 minutes, switch the circuit breaker on and plug the oven back in. Step 4: Turn the oven on and set the time.
How do I fix my oven screen?
0:437:42Oven Display Isn't Working - Troubleshooting | Repair & ReplaceYouTubeStart of suggested clipEnd of suggested clipIf you had a recent power outage then it's worth trying a reset turn off the breaker to disconnect.MoreIf you had a recent power outage then it's worth trying a reset turn off the breaker to disconnect.
How do I fix my oven control panel?
0:525:36Oven Control Board | Repair & Replace - YouTubeYouTubeStart of suggested clipEnd of suggested clipCheck to see if the control board comes with a button overlay it doesn't come with an overlay youMoreCheck to see if the control board comes with a button overlay it doesn't come with an overlay you might have to order one separately if needed you can reuse the existing overlay.
Why is the screen on my oven not working?
Wall Oven: Why doesn't my wall oven work? If your oven has a digital display and the control panel doesn't light up, reset the house circuit breaker for the wall oven if it's tripped. If the oven has power but the control is dead, you may need to replace the electronic control board.
How do you fix a dim microwave screen?
The display brightness cannot be changed....Steps to Verify Issue:Turn off the unit's power at the power supply source for 30 seconds and turn it back on again.Check the display again.Verify there are no brownouts or power outages in the area; if so, wait until full power is restored and try the oven again.
Can oven control board be repaired?
Can you repair my existing oven control board? Yes, this is an oven control board repair service for your existing control board.
How much does it cost to replace an oven control board?
between $220 and $300Oven Control Board Replacement Cost Replacing the control board runs between $220 and $300.
How do you know if you need to replace oven control board?
If the readings you see are either lower than 900 Ohms or higher than 1200 Ohms, that means the temperature sensor should be replaced. If the readings fall between the range of 900 to 1200 Ohms, you will have to get a new oven control board.
Why is my microwave display dim?
Usually the problem of a dim display in microwave ovens is caused by a faulty electrolytic capacitor on the control board.
How do I fix my Samsung oven screen?
How to re-set the Samsung range display is as follows:The range can be reset by simply power cycling your unit for two minutes (at least). You can then restore power to your unit and see if the display will still be flickering.
Can you fix the display on a microwave?
While a microwave looks like an appliance that is difficult to take apart, it really isn't. In fact, in terms of appliance repair, replacing the control panel and display on a microwave is actually one of the more simple repairs you can make.
How do I fix the digital screen on my LG microwave?
You must unplug it, wait about three minutes, and plug it back in. This is called a “hard reset” and it will reset the control board. Most of the time, this is will fix simple problems like clearing error codes, display issues, and some power issues.
How do you remove the control panel from a GE Profile microwave?
0:304:34GE Microwave Control Panel Replacement, Repair #WB56X20761YouTubeStart of suggested clipEnd of suggested clipUse a Phillips head screwdriver to unthread the two mounting screws securing the grill with theMoreUse a Phillips head screwdriver to unthread the two mounting screws securing the grill with the screws unthreaded open the oven door then slide the grill to the left and lift it up to remove.
Symptoms of Display Problems
Your oven beeps, clicks and heats, but you can't see what you are doing! Frustrating! Some are so bad, you can't read the clock accurately. This is a common problem with older ovens that use vacuum fluorescent displays (VFD).
Hard to Set The Correct Temperature
The difference between a perfectly cooked pizza and a black, burned crunchy one can be 50 degrees. When the display starts to fade, it can be easy to confuse numbers like '3' and '8'. 435 °F versus 485 °F is enough to ruin your meal.
Factory Fresh Displays are Available
Most boards that arrive have displays that are still bright, and we can get your controller 100% functional and working like new within a couple of days.
Is a New Display Part of the Standard Rebuild?
No, most controllers we see still have displays that are bright so we don't replace the displays. This helps us keep our costs low and our prices well below our competitors.
Why do Vacuum Fluorescent Displays Fade?
Each tube in a VFD has a phosphor coated anode that is bombarded by electrons emitted from the cathode filament. This is very well explained on wikipedia. Light output drops over time due to falling emission and reduction of phosphor efficiency.
Does it Make Sense to Repair an Oven Controller?
Yes, without a doubt. Most of the time, there are circuit failures other than the display. Sometimes there are circuit failures and the display is dim. Either way, control board repair from a professional reputable company will make your controller work perfectly and give your oven a second life.
Contact a Professional?
Hire a good appliance technician if you feel like you need help troubleshooting your oven. Once you have isolated your problem to the control board, look for a reputable online service, such as Appliance Board Repair. Send us your oven board in the mail, and we will repair and send the board back to you.
