Repairing a Small DC Electric Motor

  1. Clean It. If it needs it clean it with scotchbrite and soap to remove any corrosion and goo it doesn't matter that it gets wet you're going to ...
  2. Take It Apart. Place a small blunt blade between the drive gear and casing and leaver the gear off. ...
  3. Clean and Examine. I used disposable paper tissues for most of my cleaning kitchen towel or cotton rag would work as well.

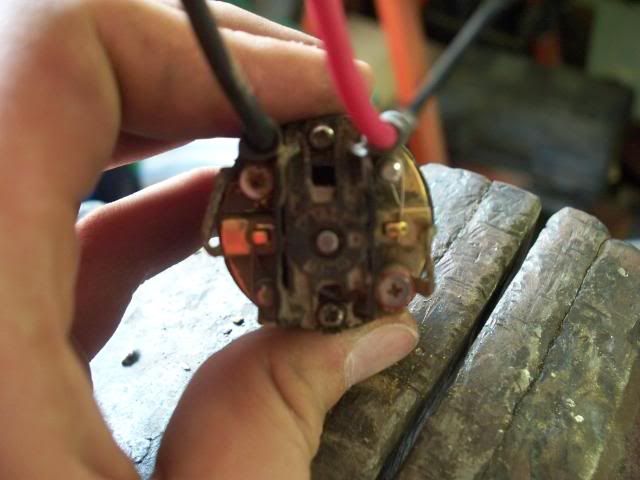

  4. Repairs. All motors will be different but on this one the brush carrier is a separate unit from the back plate located on a pin and in a ...
  5. Reassembling. Apply a light smear of petroleum jelly (vasaline) to the commutator if the motor has carbon brushes do not grease the commutator.
  6. Other Motors 1. This one (there are actually photos of 2 different motors here one with attached wires one that was soldered to a pcb) operated the tray ...
  7. Larger Motor. Did you make this project? Share it with us! We have a be nice policy. Please be positive and constructive.

Full Answer

How do you troubleshoot an electric motor?

  • Broken mounting holes or feet
  • Darkened paint in the middle of the motor (indicating excessive heat)
  • Evidence of dirt and other foreign matter having been pulled into the motor windings through openings in the housing

How do you scrap an electric motor?

The process of recycling electric motors should be direct and straightforward:

  • First, the recyclers collect many electric motors as possible to increase the possibility of getting enough copper.
  • A hammer or hammering mill breaks the metallic casing of the motor.
  • Then they separate the components and group them according to their materials.

More items...

How to repair small DC motor?

  • Remove the springs and brushes by removing the cover typically with a slotted dcrew driver
  • Check the motor brushes are moving freely when disassembling
  • Check that the spring tension on all the brushes are about equal
  • Check the face of the brushes- it should be shiny or polished which will indicate good contact. ...
  • Check the brush length. ...

More items...

How much do electric motors really cost?

Electric motors account for roughly $85 out of every $100 of a manufacturing/process plant's electrical bill. {C} Here is a breakdown of how much one 200 hp, 1,800 rpm and 460 V TEFC motor costs in power in a calendar year (7,200 hours of operation): Average cost of power in the United States: $.068/kWh. Annual Power Cost: $70,669.


Can you rebuild a small electric motor?

The short answer is that an electric motor can be repaired indefinitely. There is a caveat, however: there is a limit to how many times you can simply recondition a motor as repeated varnish dips eventually will require a burnout and rewind.

What causes an electric motor to stop working?

Low resistance is the most common cause of failure in electric motors. It is also often the most difficult to overcome. Under conditions such as overheating, corrosion or physical damage, degradation of the insulation of the internal windings of the motor may occur.

How do you take apart a small electric motor?

5:3818:54How to teardown and repair a toy motor - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd sometimes they don't but I just have to find a big screwdriver. And pry it open so I just told aMoreAnd sometimes they don't but I just have to find a big screwdriver. And pry it open so I just told a video of a second. Ok this is out. Now you just push on this.

Is it possible to repair a motor?

If you have electrical experience and some advanced tools, you may be able to repair a motor yourself. However, most consumers opt to test and, if necessary, replace the motor. You can buy one through the appliance's manufacturer or an aftermarket supplier.

How do you know if your small electric motor is bad?

How to Check an Electric Motor If It Is BadSmall fan motors last a long time due to few moving parts. ... Ball bearings in motors can wear out without lubrication. ... Power saw motors have brushes that wear out. ... Test for direct shorts in the motor's power windings in induction (non-brush type) motors.More items...

What is the most common cause of electric motor failure?

Winding insulation breakdown and bearing wear are the two most common causes of motor failure, but those conditions arise for many different reasons....Shaft imbalanceDirt accumulation.Missing balance weights.Manufacturing variations.Uneven mass in motor windings and other wear-related factors.

How do you fix a blown electric motor?

0:037:22How to fix a Blown Electric motor in 7 mins! - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis is a little bit of a very fine sanding pad which you'll see that's used for later and here is aMoreThis is a little bit of a very fine sanding pad which you'll see that's used for later and here is a replacement brush kit that will actually resolve the problem of the burned electric motor.

Can a DC motor be repaired?

DC motors often have to have field coils and armatures rewound and insulated. In some cases, repairs can be made but, sometimes, rewinding is necessary to achieve acceptable motor performance.

How do you put an electric motor back together?

2:479:31"HOW TO" re assemble a motor - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo if you try to just push it back up what's gonna happen you're gonna bust these brushes. And you'MoreSo if you try to just push it back up what's gonna happen you're gonna bust these brushes. And you're gonna possibly mess up the little retaining clips that hold the brushes and springs in place.

How do you service an electric motor?

Top Tips For Maintaining Electric MotorsDevelop a general maintenance and cleaning routine. Every company should have a cleaning routine in place if they don't already. ... Check the motor's lubrication. ... Regularly inspect the bearings. ... Reduce or eliminate vibrations. ... Inspect the rotor and stator. ... Record your findings.

How do you diagnose a bad electric motor?

With a multimeter set to low ohms (usually 200), test between each winding terminal and the metal casing of the motor. If there is any reading on any of these then the motor is bad, do not use it. You may find that when it runs ungrounded that the casing becomes live at up to supply voltage.

How do you tell if a motor is burned out?

When a motor burns out, a short circuit occurs in the windings and the motor ceases to turn. You can test for a short circuit by checking the resistance of the windings with an ohmmeter; a reading of 0 ohms (Ω) indicates a short.

How long do electric motors last?

The answer to how long motors last will vary and is dependent upon many factors. Some manufacturers estimate 30,000 hours, while others state 40,000 hours. Some will say “it depends.” One thing is clear—a motor should last much longer with a conscientious motor systems maintenance plan than without one.

How to get a motor to kick sideways?

Using a very small flat bladed screwdriver unbend the tabs securing the back to the case and pull it off. Push the drive shaft down on the table grip the armature and with draw it from the body of the motor it will kick sideways as it comes free.

Can you use scotchbrite to clean copper?

If it needs it clean it with scotchbrite and soap to remove any corrosion and goo it doesn't matter that it gets wet you're going to strip it completely and dry it thoroughly anyway. DO NOT leave the scotchbrite in the kitchen sink to be used later to clean pots and pans copper salts are toxic and the contacts/brushes may well be beryllium copper as it has spring qualities and others that are useful in this application BUT beryllium compounds are also toxic and cumulative poisons, so wash your hands after as well

How to get more life out of a motor?

simply swap in a new start capacitor. That may give you some more life out of the motor.

Which way do electric motors run?

In short: check the motor label: uni-directional electric motors run just one way: clockwise (CW) or counterclockwise (CCW) but not both. Bi-directional & self-reversing electric motors run in either direction, CW or CCW. Some electric motors can start and run "backwards" following damage to the motor's start capacitor or windings.

What is a stator in a motor?

Electric motor stator: the stator consists is a device or core containing start and run windings (of copper wire) wound around a central core to create a magnetic field. Electric motor windings: the two windings are used to create an electrical field in the stator.

How many windings are in a single phase motor?

Reader comments on single phase & 3 Phase motors. Most single phase motors have two sets of windings. The main or primary windings are directly connected to the power lines while the motor in running. The second windings are usually thinner wires physically offset from the main windings inside the motor.

Why is a start switch necessary?

This feature is necessary because depending on the position in which the rotor stopped when the motor last turned off, the rotating electrical field created by the run winding can't start the motor.

How to diagnose a failed start winding?

A trained service technician may sometimes diagnose a failed start winding or failed start switch (centrifugal switch) by spinning the motor manually (potentially dangerous!). If the motor keeps running we suspect a bad start winding or bad start switch (see diagnostic table details

Why does my electric motor run backwards?

It may be that the motor was damaged or it may simply be a wiring error.
