- Draining and Prepping the Tank. Trying to fix a ballcock valve assembly while the water is running and the tank full of water is just not possible ...
- Disconnecting the Toilet Internals. As you disconnect the internal components of the toilet make sure you remember where they go. ...
- Replace the Ballcock Valve Assembly. Take the old ballcock assembly to the home improvement store so you can purchase the right one for your toilet.
How do you replace a ballcock on a Kohler toilet?
Begin the replacement of the Ball-cock supply valve and Float Ball by turning off the water supply valve. Then remove the tank's lid and flushing the toilet. With the tank empty, position a plastic bin to collect water under the Ball-Cock supply valve's shank.
Can you replace a ball cock valve with a fill valve?
Since the Ball-Cock supply valve is an older design and takes up more room in the tank, it should when replaced, be with a new toilet fill valve system. However, if a fill valve is not available, a new Ball-Cock supply valve assembly can be installed.
Can a ballcock fill valve crack a toilet tank?
It can crack the toilet tank. The water level in the tank should be about 1/2 inch below the top of the overflow pipe, or align with the marked "full" line inside the tank. You can replace a ballcock fill valve without calling a professional toilet repair service for help.
How do you remove the float on a ballcock valve?
Remove the float arm by unscrewing it from the ballcock valve assembly. Unhook the tube that refills the tank from the overflow tube. An inlet pipe is at the tank bottom which can be removed by unscrewing the bolt. Grip this bolt with the wrench while gripping the ballcock assembly with another wrench.
How do you fix a toilet float valve?
1:023:58How to Fix a Toilet - Fill Valve Replacement - YouTubeYouTubeStart of suggested clipEnd of suggested clipReach behind the fill valve and snap the lock ring down into place then attach the refill tube toMoreReach behind the fill valve and snap the lock ring down into place then attach the refill tube to the overflow tube and adjust the new fill valve for optimum water level.
What is a ballcock repair kit?
The Danco Anti-Siphon Ballcock Toilet Tank Repair Kit has everything you need to replace the fill valve, flapper, rod, and float. This toilet Repair kit will hold up in high-use areas, making it perfect for most applications. The universal design will fit most toilets.
How do you fix a leaking ballcock?
0:347:55Overflow running? How to repair a part 2 brass ballcock, ball valve ...YouTubeStart of suggested clipEnd of suggested clipAnd it's pretty easy to do this is taken out of a roof tank normally. That would be the back nutMoreAnd it's pretty easy to do this is taken out of a roof tank normally. That would be the back nut securing. The roof tank there and that would be screwed on so you don't do your water connection.
How do you adjust a ballcock fill valve?
2:344:28Adjusting a Ballcock - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd every time you make a small adjust to adjustment to it only turn it about a half of a turn. PerMoreAnd every time you make a small adjust to adjustment to it only turn it about a half of a turn. Per try and then go in flush a toilet. And see where the water stops. And now if your water levels.
Can you replace ballcock with fill valve?
Most older toilets have older-style fish and ballcock for toilets. But they are prone to fault, like running and constant water. Replacing them with a newer-style fill valve will save water and frustration now and later on. Watch this plumbing video tutorial to learn how to replace a toilet ballcock with a fill valve.
What does a ballcock valve look like?

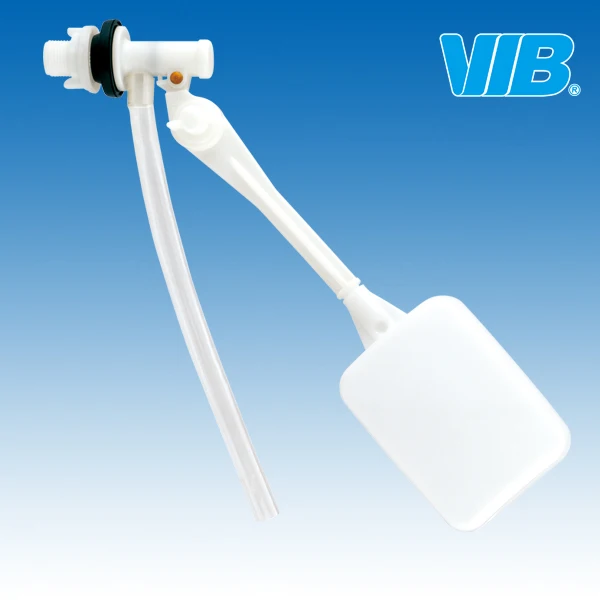

It consists of a valve connected to a hollow, sealed float by means of a lever mounted near the top of the tank. The float is often ball-shaped, hence the name ballcock. The valve is connected to the incoming water supply, and is opened and closed by the lever which has the float mounted on the end.
Why does my toilet overflow keeps dripping?
When an overflow pipe is dripping or running with water, one of the most common causes is a problem with a float valve. Float valves are found in toilet cisterns, cold water tanks and central heating feed and expansion tanks.
How do you service a ball valve?
Steps to Fix a Ball ValveTurn off Water Supply. This first step is extremely important because without making sure that the water is properly turned off, the replacement could be interrupted. ... Remove and Disassemble the Ball Valve. ... Inspect Ball Valve Parts. ... Replace Ball Valve.
How do I stop my overflow from dripping?
So, here's what you can do:Check the float valve isn't obstructed.Adjust the position of the float as it might be set too high to turn the water off.Check the water supply pressure isn't too high causing the overflow pipe to leak. ... Replace the washer in the float valve.Replace the float valve itself if it's punctured.
Can you adjust ballcock?
However, on newer plastic diaphragm ballcocks, there is an adjustment screw on the top that adjusts the height of the float rod and ball. This is the last version of a fill valve that can be called a true ballcock.
Why does my fill valve keeps running?
A chain that's too short or tangled won't allow the flapper to close and water will continue to leak into the bowl. This causes the fill valve to cycle on and off to refill the tank. A chain that's too long, or a flush rod that hits the tank lid, won't open the flapper wide enough to stay open for the full flush.
Why does my toilet not shut off?
Usually this is caused by one of the following problems: The water level in the tank may be at or above the top of the overflow pipe. The flapper or stopper ball that closes off the outlet at the bottom of the tank may be defective. The fill valve may need replacing.
How do you adjust a fill valve height?
0:371:45Adjusting height of fill valve when installed in tank - YouTubeYouTubeStart of suggested clipEnd of suggested clipPlace your thumb on the side of the arm and twist the cap and the arm together. And then it's goingMorePlace your thumb on the side of the arm and twist the cap and the arm together. And then it's going to lift right off the top of the valve remove the refill hose.
How do you adjust a ball float?
Adjusting a Ball Float To adjust a ball-type float, begin by unscrewing it so that it lowers with the water level. Keep turning so that the water in the toilet stops running, then turn it a half-turn. At this point, give the toilet a flush and wait for the water in the tank to refill.
How do I increase the water flow in my toilet tank?
1:122:21Increase Toilet Flush Power - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe one thing you can do is just hold the lever down longer and a lot more water will flow from theMoreThe one thing you can do is just hold the lever down longer and a lot more water will flow from the tank to the bowl to get a better flush.
How do you adjust the ball and arm on a toilet float?
0:001:54How to Adjust the Ballcock Valve and Water Level in a Toilet TankYouTubeStart of suggested clipEnd of suggested clipAnd what you do is you just simply turn it like in this case i want to drop the water level you seeMoreAnd what you do is you just simply turn it like in this case i want to drop the water level you see where it's at.
How to remove inlet pipe from tank?
An inlet pipe is at the tank bottom which can be removed by unscrewing the bolt. Grip this bolt with the wrench while gripping the ballcock assembly with another wrench. Unscrew the nut from the bottom of the tank then remove the ballcock assembly.
Where is the water tank on a toilet?
It is located close to the floor near the back of the toilet. Turning it to the right will shut the pipe from distributing water. The tank, however, is still full of water and is covering the ballcock valve. No need to grab buckets as you can just flush the toilet.
Shut Off the Water and Flush the Toilet
Once you've flushed the toilet and emptied the tank, go underneath the tank and place a bucket under the retaining nut. Now remove the ballcock retaining nut with an adjustable wrench and take out the old ballcock assembly.
Align the New Ballcock Valve
Attach a new cone washer to the new ballcock tailpiece and insert the tailpiece into the tank opening
Attach Refill Tube
Bend or clip the refill tube so that the tip is inside the overflow pipe.
Attach Supply Line and Turn On Water
Screw the mounting nut and the supply-line coupling nut onto the ballcock tailpiece and tighten it with an adjustable wrench.
Adjust the Water Level in the Tank
The water level in the tank should be about 1/2 inch below the top of the overflow pipe, or align with the marked "full" line inside the tank.
