How to Troubleshoot a Cutting Torch
- Step 1. Inspect the acetylene and oxygen tanks to ensure they are full and that the valves are open. Inspect the...
- Step 2. Inspect the top and bottom portion of the torch for any damage such as cracking or breaks. Check the threads...
- Step 3. Open the acetylene knob on the base torch handle by turning it counterclockwise. Ignite the...
How do you fix a broken cutting torch?
Reassemble the top and bottom portions of the cutting torch. Screw the mounting nut to the top portion of the torch until it is hand tight, then use the wrench. Screw the acetylene hose and the oxygen hose back to the bottom of the torch. Reattach the acetylene and oxygen hoses to the pressure gauges on each supply tank.
How do I replace the acetylene and oxygen hoses on my torch?
Screw the acetylene hose and the oxygen hose back to the bottom of the torch. Reattach the acetylene and oxygen hoses to the pressure gauges on each supply tank.
How do you tighten the tip of a torch?
Reassemble the torch tip with the tip nut. Tighten the tip nut clockwise. Reassemble the top and bottom portions of the cutting torch. Screw the mounting nut to the top portion of the torch until it is hand tight, then use the wrench. Screw the acetylene hose and the oxygen hose back to the bottom of the torch.
How do you mount a cutting torch to a table saw?
Reassemble the top and bottom portions of the cutting torch. Screw the mounting nut to the top portion of the torch until it is hand tight, then use the wrench. Screw the acetylene hose and the oxygen hose back to the bottom of the torch.
What is the green hose on a torch?

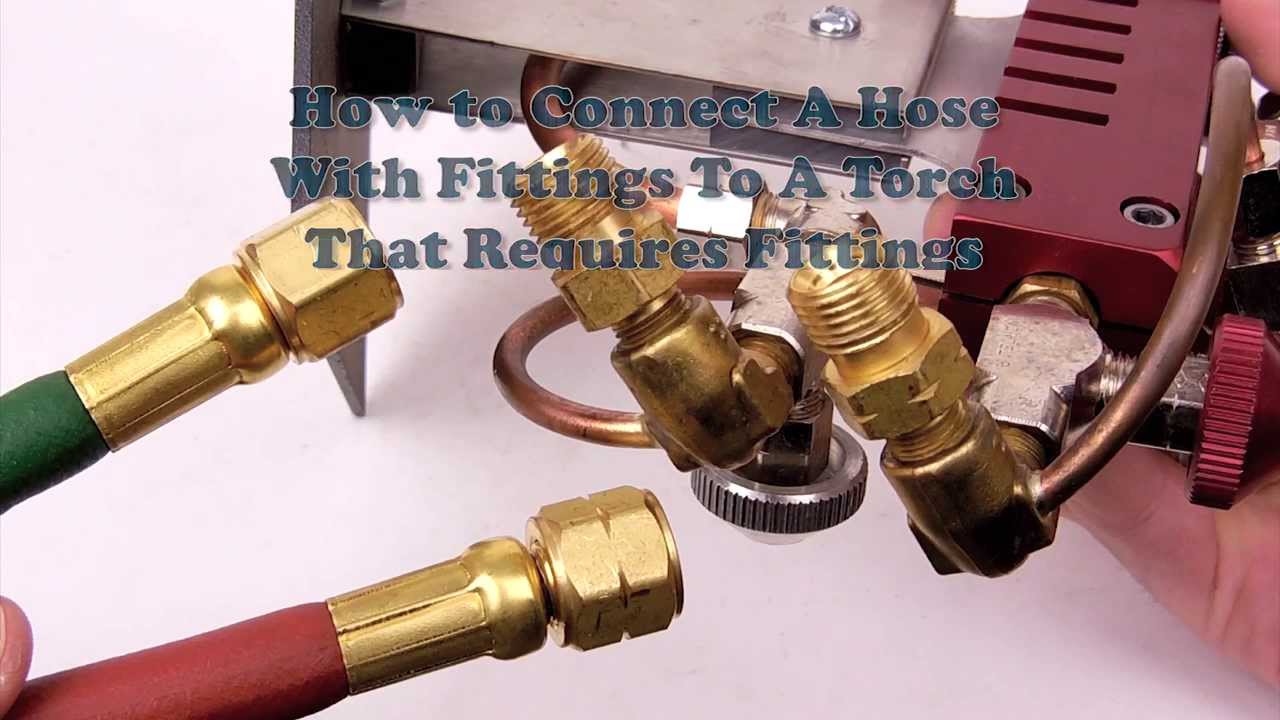

green oxygen hoseThe green oxygen hose uses regular right hand threads. The red fuel gas hose uses left hand threads. For torches that use hose barbs to connect the hoses, split the two hoses apart to about 8" (20 cm) from their cut end. The red fuel gas hose connects to the hose barb that leads to the torch's red gas valve.
What size cutting torch hose do I need?
Hose Size: The I.D. (internal diameter) of hose used for most welding and cutting purposes ranges from 3/16-in. to 3/8-in (4.8 to 9.6 mm). When the length of hose required between regulator and torch is not more than 25 ft., 3/16- in. hose is adequate for all welding, and for most cutting and heating.
What type of hose is used for acetylene?
There are two grades of welding hose for acetylene. Grade R hose is the most popular and cheapest. Grade R is only for acetylene. The tube and cover are not flame or oil resistance.
What is the color coded of oxygen and acetylene hoses?
A blue color indicates the hose as suitable for use with oxygen, and a red hose is used for acetylene and other fuel gases.
What pressure should I set my cutting torch?
Recommended oxy/acetylene cutting tip pressures vary with size. If you have no manufacturer setting- information, and are cutting less than 1 ½” thick steel, set the acetylene regulator for 10 psig, and the oxygen regulator for 40 psig.
What does an acetylene hose nut have?
The fuel gas (acetylene) hose nut has an identifying groove cut into it. It also has a left-hand thread to prevent the accidental interchanging of oxygen and acetylene hoses.
Can you use propane in acetylene hose?
You WILL need to change your Acetylene Hose to a Propane Hose (including for Propylene). You will need to check the label on your Flash Arrestor, if it says “Fuel”, it's OK to use with Propane & Propylene. If it says “Acetylene” you will need to change it for a “Fuel” type.
What is the max pressure for acetylene?
Maximum pressure. Under no condition shall acetylene be generated, piped (except in approved cylinder manifolds) or utilized at a pressure in excess of 15 psig (103 kPa gauge pressure) or 30 psia (206 kPa absolute).
Can I use acetylene hose for Argon?
Gas Welding Hose is used in the welding industry for transferring Acetylene, Argon, Oxygen, Propane gases under pressure.
What is green hose used for?
Green hose is used for carrying oxygen, and red hose is used for carrying acetylene. Bulk welding hoses are used to create custom hoses for welding applications. Cut these hoses to the desired length and add compatible hose fittings on the ends of the hoses to connect them to equipment.
What are red hoses used for?
In this case, the oxygen hose is invariably green, and the fuel hose is always red. The types of fuel used vary but the most commonly used are propane and acetylene. Natural gas, methylacetylene-propadiene (MAPP), and propylene are also used.
Can an oxygen hose be black?
(2) The generally recognized colors are red for acetylene and other fuel-gas hose, green for oxygen hose, and black for inert-gas and air hose.
What size are B fittings?
Oxygen Adapter - "B" Size Female to 1/4" NPT Female.
What size tip is recommended to cut the 1/4 in metal?
Types: 100, 101, 104, 108, 110, 111, 112, 129 ( Oxy-Acetylene )Metal ThicknessTip SizeCutting Oxygen ( SCFH )1/8"00020 / 251/4"0030 / 353/8"055 / 6013 more rows
How do you identify the fuel gas fittings on the torch?
Fuel is left hand thread, and the nuts have hash marks across the corners to identify them. Oxygen fittings are right-hand thread and have no marks on the nuts.
What is the hottest cutting torch?
The hottest most-versatile gas, acetylene, is very easy to use for all purposes. Pre-heat time for cutting and gouging is relatively short because the flame temperature is between 5,600 and 5,800 F. However, this gas is the most expensive gas available and is not the most efficient for heating large areas.
What is the purpose of a cutting torch?
The purpose of a cutting torch is to cut through various sizes of metals. Most torch problems and complaints come from the torch tip and from the O-rings that seal the nuts. Over time, the ports inside the tip will develop blockage from metal particles and other debris and the O-rings will wear out. The torch can also malfunction ...
How to disconnect the top half of a torch from the bottom half?
Disconnect the top half of the torch from the bottom half by turning the screw-on nut counterclockwise. Pull the two sections apart. Look to see if the nut has an O-ring. If so, check the condition of the O-ring and replace if necessary.
How to reattach oxygen hose to pressure gauge?
Reattach the acetylene and oxygen hoses to the pressure gauges on each supply tank. Tighten the nuts, then open the valves to both pressure gauges. Turn the acetylene knob and light the tip of the torch with the striker. Test-cut a piece of metal to ensure that the torch is working properly .
How to check if a torch tip is clogged?
Check the torch tip for clogged ports. Brush the torch tip thoroughly with a wire brush to remove any debris or metal particles. If the torch tip is warped or flattened on the end, replace with a new tip.
What happens if the tip of a torch is clogged?
If the port holes are clogged, it will prevent the proper amount of acetylene and oxygen from flowing out of the torch tip. Advertisement.
How to check oxygen tank pressure?
Step 1. Inspect the acetylene and oxygen tanks to ensure they are full and that the valves are open. Inspect the pressure gauges on top of the tanks. The gauge reading will show you how much pressure is coming out of each tank and into the torch lines. If the gauges are working, the gauge needles will be positioned over a pressure amount number. ...
Special offers and product promotions
Create your FREE Amazon Business account to save up to 10% with Business-only prices and free shipping.
Have a question?
There was a problem completing your request. Please try your search again later.
Product description
The Forney 60326 Oxygen Acetylene Hose Repair Kit includes 2 barbed hose nipples, 2 hose ferrules, 1 each oxygen and acetylene 9/16-Inch-18 hose nuts and "B" fittings. Forney Industries is one of America's longest operating family-owned metal working product companies.
