How To Fix A Bad Fan Clutch?
- Make the fan spin. Although certain electronic fans may freewheel, many fan’s clutches typically spin with some strain.
- Move the fan around. Try pushing and pulling the fan back and forth. ...
- Look for leaks. ...
- Examine the fan’s speed. ...
- Use a scanner. ...
Full Answer
How much does it cost to replace a fan clutch?
When labor is factored in, the costs can be between $285 to $500 to replace the fan clutch only, depending on your geographical location, the car you drive and mechanic you choose. These prices, as indicated below, can increase, if the components causing the fan clutch to fail need to be replaced.
How much to replace the fan clutch?
What common symptoms indicate you may need to replace the Fan Clutch?
- Vehicle is overheating or not cooling sufficiently
- Rattling or vibrating in the engine compartment
- Scraping or clicking noise coming from the engine compartment
How do I remove the fan clutch?
- Loosen the fan clutch-mounting shaft from the water pump hub.
- Loosen the fan shroud from its radiator mounting and remove the lower hose from the shroud.
- Lift the fan and clutch assembly and the fan shroud from the vehicle.

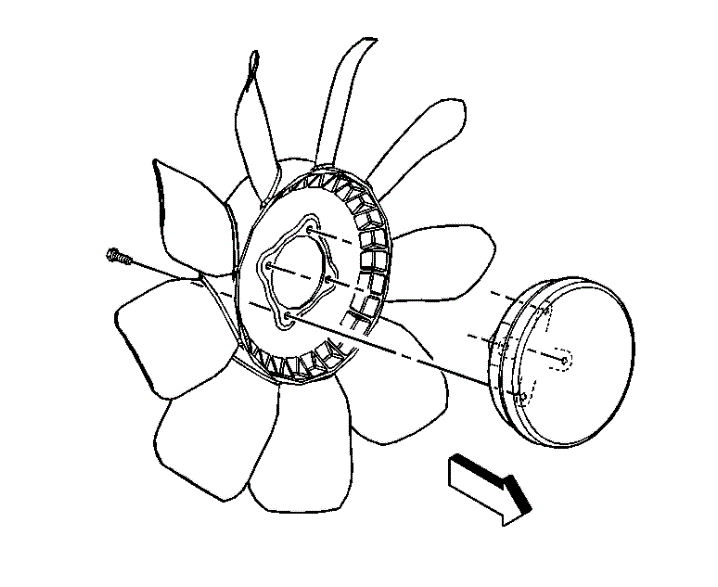

- If necessary, remove the fan-to-fan clutch retaining bolts and separate the fan from the fan clutch. ...
How does check fan clutch for proper operation?
When the engine is off, there are a few things you can do to check the fan clutch:
- Spin the fan. Electronic types might freewheel, but most fan clutches should spin with a little effort. ...
- Wiggle the fan. Try moving the fan forward and backward. ...
- Inspect for leaks. The key to fan clutch function is its heavy silicone oil, whose viscous properties allow for soft engagement to drive the fan. ...
- Check fan speed. ...
- Scan tool. ...
How do you temporarily fix a fan clutch?
4:024:39How to fix a fan clutch - YouTubeYouTubeStart of suggested clipEnd of suggested clipJust using PB Blaster. On the inside of here and try to manually turn. It. Turn that Valve with aMoreJust using PB Blaster. On the inside of here and try to manually turn. It. Turn that Valve with a pair of needle nose pliers. And free it up a little bit and you'll have a nice working clutch again.
How do you manually engage a fan clutch?
1:264:26Manual Fan Clutch Adjustment // How-to-Tutorial - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo now I add the fan clutch off I'm going to show you how to adjust it manually. And the operationMoreSo now I add the fan clutch off I'm going to show you how to adjust it manually. And the operation is quite simple this spring heats up or the hot air flowing through the radiator.
What are the symptoms of a failing fan clutch?
How to Tell If Your Fan Clutch Is Going Bad?Vehicle overheating. An overheating engine is often the first symptom that is commonly associated with a bad or failing fan clutch. ... Loose and Wobbling Fan. ... Excessively loud cooling fans. ... A decrease in acceleration, power & fuel efficiency.
How do you free a stuck fan clutch?
0:015:08Remove stuck fan clutch make your own tool - DIY Auto MechanicsYouTubeStart of suggested clipEnd of suggested clipJust a quickie here for you today I wanted to show you just one way that you can get a fan clutchMoreJust a quickie here for you today I wanted to show you just one way that you can get a fan clutch off of a pretty much any engine.
Should a fan clutch spin freely when hot?
Should the fan clutch spin freely when hot? When the clutch is hot, it should engage with the drive portion and become immovable by hand. If your clutch is spinning freely when the engine is hot, that means that the clutch failed in the closed position.
How do you test a fan clutch?
To confirm the diagnosis, start with this simple test: Spin the fan as hard as you can on an engine that has not been started that day. If the fan rotates more than five times, you can bet the clutch is bad. You should feel some resistance and the fan may spin up to three times, depending on the ambient temperature.
Can fan clutch affect AC?
Absolutely, a bad one can damage your air conditioning system, as it acts as a heat exchanger for the air conditioning unit. The engine fan keeps the condenser cool which helps to keep the convertible's AC system running smoothly.
How much is a new fan clutch?
Depending on your vehicle's make, model, and year, a fan clutch replacement might cost you anywhere from $200 to $400. For everything you need to know about replacing your fan clutch, look no further than the car insurance super app Jerry.
Should I replace my fan clutch with water pump?
A proper water pump replacement should include a new fan clutch as the two are connected to the same shaft and work together to move the air and cooling fluid. Replacing one without the other can damage the new part and cause repeat work or engine trouble.
How do you remove a fan clutch without tools?
1:063:47How To Remove A Clutch Fan Without Special Tools! - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd what i'm going to do is use the mallet. And just tap down on top of the wrench and then thatMoreAnd what i'm going to do is use the mallet. And just tap down on top of the wrench and then that should shock it. Off. Of course while pushing on the wrench to rotate. It clockwise and there we go.
When should I replace my fan clutch?
According to Hayden, here are some signs your fan clutch might need replaced:Fan spins excessively when engine is stopped (three or more times when hot engine is shut off).Poor A/C performance at idle or low vehicle speeds.Fan speed does not increase when engine is hot.More items...•
How do you clean a clutch fan?
0:071:33BMW Radiator Fan / Clutch Cleaning : Outtake Reel /// 330i (E46) - YouTubeYouTubeStart of suggested clipEnd of suggested clipLooks alright little dirty but I'll go ahead and clean this part too but front size definitely hasMoreLooks alright little dirty but I'll go ahead and clean this part too but front size definitely has to be. Cleaned. I'm just using some hot water and some.
What temperature does a fan clutch engage?
about 170°FAt what temperatures do fan clutches engage? Answer: Most fan clutches engage at about 170°F air temperature (about 180-190°F engine temperature). They reduce the temperature about 20°F before disengaging.
How do you test a clutch fan solenoid?
An easy test for the function of the solenoid only is to start the truck, let it run and wait for the fan to disengage when air pressure builds to normal. If you then shut the truck off, which kills power to the solenoid, you should immediately hear the solenoid vent the air that is in the line going to the clutch.
