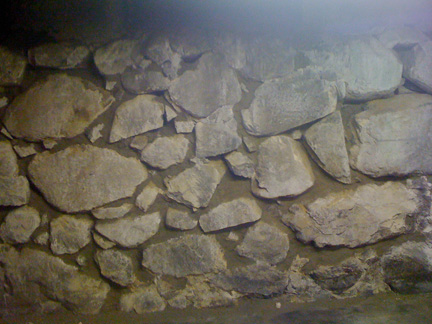

how to repair fieldstone foundation

by Devyn Aufderhar Published 3 years ago Updated 2 years ago

Steps:

  1. Fill a plant mister with water and spray the mortar to keep down the dust.
  2. Use a mason's hammer and pointed trowel to chip and scratch out the old, loose mortar from between the stones. Remove at least 2 inches of the old mortar.
  3. Pull out all fiberglass insulation and loose debris found along the top of the foundation wall.
  4. Use a soft-bristle brush to sweep all dust and dirt from the raked-out mortar joints.
  5. Dump a bag of Type S masonry mortar onto a mixing tarp. Hydrate the mortar with a little water and one-half gallon of bonding agent.
  6. With the aid of a helper, grab the handles on the tarp and slowly roll the mortar back and forth until it's thoroughly mixed.
  7. Scoop some mortar onto a mortar hawk. Use a pointed trowel to scrape the mortar off the hawk and into the joints between the stones. ...
  8. If a space between foundation stones is wider than 3 inches or so, fill it with mortar and then press a small rock firmly into the mortar to fill ...
  9. To replace large stones that have fallen from the wall, lay down a thick bed of mortar and set the stone in place. Pack more mortar around the stone.
  10. After filling all the joints, let the mortar set up for about an hour. ...

Part of a video titled How to Repoint and Prevent Further Damage to a Fieldstone ...
4:42
9:47
We want to use the type n mortar because it's a little softer. And it's going to allow theMoreWe want to use the type n mortar because it's a little softer. And it's going to allow the fieldstone foundation to move a little.

How do you fill in cracks in a fieldstone foundation?

Use a margin trowel to push the mortar off the cement finishing trowel and deep into the joints of the fieldstone foundation. Put the small stones back in where there are really large areas to fill in. Do this until all the joints are filled with mortar and small stones.

How do I upgrade my field-stone foundation?

While upgrading your field-stone foundation, only work on a section at a time. Do not remove the old mortar throughout the entire basement all at once. Complete all removal, tuck pointing and parging one section at a time. To avoid annual tuck pointing, you should finish the foundation with a complete top coating of mortar.

Can an old stone or fieldstone foundation home be repaired?

Just like any structure, an older home built more than 100 years ago is going to need various maintenance and repairs. This is especially true of stone or fieldstone foundation homes that are commonly found throughout Pittsburgh and the surrounding area. We at Baker’s Waterproofing have repaired many old homes over the years.

How do you mix mortar for a fieldstone foundation?

Using a separate bucket, mix the mortar, water, and the bonding agent. Holding the cement finishing trowel upside down, plop some mortar on its blade. Use a margin trowel to push the mortar off the cement finishing trowel and deep into the joints of the fieldstone foundation.


How long do fieldstone foundations last?

Don't be afraid of a fieldstone foundation. They are structurally fine and can last 100's of years.

How do you fix a crack in a stone foundation?

Work with a mortar mix that is appropriate for the repair: a lime mortar for the exterior and a cement mortar can interior crack repairs. Add the recommended amount of water, per the manufacturer's directions, and mix the mortar thoroughly with the trowel.

How do you Parge a fieldstone foundation?

0:001:10How To Parge Internal or External Stone or Brick Foundation - YouTubeYouTubeStart of suggested clipEnd of suggested clipOn your foundation wall if you have very deep voids. You can fill them if you can go in in advanceMoreOn your foundation wall if you have very deep voids. You can fill them if you can go in in advance with the one part tak through the three parts ecologic. And you can spring.

How do I fix my sinking stone foundation?

1:163:57Raising a sinking stone foundation - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd just dig to get forty nine inches below the bottom layer of stone there's no footing on these.MoreAnd just dig to get forty nine inches below the bottom layer of stone there's no footing on these. So. We we make sure we're extra careful we keep the stone properly supported so it's not just fallen.

What is the best foundation repair method?

Foundation Repair Method #1: Sealants and Masonry Patches Cracks in the foundation can sometimes be repaired by patching the crack and covering it with a waterproof masonry sealer. Spotting and repairing cracks early on is important because your foundation supports your entire house.

How can I fix a crack in my foundation myself?

1:344:50How To Fix a Concrete Foundation Crack | This Old House - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo what ryan's going to do now is he's going to butter up the back of these things. And then he'llMoreSo what ryan's going to do now is he's going to butter up the back of these things. And then he'll be able to surface apply right over that crack that you see there on the wall.

What can I use instead of parging?

You can use acrylic stucco as a viable option for parging over concrete foundation walls. However, not all concrete foundation walls can effectively be parged using acrylic stucco. This kind of parging system comprises the last three layers Exterior Insulation and Finish Systems, commonly referred to as EIFS.

Can you Parge a stone foundation?

Most stone foundations have a mortar coating on the interior. Moisture migration will inevitably cause the mortar to flake off and expose the stones. When this occurs, re-pointing or parging is needed. If enough of the old mortar falls out between the rocks, they will start shifting around.

Can quikrete be used for parging?

QUIKRETE® Water Resistant Parging Mix (115525) is a Masonry coating and patching of concrete walls for cosmetic. Used For: Concrete block. Concrete & masonry walls.

Can you pour concrete over stone foundation?

You can add more stone, concrete block or poured concrete to the top of it to give you a perfectly flat and square new foundation. There are many ways to repair a stone foundation or add to it, but I prefer to use concrete block for the task.

Can you use Drylok on stone foundation?

For brick, stone, and concrete surfaces, exposure to moisture can be damaging, if not immediately then gradually and inevitably. Fortunately, it's easy to protect masonry surfaces—and the interior of your home—with a waterproofing treatment from DRYLOK.

What is a fieldstone foundation?

Fieldstone and limestone foundation walls are the most common foundations found in homes that are approximately 100 years old or older. They were constructed by using mortar to bond the stones together as the stones were stacked.

Can a cracked foundation be fixed?

Foundation cracks are repaired using various methods, including underpinning with push piers, helical piers, drilled concrete piers, or slab piers. Wall cracks can be repaired directly using wall anchors, carbon fiber wall straps, epoxy, and steel I-beams.

How do you seal cracks in the outside of a foundation?

1:033:25Fixing Foundation Cracks From The Outside: How It's Done - YouTubeYouTubeStart of suggested clipEnd of suggested clipCrack now the first thing we need to do when we're fixing an exterior foundation crack is dig outMoreCrack now the first thing we need to do when we're fixing an exterior foundation crack is dig out the area once we dig out the foundation wall we'll scrape it off with scrapers.

How do you seal a stone foundation?

1:054:25How to Waterproof Leaky Stone Foundations - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd we need to install a vapor barrier. And there's a number of different options that could beMoreAnd we need to install a vapor barrier. And there's a number of different options that could be installed on a stone wall.

What do you fill foundation cracks with?

Cracks wider than a hairline can be filled with polyurethane, silicone, or latex concrete caulk. Use a caulking gun to force the caulk into the crack along its entire length.

What type of mortar is used to repoint a fieldstone foundation?

To repoint the fieldstone foundation, Mark used a Type N mortar, manufactured by Quikrete. In general, Type S mortar is used for structural or foundation work, but Mark finds that the Type N works better in this application because it’s softer and will accommodate some movement in the foundation.

What cement modifier is used to repoint a foundation?

To help the mortar bond better with the stones, Mark also added C-21 All Acrylic cement modifier admix, which is manufactured by Silpro. The other tools Mark used to repoint the foundation, including the buckets and trowels, can all be found at home centers and masonry supply stores.

How to keep water from coming in the house?

Address any water issues on the outside of the house to prevent additional water from coming in. Dip a masonry brush in a bucket of water and dampen the mortar and stones that are going to be repointed to keep the dust down. Use a pickax or another sharp tool to pull the existing mortar from between the stones.

How to replace loose stones?

Use your trowel to spread a thick layer of the wet mortar in the areas where you removed the loose stones. Replace the stones and apply mortar to the areas around the stones, smoothing the surface with the trowel. Should any stones be missing, fill the gaps completely with mortar.

What are the problems with stone foundations?

The problem with stone foundations is that large stones are essentially cobbled together with mortar. Over time, the stones can come loose and even fall out of place. The mortar can crumble as well. That leads to a host of problems including sagging, buckling floors, and water leaking into the foundation.

Why do modern homes have stone foundations?

Even modern homes may have stone foundations because in addition to providing strong structural support for a home, they have a distinct, old world charm to them.

Can you repair a stone foundation yourself?

Water leaks can cause even more structural damage and mold. If you’ve noticed any of these problems in your home, the good news is that you can repair a stone foundation yourself, although it is rather labor intensive. Read the steps below to find out how.

What happens when you replace a stone that has loosened?

To replace a stone that has loosened, cracked, broken, or chipped, chisel away the mortar from around the stone until it can be removed from the wall.

What does it mean when a mortar cracks?

cracks in the stone or mortar. Keep in mind that cracks in the stone or through the mortar usually mean that there is an underlying problem causing the cracks. In this case, you'll have to address the cause before repairing the cracks.

What is vapor barrier?

Vapor barrier. When discussing foundation, it generally refers to the main part supporting a building. The structural condition of the foundation of a house can easily dictate the overall soundness of the entire structure. Problems originating in the foundation will inevitably travel upward, which can lead to something as simple as cracks in ...

Why is it important to know what rock you have?

Knowing what rock you have is crucial because the expansion and contraction rate is different from stone to stone. This is also the case with the mortar to be used for the repair. Expansion and contraction will affect the mortar, so it also has to be selected for the job at hand.

What type of stone is used for foundations?

Determine the type of stone that was used to build your foundation. Three common types of stone used on foundation are limestone, sandstone, and rubble stone. Out of these three types, sandstone is the softest and rubble stone being the hardest.

What is a stone foundation made of?

If you look at your stone foundation, you will see that it is made up of numerous numerous stones held together with mortar. Stone foundations can be a strong and long-lasting, and many older homes supported by stone foundation are in great shape.

What to do if walls are bowed?

If any of the walls are bowed, you will steel beams or wall anchors to stop them from moving any further. Talk to a professional if you are not sure how this will work.

What happens when mortar is bonded to a stone?

The mortar is what has bonded the stones together. When the mortar decays around the stones, the stones get loose. When the stones get loose, the foundation is weakened and can cause structural problems in the house. Often times you will see gaps between the stones.

What is a French drain?

A French drain/drain system or sump pump is meant to remove water from under floor, not to repair a foundation leak coming through a stone foundation. There are solutions that can stop a stone foundation from leaking for as low as a tenth the cost of installing a French drain or sump pump solutions. In most cases, this solution is not the best ...

How to tell if a stone foundation needs maintenance?

When inspecting stone foundations from the interior, the telltale sign that the foundation needs some attention is a visible white power on the basement floor near the stone foundation wall.

Why do you repoint a stone foundation?

The repointing will help prevent cold air infiltration and unwanted visitors such as insects, mice, snakes, and rats. It is financially prudent to maintain your stone foundation to avoid any water problems or potential structural issues.

When were fieldstone houses built?

These houses were built between the late 1800’s and the early 1900s. Often times, these stone foundations are in need of maintenance.

What happens if a mortar joint is deteriorated?

If the mortar joints are deteriorated and the wall has developed cracks or is bowed inward, then the foundation may have to be replaced or reinforced with a new concrete wall in front of it.

Why does mortar bow inward?

The inward bowing is caused by the lateral or horizontal earth pressure pushing ...

What is a fieldstone wall?

Fieldstone and limestone foundation walls are the most common foundations found in homes that are approximately 100 years old or older. They were constructed by using mortar to bond the stones together as the stones were stacked.

Can a basement be wet?

This is usually evident as the basement area may be wet. If the mortar joints are deteriorated but the foundation wall is not cracked or bowed, and the objective is to simply extend the serviceable life of the foundation walls, then the solution may be as simple as cleaning and tuck pointing the mortar joints.

How to avoid tuck pointing?

To avoid annual tuck pointing, you should finish the foundation with a complete top coating of mortar. Be sure it is lime based. This top coat does not have to look like a stone artisan's creation: It merely has to serve the purpose of keeping the newly installed mortar in place.

Why do you need to tuck point mortar?

When this occurs, tuck pointing is needed to refill the voids where the old mortar has fallen out. It's very important that you scrape away or chip away the crumbling mortar (in between the stones) in order to establish a small cavity or key way which can hold the new mortar that is being applied.

Why do fieldstones have mortar?

Most fieldstone foundations have, or had at some time, a thin mortar coating on the face of the stone. The purpose of this coating was to assist in holding the stones in place. This thin mortar coating will inevitably flake off from any moisture migration, revealing the surface of the stones. As this coating continues to erode, ...

Can you remove old mortar from a field stone foundation?

While upgrading your field-stone foundation, only work on a section at a time. Do not remove the old mortar throughout the entire basement all at once. Complete all removal, tuck pointing and parging one section at a time. To avoid annual tuck pointing, you should finish the foundation with a complete top coating of mortar.

Can you scratch out old mortar?

It is not so much about mortar as it is about the working process. You should clean out the old crumbling mortar to make place for the new one. Remove the old mortar so that all parts are firm and nothing is crumbling - you can even scratch out a bit of the old mortar.

Can you put lime in a stone wall?

As for the mortar the lime content should not be important for the lifetime, but you can add a bit for better workability. Generally there should be no or very little lime in a stone wall.

Is lime top coat a stone artisan's creation?

Be sure it is lime based. This top coat does not have to look like a stone artisan's creation: It merely has to serve the purpose of keeping the newly installed mortar in place. It's sort of like applying a frosting to a cake.
