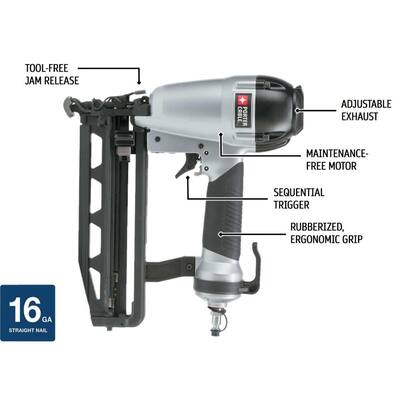

How to Troubleshoot a Porter Cable for a Finishing Nailer
- Check the power on the compressor to make certain it is plugged in and turned on. ...
- Remove the nail gun from the air hose. To do this, locate the end of the air hose where it is attached to the nail gun.
- Check the nail clip to be sure it is loaded and not stuck. ...
- Release the bottom of the clip so that the spring releases its tension. ...
- Oil the gun after completing the repair. Tip it so that the air hose fitting at the bottom is facing up and add three to four drops of ...
How to troubleshoot a Porter Cable for a finishing nailer?
[Back to top] Double Fire Double fire is usually caused by one of three things:
- The nailer is not being held down with enough pressure when the nailer is fired.
- The trigger valve is leaking and not releasing fast enough for a single shot.
- The pressure fire feature on the nose of the gun (if applicable) is inoperative. ...
How to load a Porter Cable finishing nail gun?
How to Load a Porter Cable Finishing Nail Gun
- Check that the trigger is not activated.
- Point the nose of the gun away from your body and away from any bystanders.
- Slide a new clip of finish nails through the T-shaped opening at the rear of the magazine. ...
- Pull the magazine pusher (a lever on the left side of the magazine) all the way to the rear of the magazine,and release.
How do you load a Porter Cable fn250sb nail gun?
Do not load with workpiece contact (safety element) or trigger depressed. Can you use 16 gauge nails in a 18 gauge nailer? Like 15-gauge nailers, most 16-gauge guns shoot nails up to 2-1/2 in. You'll pay about the same for a name-brand 16-gauge nailer as you would for a 15-gauge gun. 18-gauge brad nailer. If you plan to buy only one trim nailer ...
How to choose a Brad Nailer vs finish Nailer?
- Smart Point Technology: The electric brad nailer features easy nail placement as a result of a smaller nose compared to current BOSTITCH nailers and no need to compress the contact ...
- 18 gauge brad nailer drives 18 GA brad nails from 5/8-inch to 2-1/8-inch length
- Oil-free operation reduces the risk of oil stains
See more
Why is my Porter Cable Finish nailer not shooting nails?
Check the nail clip to be sure it is loaded and not stuck. Release the clip by depressing the lever on the bottom of the gun just in front of the air fitting. The clip should spring open, slide the clip down and check to see that there are nails present.
How do you fix a nail gun that won't fire?
My Nailer Won't Fire – Troubleshooting Common Causes of Jams and MisfiresClear Jams. ... Inspect Your Air Supply. ... Reload the Magazine. ... Clean the Tool. ... Replace Seals and O-Rings. ... Inspect for Damage. ... Take It to the Service Center.
How do you change the O-ring on a Porter Cable nail gun?
1:143:28Replacing the O-Ring (Porter Cable Part # 883938) - YouTubeYouTubeStart of suggested clipEnd of suggested clipWith the trigger valve assembly removed from the gun. Now I can disassemble it it's also securedMoreWith the trigger valve assembly removed from the gun. Now I can disassemble it it's also secured with a couple of roll pins. And I'll use the punch to remove them they just simply push.
How do you rebuild a Porter Cable?
For this repair, we used a Porter Cable nail gun....How to Install an Overhaul Kit in a Porter Cable Nail GunRemove the nail gun head. ... Remove the magazine. ... Remove the nose piece. ... Remove the cylinder assembly. ... Remove the piston and bumper. ... Replace the cylinder o-rings. ... Replace the piston o-ring. ... Replace the alignment ring o-ring.More items...
Can nail guns be rebuilt?
You can do the entire job yourself in about two hours and save money in the process. I'll show you how to rebuild a Bostitch framing nailer with a master O-ring kit and a trigger valve assembly. If you have a different brand, don't worry. The rebuild is similar for others.
How do you service a nail gun?
1:244:10PASLODE SERVICING VIDEOS - NAILER - YouTubeYouTubeStart of suggested clipEnd of suggested clipStep 2 cleaning hold the filter over the degreaser runoff container and degrease thoroughly hold theMoreStep 2 cleaning hold the filter over the degreaser runoff container and degrease thoroughly hold the gun with the fan blades facing up spray the fan and cylinder head with degreaser.
How do you fix a nail gun air leak?
2:3611:55How to repair a leaking air nail gun - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd around the the little bolt right here so when you if you do ever take this off and you gottaMoreAnd around the the little bolt right here so when you if you do ever take this off and you gotta reinstall. It get it tight enough just that you can still spin.
How do you install a overhaul kit on a Porter Cable nail gun?
0:2615:48How to Install an Overhaul Kit on a Porter Cable Nail Gun - YouTubeYouTubeStart of suggested clipEnd of suggested clipWe'll begin the repair with a little disassembly. I need to remove the top of the gun. The noseMoreWe'll begin the repair with a little disassembly. I need to remove the top of the gun. The nose piece on the gun. And remove the magazine away from the nose. Piece i'll start with the top.
Why is air coming out of the back of my nail gun?
If you try to fire a pneumatic nail gun or stapler, but only hear air leaking when engaging the trigger, it's likely that your tool's "O-Ring" is not sealing properly. When the trigger is not depressed, you may not hear air leaking, as the valve is probably sealed.
Where is the model number on a Porter Cable nail gun?
Porter Cable model numbers are found on the data plate or data label on the machine. This is usually located on the back or bottom of the unit.
How do you load a Porter Cable roofer nailer?
0:131:03how load a roofing nailer - YouTubeYouTubeStart of suggested clipEnd of suggested clipOver top of the stud in there. You're gonna pull them forward a little bit close the back door overMoreOver top of the stud in there. You're gonna pull them forward a little bit close the back door over the coil then you're gonna put your nails into the track putting the last nail.
Why is my Dewalt nail gun not firing?
Clear out any jams in your Dewalt nail gun. Remove the battery and the magazine and make sure there are no fasteners causing a jam in the mechanism. If you see a jammed fastener, remove it and manually push the driver blade back up. Reinsert the battery and magazine.
Why does my nail gun misfire?
The nail gun will misfire if the piston is not regularly lubricated. Unscrew the air line connector from the bottom of the nail gun with your fingers. Remove the air line hose from the nail gun. Turn the nail gun over and drip 10 drops of air tool lubricant into the air line hose hole.
How much air pressure is needed for a nail gun?
Compressor Air Requirements Specifications for air-powered nailers detail the cubic feet per minute (CFM) and pressures (PSI) needed. Minimum pressure is at least 70 psi while 90 is a more useful target level.
Why is my Paslode nail gun not firing?
Possible causes for a Paslode nail gun not firing are: A nail jam is stopping the nails from moving forward. The gas fuel cell is empty, out-of-date or not attached properly. The wrong type of Paslode nails are being used.
What is Porter Cable?
Porter Cable is a common brand of medium priced professional woodworking tools. Their familiar black and gray color scheme can be found in many carpentry shops and job sites. When troubleshooting any nail gun, the first consideration should always be safety.
How to put nails in a gun clip?
The clip should spring open, slide the clip down and check to see that there are nails present. If not, slide nails into the clip, placing them flat with the points toward the front of the gun and slide them up to the top of the clip. Slide the bottom of the clip up until it snaps into place .
How to remove nail gun from air hose?
To do this, locate the end of the air hose where it is attached to the nail gun. Pull back on the brass ring of the connector. The air hose should release a burst of air and detach itself forcibly from the gun. If it does not, the air is not reaching the gun. Check any stop valves or moisture collectors in the air line for proper function. Open closed stop valves and clean out moisture collectors.
